Attach the Wall Plate to the Wall -
Drywall Option
STEP 1
IMPORTANT: For stacking configurations, stack from the top down.
Remove the front (F) and top (T) covers from the wall plate
06
.

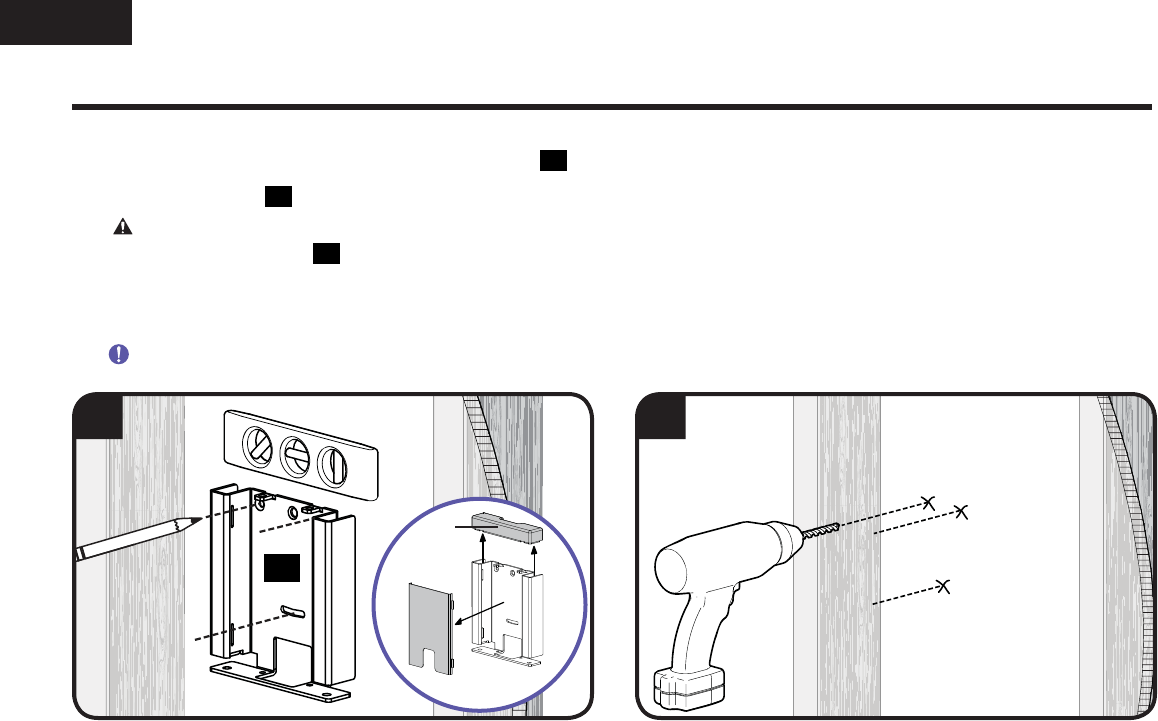

1. Level the wall plate
06
and mark the hole locations.
CAUTION:
Avoid potential injuries or property damage!
Mount the wall plate
06
directly onto the wall.
Drywall covering the wall must not exceed 13mm (1/2 in.).
Do not install anchors into the seam between drywall pieces.
2. Drill pilot holes.
IMPORTANT: Pilot holes MUST be drilled to a depth of 38 mm (1½ in.) using a 10 mm (3/8 in.) diameter drill bit.
(F)
(T)
