Installation
29
Installation
SIP classic trimstyle 1-line/2-line - S1310/S1320
Telephone base installation
The telephone base can be adapted to desktop use or mount on a standard telephone wall plate.

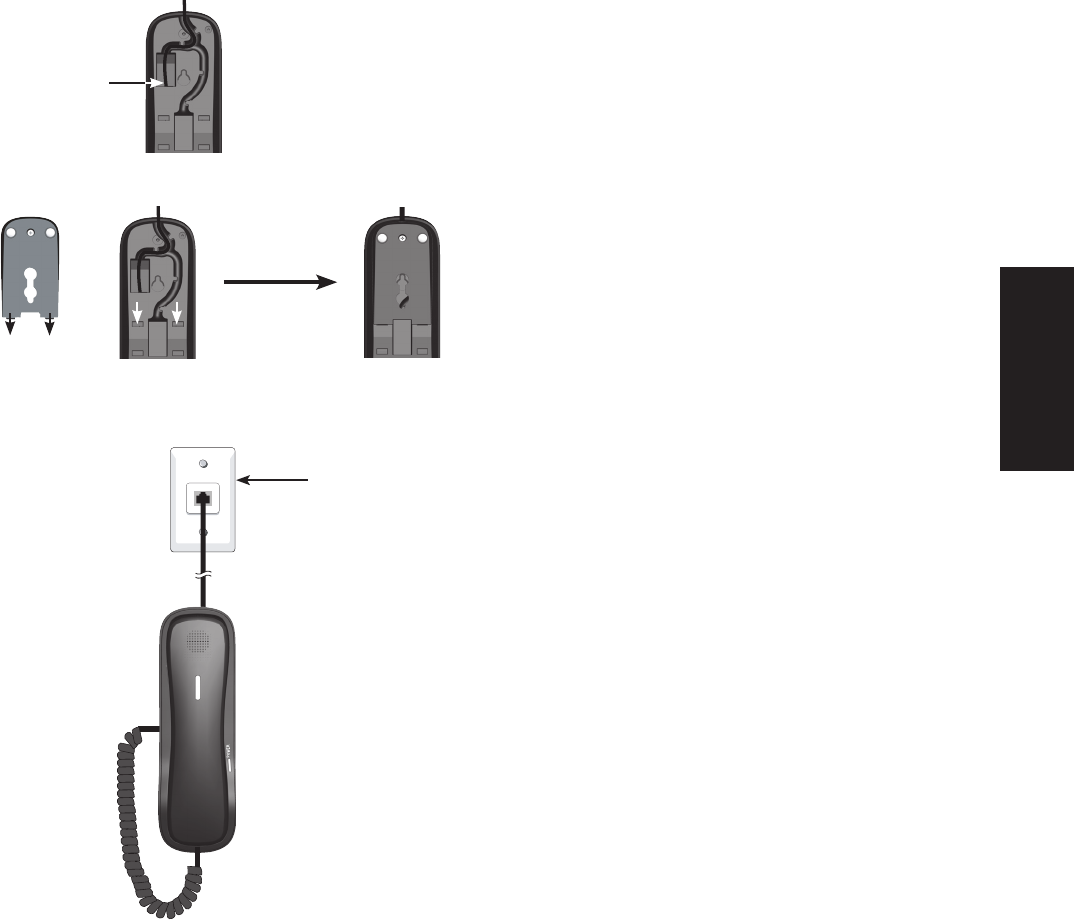

Installation option - desktop position
Turn the telephone base over with the bottom side facing up. Connect the Cat-5 network cable into the RJ-45 LAN port on the
telephone base and route through the channel as shown below.
Insert the tabs of the mounting bracket into the upper grooves at the bottom of the telephone base as shown below. Then tighten
the screw to afx the mounting bracket.
Plug the other end of the Cat-5 network cable into the network wall jack with Power over Ethernet (PoE). Then connect the
coiled handset cord to the telephone base.
1.
2.
3.
RJ-45 LAN port
Network wall jack with Power over Ethernet (PoE)
