Owner`s manual

4

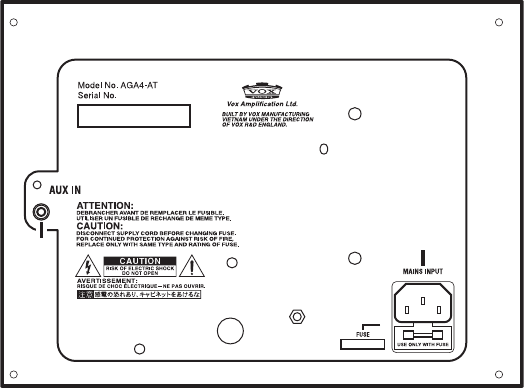

REAR PANEL LAYOUT
1
2
1. AUX IN Jack
Connectkeyboardsandaudioequipmentwithamini-phoneplug(unbalance)tothisterminal.
Adjusttheinputvolumeontheconnectedinstrument.
2. MAINS INPUT
Connectyoursuppliedmainspowerleadhere.
NOTE:UseonlythepowercablethatisincludedwiththeAGA4-AT.Usinganotherpowercablemay
causemalfunctions.
Thespecicmainsinputvoltageratingthatyouramplierneedstorunatislocatedontherearpanel
ofyouramplier.Beforemakinganyconnectionsorpoweringuptheamplier,makesurethecorrect
voltageisset.Ifyouhaveanydoubt,refertoyourlocalVOXdealer.
SPECIFICATION
Controls: Reverb,Volume,Tone
Inputs: INPUTJack,AUXINJack
Tube compliment 1x12AX7,1xEL84
Output Power: 4WRMS(16Ω)
Speaker:  6.5inches(16Ω)
Dimensions (W x D x H):
   260x195x280mm/10.24x7.68x11.02inches
Weight:  6.0kg/13.23lbs
Accessory: PowerCable,Manual
*Specicationsandappearancearesubjecttochangewithoutnoticeforimprovement.
