Owner`s manual

3
INTRODUCTION
ThankyouforpurchasingtheVOXAGA4-ATAllTubeAcousticGuitarAmplier.
TheAGA4-ATisanalltube,4-wattsinglecomboamplierspecializedforacousticguitarsandother
pickupacousticinstruments.Equippedwithanadvancedreverbeffectandtonecircuit,youcaneasily
tailoryoursound.
TheAGA4-ATisalsoequippedwithanexternalinputterminalAUXIN.Byconnectingakeyboardoraudio
equipment,youcanpracticeathomeanduseitforvariousoccasionsasaportablepublic-address(PA)
system.

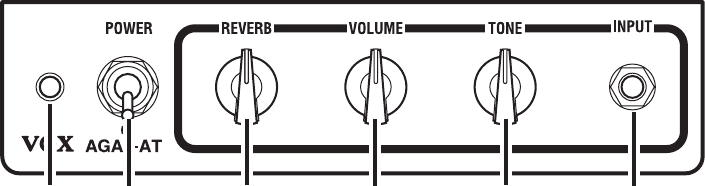

FRONT PANEL LAYOUT
5
6
3
4
1
2
1. Indicator
Thiswilltellyouifyourampisonoroff!
2. POWER switch
Thisturnstheamponandoff!
3. REVERB knob
Thisadjuststhereverbeffect.Youcandeepentheeffectbyturningtheknobclockwise.
NOTE:ThereverbeffectisnotappliedtotheinputsoundfromAUXINterminal.
4. VOLUME knob
Thisadjuststheoutputoftheamplier.
YoucanadjusttheinputsoundfromtheAUXINterminalaswellastheinputsoundoftheINPUT
terminal.
5. TONE knob
Thiscreatesavividtonequalitywhenturnedclockwise.
TheinputsoundfromtheAUXINterminalandtheinputsoundoftheINPUTterminalhavethesame
effect.
6. INPUT Jack
Connectyourguitarorotherpickupequippedacousticinstrumenthere.
