Voltsoft User Manual Version 2.8
101

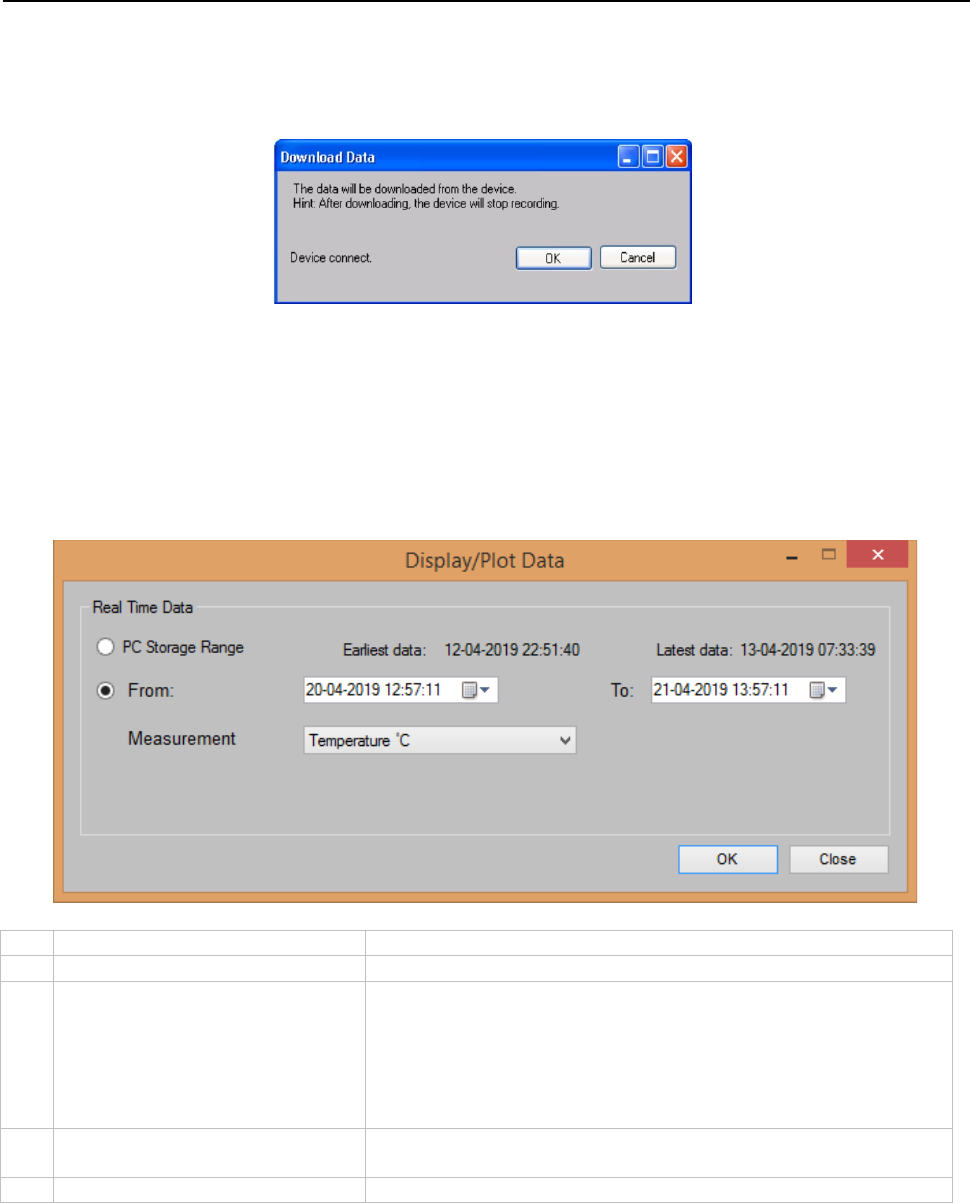

6.12.5 DL230L / DL240K - Download Data
This module allows user to download the data from DL230L / DL240K.
Click “OK” button to stop the recording and start downloading.
6.12.6 DL230L / DL240K – Display / Plot Data
This module allows user to select a range for the device readings from the device and display
them in the data tab and graph tab.
1
PC Storage Range
Download all data stored in the database.
2
Time Range
Select the data reading range.
3
Measurement
For DL230L, user can select LUX or FC record to
download
For DL240K, user can select Celsius or Fahrenheit
record to download.
4
OK
Click OK to accept the input and display the selected
reading in the data and graph tabs.
5
Close
Close this module.
The loading time will increase when more data is retrieved; therefore, the system will be
limited to return the first 100,000 records which meet your selection criteria.
