3) Vertical
The Vertical cursors appear as vertical lines on the display and measure the vertical
parameters.

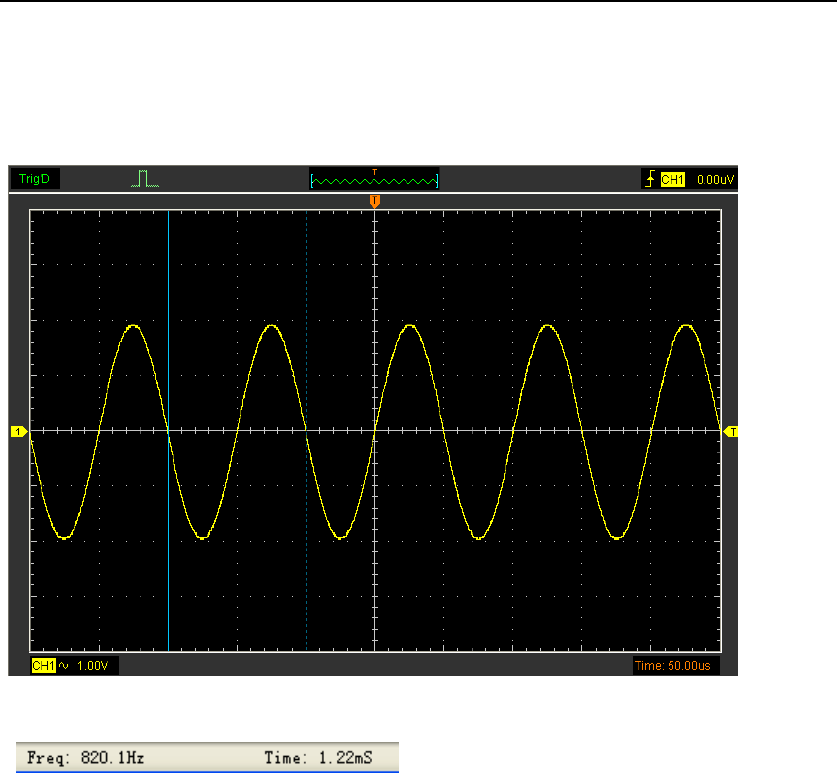

The Vertical cursor display window:
The Vertical cursor measure result display on status bar
4)Horizontal
The Horizontal cursors appear as horizontal lines on the display and measure the
horizontal parameters.
The Horizontal cursor display window:
