DSO-3004 USB Series
Digital Oscilloscope
USER’S MANUAL 25
7.Invert: Invert the selected wave.
2.4 The Horizontal System
Click “Setup->Horizontal”

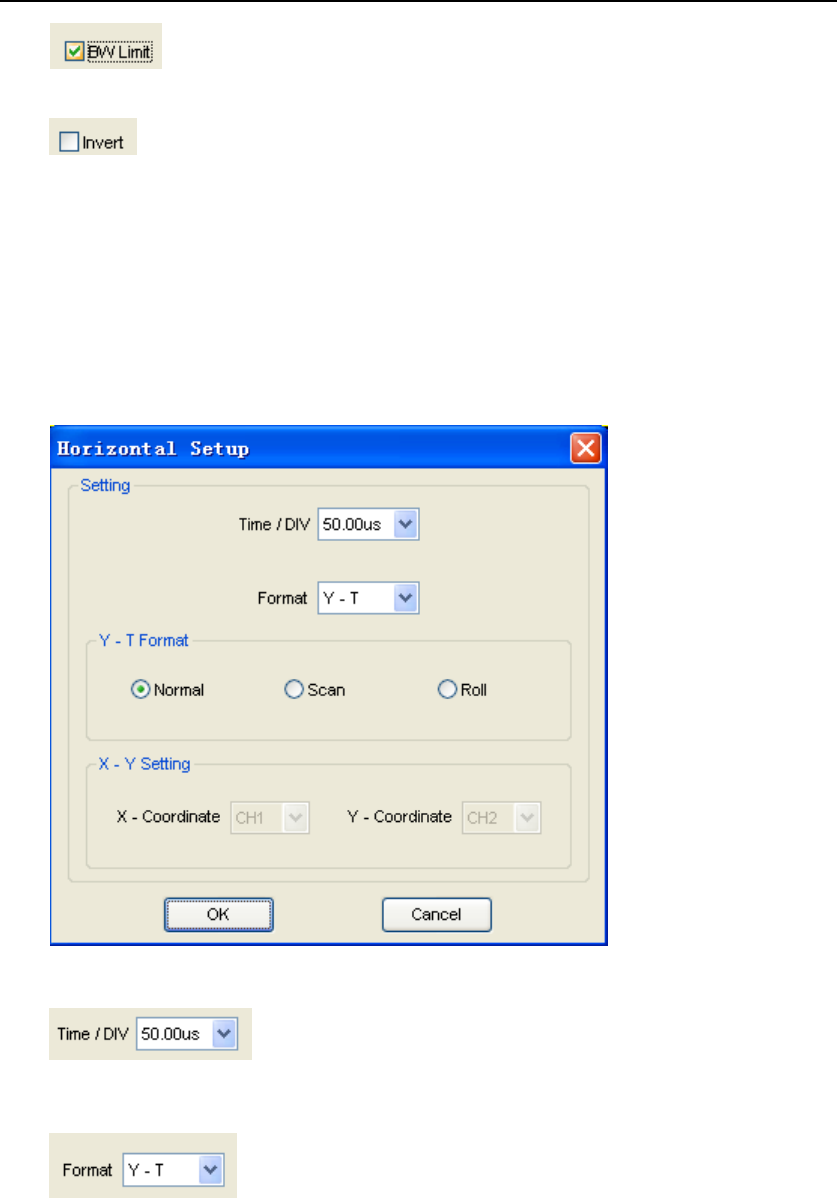

The following figure shows the Horizontal System window. It shows the horizontal
parameters settings.
1. Time/DIV: leads the setting of the time base parameters
2. Format: leads the setting of the horizontal format parameters
2.5 The Trigger System
Click “Setup-> Trigger”
The following figure shows the trigger system control.
