Readouts show the coupling of the channels.
Readouts show the vertical scale factors of the channels.
A “B” icon indicates that the channel is bandwidth limited
11. Connect
12. The markers show the CH1/CH2/CH3/CH4 reference points of the displayed
waveforms. If there is no marker,the channel is not displayed.
13. Marker shows horizontal trigger position
14. Trigger status indicates the following:
AUTO: The oscilloscope is in auto mode and is acquiring waveforms in the absence of
triggers.
Trig’D: The oscilloscope has seen a trigger and is acquiring the post trigger data.
STOP: The oscilloscope has stopped acquiring waveform data.
RUN: The oscilloscope is running.
2.2 The Menu System

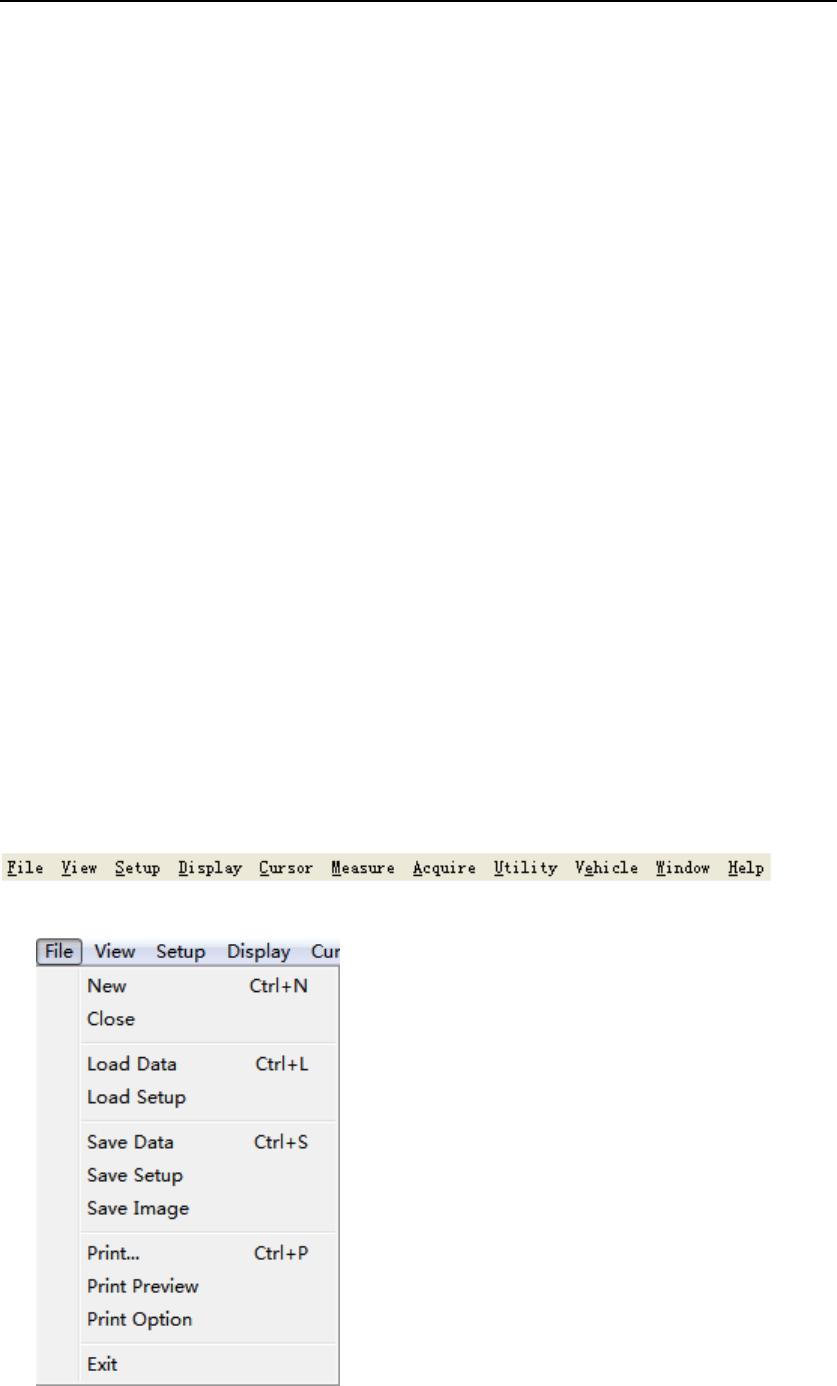

The Main Menu:
1.File: Load or Save data, setup
2.View: Change the user interface
