Zoom In/Out
The user can click “Zoom In/Out” in “Acquire” menu, then left or right click the mouse
button on display screen to zoom in/out the waveform. Also the user can change
Time/Div in Horizontal menu or in Horizontal panel to zoom in/out the waveform.
Drag

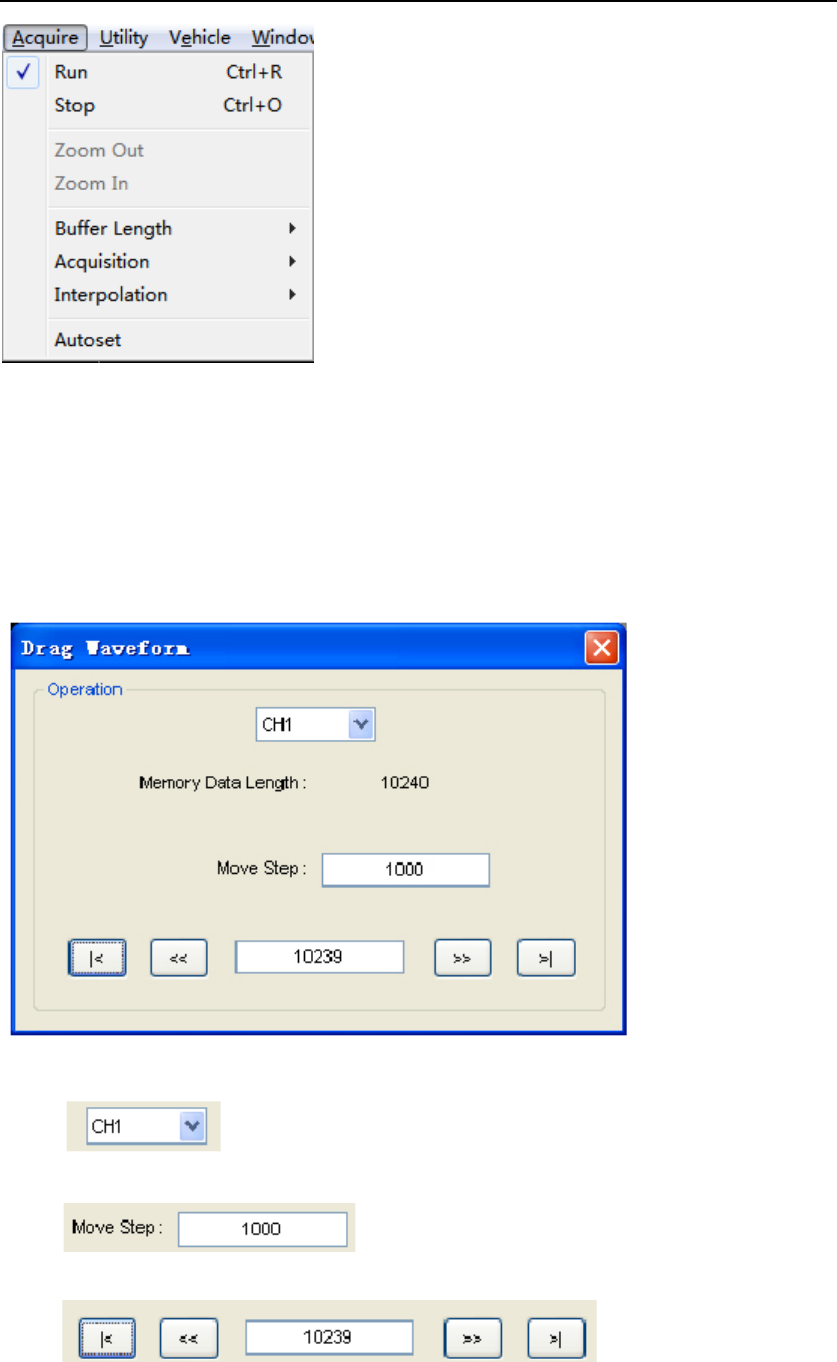

The user can modify the waveform position after clicked “Drag” in “Acquire” menu
following the following steps.
1.Select Channel:
2.Set the Move Step:
3.Change the waveform position:
