Click “Display->Intensity” in main menu.

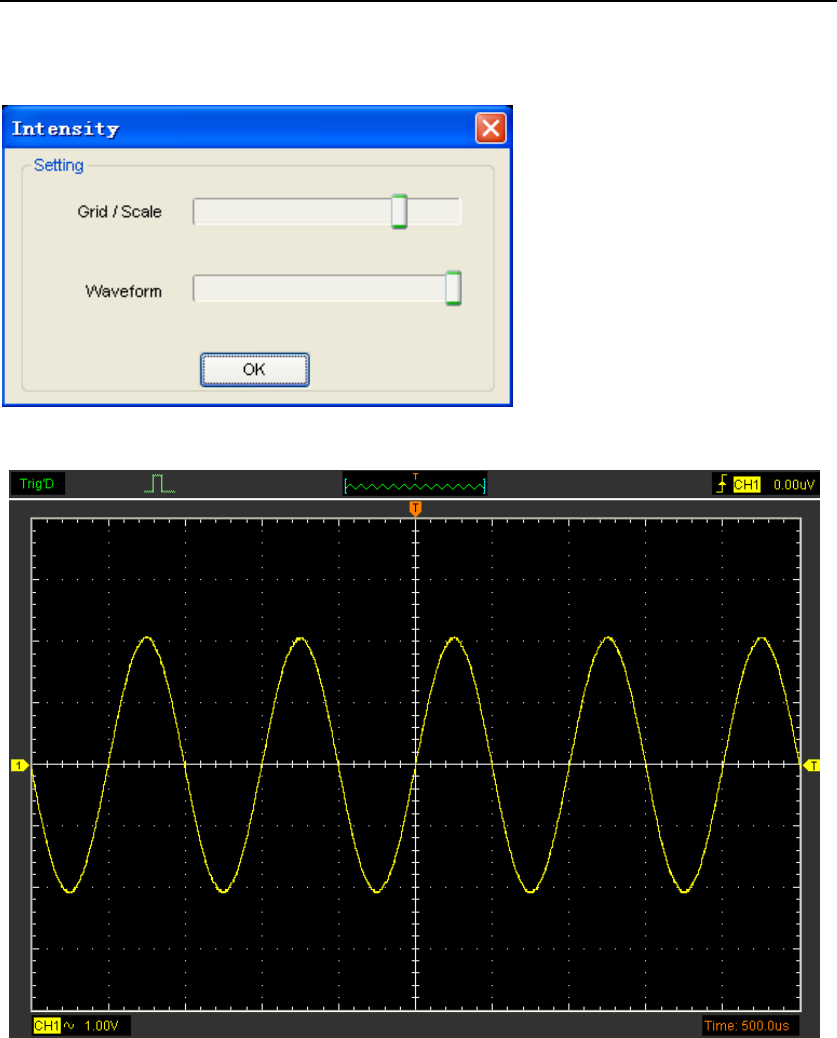

The following figure shows the intensity dialog. It shows the display parameters setting.
You can change the grid and waveform color intensity in this dialog.
3.9 Zoom In/Out and Drag Waveforms
The software will stop updating waveform after the user clicked “Stop” button.
The user can change the waveform display by adjusting the scale and position.
When you change the scale, the waveform display will increase or decrease in size.
When you change the position, the waveform will move up, down, right, or left.
The channel reference indicator identifies each waveform on the display. The indicator
points to the reference level of the waveform record.
