3.7 Measure Signal
3.7.1 Cursor Menu

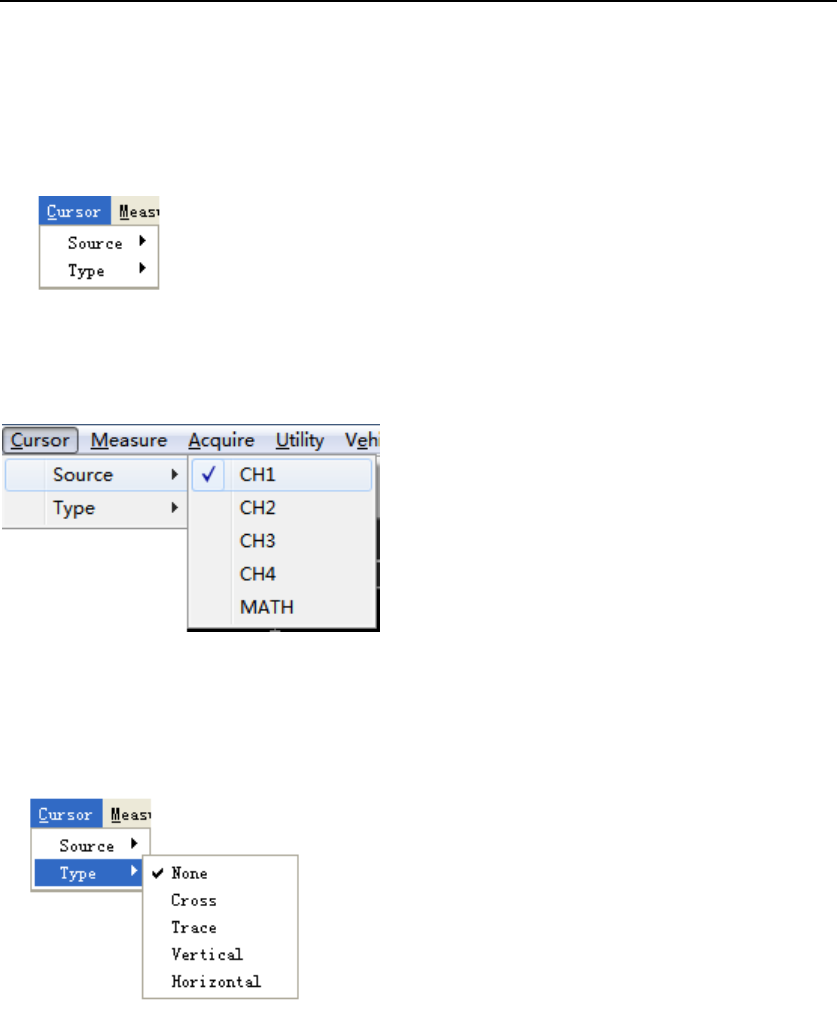

Click “Cursor” in main menu.
This method allows you to take measurements by moving the cursors
1. Source
The user can set the source to CH1, CH2, CH3, CH4 and MATH.
When you use cursors, be sure to set the Source to the waveform on the display that
you want to measure.
2. Type
There are four types of cursors available: Cross, Trace, Vertical and Horizontal
Choose “None” to close the cursors display.
1) Cross
The Cross cursors appear as cross lines on the display and measure the vertical and
horizontal parameters.
