Installation & Assembly

INSTALLATION INSTRUCTIONS
www.voltlighting.com
- 6 -

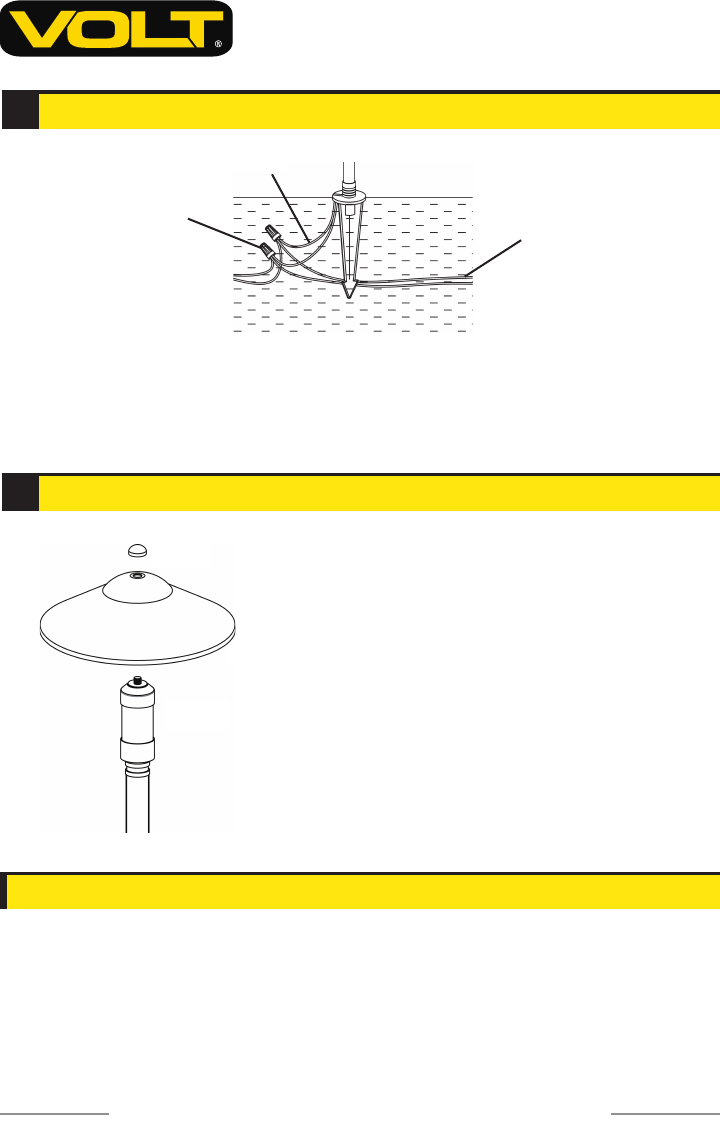

Wire Connection
6
Strip both leads from the luminaire pigtail. Using two wire connectors
(sold separately), connect the leads from the luminaire to the main
supply cable leads.
Pigtail
Main Supply Cable
Wire Connectors
Install Hat
7
Place the hat of your choice onto
the stem top and secure it with
the nial. Hand tighten until snug.
Shield
Finial
Hat of your choice
Install/Replace Bulb
Remove the nial, hat and stem top to expose the bulb. Replace it
with the correct wattage and type marked on the xture label. Then,
reinstall the stem top and hat.
IMPORTANT: Bulbs must be protected from moisture and dust at all
times. Always reinstall the stem top and hat when removed.
VOLT
®
Path & Area Light Stem
VSM-2407 & VSM-1203
