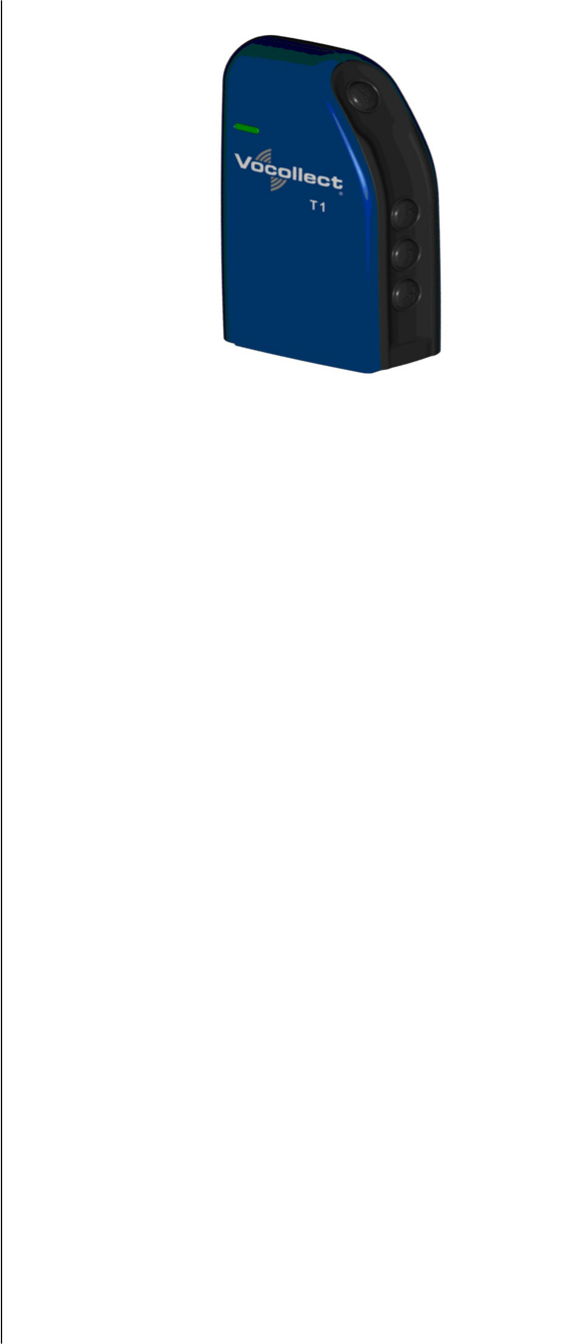

Figure 4:Talkman T1
Talkman devices are voice-directed wearable computers. The Talkman T1 has
been specifically designed for light-duty, light-industrial environments. Operators
listen to instructions to perform tasks such as warehouse order picking and
factory floor inspection, and then speak simple phrases to enter data. Talkman
T1 device is a lighter, lower-cost alternative to the T2- and T5-series wearable
computers. It is intended for work in areas where you don't require an extremely
rugged device.
Talkman T5-series and T2-series devices attach to a customized belt or shoulder
harness equipped with a specially designed clip. Talkman T1 devices are inserted
into a customized holster with belt clip. This leaves the operator's hands free to
inspect items, pick product, or repair defects. A headset with an attached
microphone allows the operator to hear the device's instructions or questions.
The operator talks to the device to request information, and enters data by
responding to the device's prompts.
A Talkman T5e Mobile Computer, External Antenna is a T5 device with a
battery adapter mounted to a warehouse vehicle, such as a forklift. After the
device is mounted, the battery adapter is placed in the battery area of the T5
device and connected to the vehicle’s power source.
• Talkman wearable computers are assembled under strict Vocollect
manufacturing guidelines. Tampering with a device in any manner will void
published operating specifications and may void the product warranty.
• Never remove the battery from a Talkman unless it has been properly
powered off.
• Vocollect designed the Talkman to be worn on the right side of the body
with the wearable computer’s buttons on the top (T5-series and T2-series)
or facing front (T1) and its connectors toward the operator’s back (T5-series
and T2-series) or pointed up (T1).
• The Talkman T1 must be holstered with the holster opening facing up.
Holstering with the opening facing down or to the side places the unit at risk
for dropping.
• When the Talkman is not in use, it should be placed properly into a charger.
• A “Proper Use and Care” document has been provided with your order which
contains important handling instructions for the T1’s headset, the SL-4. If
you do not have this document, users should contact their Vocollect Regional
