User's Manual

Charging a T5 Battery
1. Remove the battery from the Talkman wearable computer.
2. Hold the battery with its contacts to the bottom and the Vocollect label facing you.

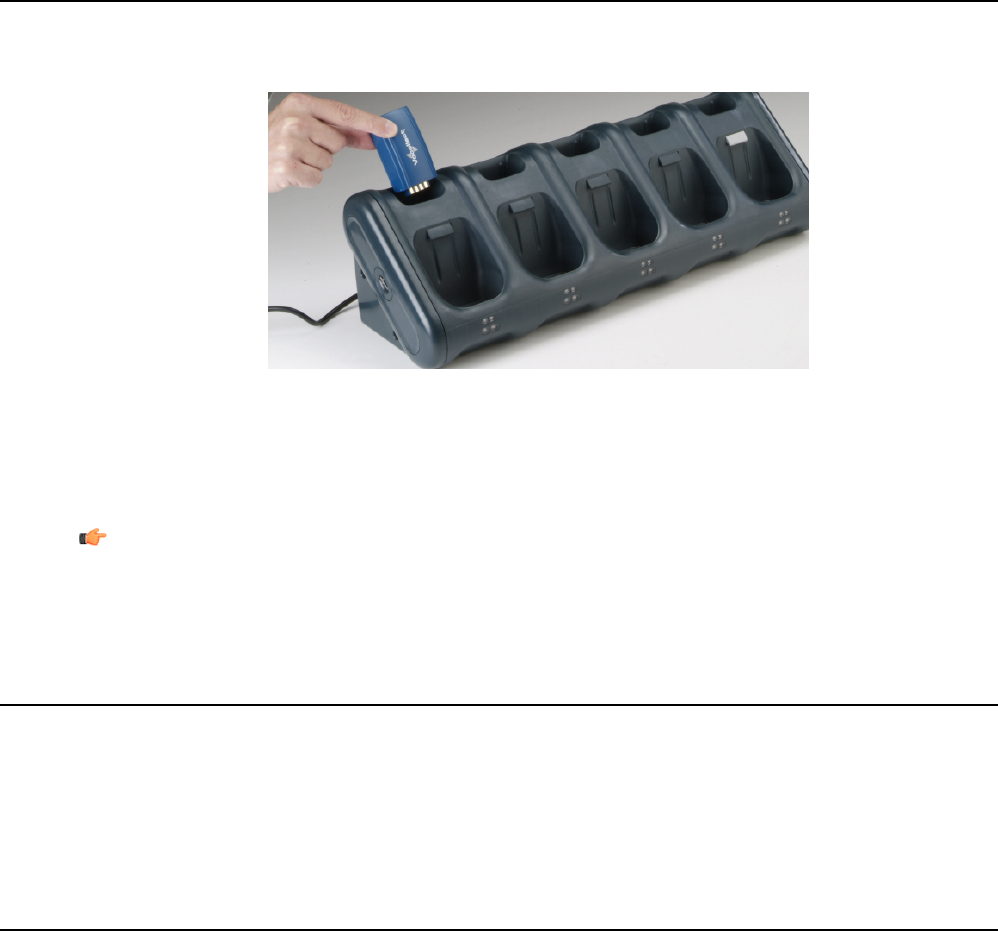

Figure 26: Inserting a Battery Into the Charger
3. Place the battery into an open battery slot on the top level of the charger.
When the battery is placed into the charger properly, the left LED indicator for the slot into which the battery was
placed turns red.
Note: The upper set of LED indicators apply to the charger's battery slots and the lower indicators apply to the
wearable computers' slots.
Charging a T1 Battery in a T1 10-Bay Combination Charger
1. Remove the battery from the Talkman wearable computer.
2. Hold the battery with its contacts to the top and facing away from you.
3. Place the battery into an open battery slot on the front of the charger.
Charging a T1 Battery with a T1 Single Charger Cable
1. Grasp and squeeze the sides of the I/O connector on the cable.
2. Attach the I/O connector onto the T1's connectors and release the I/O connector. Ensure the flush side of the I/O
connector faces front with the device’s front.
3. Insert the other end of the charging cable into the barrel jack on the plug cable.
4. Plug the charger into an electrical outlet.
