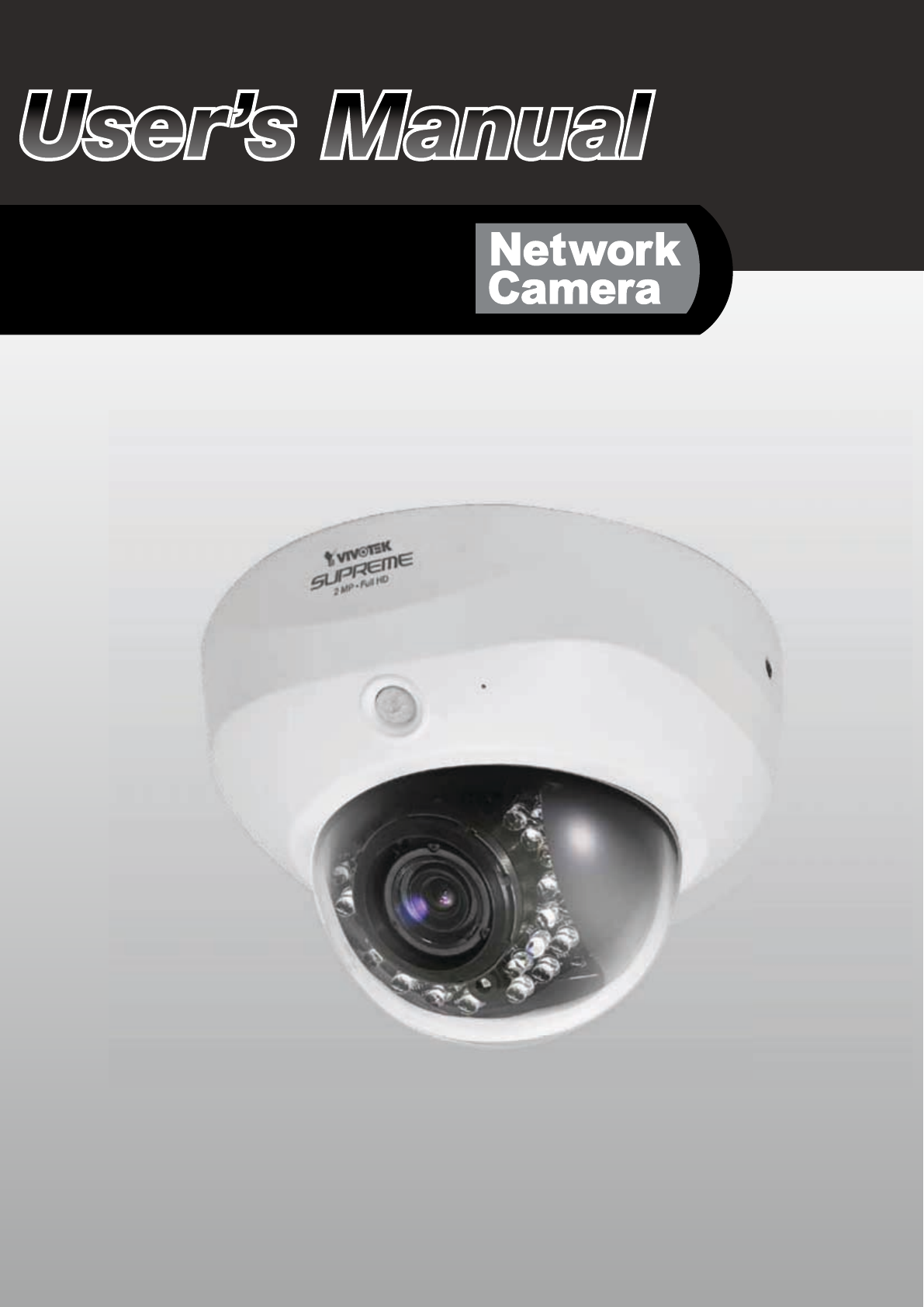

FD8162 2MP • Full HD • PIR • Focus Assist
VIVOTEK Table of Contents Overview 4 Read Before Use �������������������������������������������������������������������������������������������������������������������������������������5 Package Contents �����������������������������������������������������������������������������������������������������������������������������������5 Symbols and Statements
VIVOTEK Technical Specifications ������������������������������������������������������������������������������������������������������������������������������������� 179 Technology License Notice��������������������������������������������������������������������������������������������������������������������������������� 180 Electromagnetic Compatibility (EMC)����������������������������������������������������������������������������������������������������������������� 181 User's Manual - 3
VIVOTEK Overview VIVOTEK FD8162 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps� As a true day/night camera, the FD8162 features a removable IR-cut filter, maintaining clear images 24 hours a day� With WDR enhancement, users can identify image details in extremely bright or dark environments� It is especially suitable for monitoring wide open indoor environments such as building entrances, airports or applications requiri
VIVOTEK Read Before Use The use of surveillance devices may be prohibited by law in your country� The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system.
VIVOTEK Physical Description Light Sensor Camera Front View Black Cover Lens IR LEDs (18 units, effective up to 15m) Focus Assist Button Built-in Microphone Reserved PIR Sensor Camera Rear View Micro SD/SDHC Card Slot Reset Button Jumpers Microphone internal Video Output NTSC 60Hz external PAL 50Hz 1 2 Reset Int. AV Out Ext.
VIVOTEK Hardware Installation Before installing your camera, make sure the built-in PIR (Passive Infrared Sensor) can be directed toward the area of interest, where possible intrusion may occur� (The sensitivity of PIR sensor depends on the object size and temperature differences between the object and the background environment�) Side View Top View 50 5m 50 41 5m 41 Use the included T10 Torx screwdriver to loosen screws on the sides of dome cover to remove it� You should then jot down the MAC addre
VIVOTEK DI/DO Diagram Please refer to the following illustration for the connection method� 12V PIN 1 Power+12V PIN 2 Digital output +12V PIN 3 Digital input PIN 4 Ground Hardware Reset Reset Button Reset Int. Micro SD Card AV Out Ext.
VIVOTEK Wall Mount Ceiling Mount 1� Attach the alignment sticker to the ceilling/wall� 2� Through the two circles on the sticker, drill two pilot holes into the ceilling/wall� 3� The Network Camera can be mounted with the cable routed through the ceiling/wall or from the side� If you want to feed the cable through the ceiling/wall, drill a cable hole A as shown in the above picture� 4� Hammer the supplied plastic anchors into the holes� 5� Align the two holes on each side of the camera base with the two p
VIVOTEK Network Deployment Setting up the Network Camera over the Internet There are several ways to set up the Network Camera over the Internet� The first way is to set up the Network Camera behind a router� The second way is to utilize a static IP� The third way is to use PPPoE� Internet connection via a router Before enabling the access to the Network Camera over the Internet, make sure you have a router and follow the steps below� 1� Connect your Network Camera behind a router, the Internet environment
VIVOTEK Internet connection with static IP Choose this connection type if you are required to use a static IP for the Network Camera� Please refer to LAN configuration on page 51 for details.
VIVOTEK General Connection (without PoE) 1� If you have external DI devices, make the connection from general I/O terminal block� 2� Ethernet, power, and other cables are user-supplied� Use a Category 5 Cross Cable when Network Camera is directly connected to PC� 3� Connect either the DC or AC pins from the terminal block to a power outlet� Ethernet Switch POWER COLLISION 1 2 3 4 5 Pin3 & 4 AC 24V LINK RECEIVE PARTITION Red Software Installation Black Pin1 & 2 DC 12V Installation Wizard 2 (IW
VIVOTEK to open a browser management session with the Network Camera� Internet Explorer� 0002D107258A 00-02-D1-07-25-8A 192.168.5.
VIVOTEK Based on the live image retrieved from the camera, adjust the camera lens to the desired view angle: 1� Turn the lens module left and right� 2� Loosen the tilt adjustment screws on both sides of the camera and then turn the lens module up and down� Upon completion, tighten the screws� 3� Turn the lens to adjust the image orientation� 2 3 Tilt 65° 1 Pan 350° Rotate 350° 3-axis Mechanism Design To adjust the zoom factor and focus range 1� Loosen the zoom controller and then adjust zoom factor b
VIVOTEK 1� Align the notches on the inner side of the black cover with the rivets on the sides of the lens, and then fix the black cover.
VIVOTEK Accessing the Network Camera This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software� Using Web Browsers Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN� If your network environment is not a LAN, follow these steps to access the Netwotk Camera: 1� Launch your web browser (ex� Microsoft® Internet Explorer, Mozilla Firefox, or Netscape)� 2.
VIVOTEK NOTE: 1 By default, your Network Camera is not password-protected To prevent unauthorized access, it is highly recommended to configure a password for your camera later.
VIVOTEK 3� Refresh your web browser, then install the ActiveX® control� Follow the instructions to complete installation� Using RTSP Players To view the H�264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player 1� Launch the RTSP player� 2� Choose File > Open URL� A URL dialog box will prompt� 3� The address format is rtsp://:/ As most ISPs an
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 10� To utilize this feature, please check the following settings on your Network Camera: 1� Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authen
VIVOTEK Using VIVOTEK Recording Software The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www�vivotek�com� 20 - User's Manual
VIVOTEK Main Page This chapter explains the screen elements on the main page� It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video Window� VIVOTEK INC. Logo Resize Button Host Name Live View Window Camera Control Area Hide Button Configuration Area VIVOTEK INC. Logo Click this logo to visit the VIVOTEK website� Host Name The host name can be customized to fit your needs.
VIVOTEK Focus Assist Button: Follow the steps below to manually fine-tune the camera’s focus. 1. Manually adjust the zoom controller of the camera lens to fix the camer’s view angle. 2� Click on the “On” button of the Focus Assist function on the homepage session with the camera to start the focus assist function� The Live View window will automatically enter the full screen mode� Zoom Focus 3. The floating indicator will appear at the bottom of the screen showing the calculated focus information.
VIVOTEK Global View: Click on this item to display the Global The viewing region of the curruent video View window� The Global View window contains a full stream view image (the largest frame size of the captured video) and a floating frame (the viewing region of the The largest frame size current video stream).
VIVOTEK H�264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H�264 / MPEG-4 video streaming. For further configuration, please refer to Client Settings on page 26. Time: Display the current time. For further configuration, please refer to Media > Image > Genral settings on page 69� Title and Time: The video title and time can be stamped on the streaming video.
VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: MPEG-4 Protocol and Media Options Video Title Title and Time Time Video 17:08:56 2008/06/25 Video Control Buttons Video Title: The video title can be configured.
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings� H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options Select to stream video or audio data or both� This is enabled only when the video mode is set to H�264 or MPEG-4� H.264 / MPEG-4 Protocol Options H.
VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking page. Here, you can specify the storage destination and file name. Start MP4 Recording on the main Folder: Specify a storage destination for the recorded video files. File name prefix: Enter the text that will be appended to the front of the video file name. Add date and time suffix to the file name: Select this option to append the date and time to the end of the file name.
VIVOTEK Configuration Click Configuration on the main page to enter the camera setting pages� Note that only Administrators can access the configuration page.
VIVOTEK Advanced Mode Navigation Area Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up advanced functions, please click on [Advanced Mode] at the bottom of the configuration list.
VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off� Sync with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer� The read-only date and time of the PC is displayed as updated� Manual: The administrator can enter the date and time manually� Note tha
VIVOTEK System > Homepage layout Advanced Mode This section explains how to set up your own customized homepage layout� General settings This column shows the settings of your hompage layout� You can manually select the background and font colors in Theme Options (the second tab on this page)� The settings will be displayed automatically in this Preview field.
VIVOTEK Theme Options Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview filed.
VIVOTEK ■ Follow the steps below to set up a custome homepage: 1� Click Custom on the left column� 2� Click to select a color on on the right column� Color Selector Custom Pattern 3� The palette window will pop up as shown below� 2 3 1 4 4� Drag the slider bar and click on the left square to select a desired color� 5.
VIVOTEK System > Logs Advanced Mode This section explains how to configure the Network Camera to backup system log to a remote server� Log server settings Follow the steps below to set up the remote log: 1� Select Enable remote log� 2� In the IP address text box, enter the IP address of the remote server� 2� In the port text box, enter the port number of the remote server� 3� When completed, click Save to enable the setting� You can configure the Network Camera to send the system log file to a remote se
VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order� The access log is stored in the Network Camera’s buffer and older events will be overwritten when the number of events reaches a limit� System > Parameters Advanced Mode The View Parameters page lists the entire system’s parameters in an alphabetical order� If you need technical assistance, use a text-editor program to copy and save the parameters listed
VIVOTEK System > Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc� General settings > Upgrade firmware This feature allows you to upgrade the firmware of your Network Camera� It takes a few minutes to complete the process� Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format.
VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings� Network: Select this option to retain the Network Type settings (please refer to Network Type on page 51)� Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
VIVOTEK 3. Open the file with Microsoft® Notepad and locate your time zone; set the start and end time of DST� When completed, save the file. In the example below, DST begins each year at 2:00 a�m� on the second Sunday in March and ends at 2:00 a.m. on the first Sunday in November. Update daylight saving time rules: Click Browse… and specify the XML file to update. If incorrect date and time are assigned, you will see the following warning message when uploading the file to the Network Camera.
VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings� VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文� Update custom language file: Click Browse… and specify your own custom language file to upload. Export configuration file: Click to export all parameters for the device and user-defined scripts.
VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted� If you want to add more accounts in the Manage User column, please apply the password for the “root” account first.
VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level� Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
VIVOTEK 5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the address bar and press Enter on your keyboard� Some Security Alert dialogs will pop up� Click OK or Yes to enable HTTPS� https:// https://192.168.5.151/index.html Create self-signed certificate manually 1� Select the second option� 2� Click Create to open the Create Certificate page.
VIVOTEK 3� The following information will show up in a pop-up window after clicking Create� Then click Save to generate the certificate. 4. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate.
VIVOTEK 3� If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups� 4. The pop-up window shows an example of a certificate request. 5� Look for a trusted certificate authority that issues digital certificates� Enroll the Network Camera� Wait for the certificate authority to issue an SSL certificate; click Browse...
VIVOTEK Tips: ► 1. How do I cancel the HTTPS settings? 1-1� Uncheck Enable HTTPS secure connection in the second column and click Save; a warning dialog will pop up� 1-2� Click OK to disable HTTPS� 1-3� The webpage will redirect to a non-HTTPS page automatically� ► 2. If you want to create and install other certificates, please remove the existing one.
VIVOTEK Security > Access List Advanced Mode This section explains how to control access permission by verifying the client PC’s IP address� General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2)� The default value is 10� If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player)� Connection status View I
VIVOTEK ■ Disconnect: If you want to break off the current connections, please select them and click this button� Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explorer or Quick Time Player)� Enable access list filtering: Check this item and click Save if you want to enable the access list filtering function� Filter Filter type: Select Allow or Deny as the filter type.
VIVOTEK Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List. The routing prefix is written in CIDR notation.
VIVOTEK Security > IEEE 802.1x Advanced Mode Enable this function if your network environment uses IEEE 802�1x, which is a port-based network access control� The network devices, intermediary switch/access point/hub, and RADIUS server must support and enable 802�1x settings� The 802�1x standard is designed to enhance the security of local area networks, which provides authentication to network devices (clients) attached to a network port (wired or wireless).
VIVOTEK 3� When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802�1x enabled switch� The devices will then start the authentication automatically� NOTE: ► The authentication process for 802�1x: 1� The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server)� 2� A Network Camera requests access to the protected LAN using 802�1X via a switch (the authenticator
VIVOTEK Network > General settings This section explains how to configure a wired network connection for the Network Camera.
VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses� Secondary DNS: Secondary domain name server that backups the Primary DNS� Primary WINS server: The primary WINS server that maintains the database of computer name and IP address� Secondary WINS server: The secondary WINS server that maintains the database of computer name and IP address� Enable UPnP presentation: Select this option to enable UPnPTM presentation for your Network Camera so that whenever a Networ
VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera� ► If UPnP TM is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
VIVOTEK 4� In the Networking Services dialog box, select Universal Plug and Play and click OK� 5� Click Next in the following window� 6� Click Finish� UPnP TM is enabled� ► How does UPnP TM work? UPnP TM networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without the need for cumbersome network configuration.
VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The browser should be Microsoft® Internet Explorer 6�5, Mozilla Firefox 3�0 or above� When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly� IPv6 Information: Click this button to obtain the IPv6 information as shown below� If your IPv6
VIVOTEK Please follow the steps below to link to an IPv6 address: 1� Open your web browser� 2� Enter the link-global or link-local IPv6 address in the address bar of your web browser� 3� The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4� Press Enter on the keyboard or click Refresh button to refresh the webpage� For example: NOTE: ► If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage in the following address format: (Please
VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443� It can also be assigned to another port number between 1025 and 65535� Two way audio port: By default, the two way audio port is set to 5060� Also, it can also be assigned to another port number between 1025 and 65535� The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously� By using the Network Camera’s built-in or external microphone and an external speaker, you can communic
VIVOTEK Audio is being transmitted to the Network Camera 2011/03/09 17:08:56 Video (TCP-AV) Mute Talk Button Mic Volume Click to enable audio transmission to the Network Camera; click to turn off the audio� To stop talking, click again� microphone; click to adjust the volume of FTP port: The FTP server allows the user to save recorded video clips� You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server� By default, the FTP port is set to 21� Another port number from bet
VIVOTEK Network > Streaming protocols Advanced Mode HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 40 for details� Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest� If basic authentication is selected, the password is sent in plain text format and there can be potential r
VIVOTEK URL command -- http://:/ For example, when the Access name for stream 2 is set to video2�mjpg: 1� Launch Mozilla Firefox or Netscape� 2� Type the above URL command in the address bar� Press Enter� 3� The JPEG images will be displayed in your web browser� http://192.168.5.151/video2.
VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest� If basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted� If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access� The availability of the RT
VIVOTEK Multicast settings for stream 1 ~ 4: Click the items to display the detailed configuration information� Select the Always multicast option to enable multicast for stream 1 ~ 4� Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address� Therefore, enabling multicast can effectively
VIVOTEK Network > QoS (Quality of Service) Advanced Mode Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network� Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications.
VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer)� The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines.
VIVOTEK Network > DDNS This section explains how to configure the dynamic domain name service for the Network Camera� DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name.
VIVOTEK Manual setup DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting� Provider: Select a DDNS provider from the provider drop-down list� VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is recommended that you register Safe100.
VIVOTEK 4� Select Enable DDNS and click Save to enable the setting� ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services� 1� In the DDNS column, select CustomSafe100 from the drop-down list� 2.
VIVOTEK Network > SNMP (Simple Network Management Protocol) Advanced Mode This section explains how to use the SNMP on the network camera� The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices� It helps network administrators to remotely manage network devices and find, solve network problems with ease.
VIVOTEK Media > Image Advanced Mode This section explains how to configure the image settings of the Network Camera� It is composed of the following four columns: General settings, Preference, Exposure, and Privacy mask� General settings Timestamp and video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below� Zoom factor: If you check this item, the zoom indicator will be displayed on the Home page when you zoom in/out the live viewing window as the p
VIVOTEK Day/Night Settings Switch to B/W in night mode Select this checkbox to enable the Network Camera to automatically switch to Black & White display during the night mode� Disable IR LED (This option is not present on all models configuration screen!) If you do not want to use the IR illuminators, you can select this option to turn it off� IR cut filter With a removable IR-cut filter, this Network Camera can automatically remove the filter to let Infrared light pass into the sensor during low light c
VIVOTEK Preference On this page, you can tune the White balance, Image adjustment and WDR enhanced parameters� You can configure two sets of preferred settings: one for normal situations, the other for special situations, such as day/night/schedule mode� 2011/03/13 17:08:56 Sensor Setting 1: For normal situations Sensor Setting 2: For special situations White balance: Adjust the value for the best color temperature� ■ Auto: It will automatically adjust the color temperature of the light in response to
VIVOTEK ■ Sharpness: Adjust the image sharpness level, which ranges from -3 to +3� You can also select Customize and manually enter a value� ■ Gamma curve: This function is for user to select a proper gamma curve value to adjust the gray-scale of the monitor� ■ Enable low light compensation: Select this option in low light mode, and the values of sharpness and brightness will change automatically as the noise reduction function� WDR enhanced: This function allows users to identify more image details with a
VIVOTEK If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile Settings page as shown below.
VIVOTEK Exposure Advanced Mode On this page, you can set the Exposure measurement window, Exposure level, Exposure mode, Exposure time, and Gain control settings� You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as day/night/schedule mode� 2011/03/13 17:08:56 Sensor Setting 1: For normal situations Sensor Setting 2: For special situations Measurement Window: This function allows users to set measurement window(s) for low light compesatio
VIVOTEK The inclusive window refers to “weighted window“; the exclusive window refers to “ignored window“� It adopts the weighted averages method to calculate the value� Include X 2011/03/13 17:08:56 Weighted region Ignored region Exclude X 2011/03/13 17:08:56 ■ BLC (Back Light Compensation): This option will automatically add a “weighted region“ in the middle of the window and give the necessary light compensation� Exposure control: ■ Exposure level: You can manually set the Exposure level, which ran
VIVOTEK Auto: If you set Exposure mode as Auto, the Exposure time and Gain control will be not configurable since the sensor library will automatically adjust the value according to the ambient light� Then you can set iris mode as "indoor" or "outdoor" to reach the best image quality� You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings� If you want
Privacy mask Advanced Mode Click Privacy Mask to open the settings page� On this page, you can block out certain sensitive zones to address privacy concerns� 2011/03/15 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1� Click New to add a new window� 2� Use the mouse to size and drag-drop the window, which is recommended to be at least twice the size of the object (height and width) you want to cover� 3� Enter a Window Name and click Save to enable the setting� 4� Check Enable privacy
VIVOTEK Media > Video Stream settings Advanced Mode Enable time shift caching stream: Select one stream as the time shift cache stream� This function enable the time shift cache stream on the Network Camera, which will store video in the camera’s embedded memory for a period of time depending on the cache memory on each Network Camera� This function can work seamlessly with VIVOTEK’s ST7501 recording software� When an event occurs, the recording software can request time shift cache stream from the camer
VIVOTEK NOTE: ► All the items in the “Region of Interest” cannot be greater than the “Output Frame Size“ (current maximum resolution)� ■ The parameters of the multiple streams: Stream 1 Stream 2 Stream 3 Stream 4 Region of Interest Output frame size 1920 X 1080 ~ 176 x 144 (Selectable) 1920 X 1080 ~ 176 x 144 (Selectable) 1920 X 1080 ~ 176 x 144 (Selectable) 1920 X 1080 (Fixed) 1920 X 1080 ~ 176 x 144 (Selectable) 1920 X 1080 ~ 176 x 144 (Selectable) 1920 X 1080 ~ 176 x 144 (Selectable) 1920 X 1080 ~
VIVOTEK Click the stream item to display the detailed information� The maximum frame size will follow your settings in the above Viewing window sections� This Network Camera offers real-time H�264, MPEG-4 and MJEPG compression standards (Triple Codec) for real-time viewing� If H.
VIVOTEK ■ Intra frame period Determine how often to plant an I frame� The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds� ■ Video quality A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission� Therefore, if Constant bit rate is se
VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients� Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page� In that case, the following message is displayed: Internal microphone input gain: Select the gain of the external audio input according to ambient conditions� Adjust the gain from +21 db (most sensitive) or -33 db (least sensitive)� Extern
VIVOTEK PTZ > PTZ settings Advanced Mode This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation� Digital: Control the e-PTZ operation� It allows users to quickly move the focus to a preconfigured target area for close-up viewing without physically zooming the camera.
VIVOTEK Home page in E-PTZ Mode x2.
VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule: 1� Select the preset locations on the list, and click � 2� The selected preset locations will be displayed on the Patrol locations list� 3� Set the Dwelling time for the streaming view to stay at the preset location during auto patrol� 4� If you want to delete a preset location from the Patrol locations list, select it and click Remove� 5� Select a locati
VIVOTEK Event > Event settings Advanced Mode This section explains how to configure the Network Camera to respond to particular situations (event)� A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications� Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices� When an event is trigger
VIVOTEK ■ Event name: Enter a name for the event setting� ■ Enable this event: Select this option to enable the event setting� ■ Priority: Select the relative importance of this event (High, Normal, or Low)� Events with a higher priority setting will be executed first.
VIVOTEK This option allows the Network Camera to trigger when the recording disk is full or when recording starts to overwrite older data� ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with� To enable this function, you need to configure the Tampering Detection option first.
VIVOTEK To configure an event with video recording or snapshots, it is necessary to configure/provide servers and storage media settings so that the Network Camera will know where to send the media files to when a trigger is activated� Add server Click Add server to unfold the server setting window. You can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.
VIVOTEK To verify if the email settings are correctly configured, click Test� The result will be shown in a pop-up window� If successful, you will also receive an email indicating the result� Click Save server to enable the settings, then click Close to exit the Add server page� After you set up the first event server, a new item for event server will automatically appear on the Server list� If you wish to add more server options, click Add server� Server type - FTP Select to send the media files to an F
VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests� If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. To verify if the FTP settings are correctly configured, click Test� The result will be shown in a pop-up window as shown below. If successful, you will also receive a test.txt file on the FTP server.
VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated� Please refer to NAS server on page 105 for details� Click Save server to enable the settings, then click Close to exit the Add server page� ■ SD Test: Click to test your SD card. The system will display a message indicating success or failure.
VIVOTEK Add media Click Add media to open the media setting window� You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log� Select the item to display the detailed configuration options. You can configure either one or all of them.
VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name.
VIVOTEK ■ Maximum duration Specify the maximum recording duration in seconds� Up to 10 seconds of video can be recorded� For example, if pre-event recording is set to 5 seconds and the maximum duration is set to 10 seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated� 1 sec. 2 sec. 3 sec. 4 sec. 5 sec. 6 sec. 7 sec. 8 sec. 9 sec. 10 sec. Trigger Activation ■ Maximum file size Specify the maximum file size allowed.
VIVOTEK ■ View: On the Action window, click this button to open a file list window. This function is only for SD card and Network Storage� If you click View button for an SD card, a Local storage page will pop up for you to manage recorded files on SD card. For more information about Local storage, please refer to page 108.
VIVOTEK Here is an example of the Event setting: When completed the settings with steps 1~3 to arrange Schedule, Trigger, and Action of an event, click Save event to enable the settings and click Close to exit the page� The following is an example of the Event setting page: User's Manual - 97
VIVOTEK When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will automatically send snapshots via e-mail� If you want to stop the event trigger, you can click ON to turn it to OFF status or click Delete to remove a previously-configured event setting.
VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured.
VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure specific motion detection settings individually for day/night/schedule operations, please click Profile to open the Motion Detection Profile Settings page as shown below. A total of three motion detection windows can be configured on this page as well.
VIVOTEK NOTE: ► How does motion detection work? A C B D There are two motion detection parameters: Sensitivity and Percentage� In the illustration above, frame A and frame B are two sequential images� Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity is a value that expresses the sensitivity to moving objects� Higher sensitivity settings are expected to detect slight movements while smaller sensitivity
VIVOTEK Applications > DI and DO Advanced Mode Digital input: Select High or Low to define the activate status for the digital input. The Network Camera's current status is shown on the right� Digital output: Select Grounded or Open to define normal status for the digital output� The Network Camera will show whether the trigger is activated or not� Set up the event source as DI on Event > Event settings > Trigger.
VIVOTEK Recording > Recording settings Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: Please remember to format your SD card when used for the first time. Please refer to page 108 for detailed information� Recording Settings Click Add to open the recording setting window.
VIVOTEK If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record the streaming data in full frame rate; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage� NOTE: ► To enable adaptive recording, please make sure you’ve set up the trigger sources such as Motion Detection, DI Device, or Manual Trigger� Bandwidth I frame ---> Full frame rate -
VIVOTEK 2� Destination You can select the SD card or network storage (NAS) for the recorded video files.
VIVOTEK If successful, you will receive a test.txt file on the networked storage server. 3� Enter a server name� 4� Click Save to complete the settings and click Close to exit the page� ■ Capacity: You can either choose the entire available space or impose a reserved space.
VIVOTEK card� The new recording name will appear on the recording page as shown below� To remove an existing recording setting from the list, single-click to select it and click Delete� ■ Video (Name): Click to open the Recording settings page to modify� ■ ON (Status): Click to manually adjust the Status� (ON: start recording; OFF: stop recording) ■ NAS or SD (Destination): Click to open the file list of recordings as shown below.
VIVOTEK Local storage > SD card management Advanced Mode This section explains how to manage the local storage on the Network Camera� Here you can view SD card status, and implement SD card control� SD card staus This column shows the status and reserved space of your SD card� Please remember to format the SD card when using for the first time.
VIVOTEK Local storage > Content management Advanced Mode This section explains how to manage the content of recorded videos on the Network Camera� Here you can search and view the records and view the searched results� Searching and Viewing the Records This column allows the user to set up search criteria for recorded data� If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results cloumn� ■ File attributes: Select one or more items as your search
VIVOTEK ■ View: Click on a search result which will highlight the selected item in purple as shown above. Click the View button and a media window will pop up to play back the selected file. For example: Click to adjust the image size ■ Download: Click on a search result to highlight the selected item in purple as shown above. Then click the Download button and a file download window will pop up for you to save the file. ■ JPEGs to AVI: This function only applies to “JPEG“ format files such as snapshots.
VIVOTEK Appendix URL Commands for the Network Camera 1.
VIVOTEK 2. Style Convention In URL syntax and in descriptions of CGI parameters, a text within angle brackets denotes a content that is to be replaced with either a value or a string. When replacing the text string, the angle brackets shall also be replaced. An example of this is the description of the name for the server, denoted with in the URL syntax description below, which is replaced with the string myserver in the URL syntax example, also below.
VIVOTEK http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1 4. Security Level SECURITY LEVEL SUB-DIRECTORY DESCRIPTION 0 anonymous Unprotected. 1 [view] anonymous, viewer, 1. Can view, listen, talk to camera. dido, camctrl 2. Can control DI/DO, PTZ of the camera. anonymous, viewer, Operator access rights can modify most of the camera’s dido, camctrl, operator parameters except some privileges and network options.
VIVOTEK A successful control request returns parameter pairs as follows: Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: \r\n \r\n where is =\r\n [] is the actual length of content. Example: Request IP address and its response Request: http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.
VIVOTEK http:///cgi-bin/admin/setparam.cgi? = [&=…][&update=] [&return=] PARAMETER VALUE DESCRIPTION _ value to assigned Assign to the parameter _. update Set to 1 to update all fields (no need to update parameter in each group). return Redirect to the page after the parameter is assigned.
VIVOTEK 7. Available parameters on the server Valid values: VALID VALUES DESCRIPTION string[] Text strings shorter than ‘n’ characters. The characters “,’, <,>,& are invalid. string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters. The characters “,’, <,>,& are invalid. password[] The same as string but displays ‘*’ instead. integer Any number between (-231 – 1) and (231 – 1). positive integer Any number between 0 and (232 – 1).
VIVOTEK 7.1 system Group: system NAME VALUE SECURITY DESCRIPTION (get/set) hostname string[40] 1/6 Host name of server (Network Camera, Wireless Network Camera, Video Server, Wireless Video Server). ledoff 6/6 Turn on (0) or turn off (1) all led indicators. (not used in FD8162) lowlight 6/6 Turn on white light LED under all conditions. Only turn on white light LED in low light conditions. (not used in FD8162) date 6/6 Current date of system.
VIVOTEK Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time, Canada, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS.
VIVOTEK Yakutsk 380: GMT 09:30 Adelaide, Darwin 400: GMT 10:00 Brisbane, Canberra, Melbourne, Sydney, Guam, Vladivostok 440: GMT 11:00 Magadan, Solomon Is., New Caledonia 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable 6/6 Enable automatic daylight saving time in time zone. daylight_dstactualmo 6/7 Check if current time is under daylight saving time.
VIVOTEK “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to default values except for a union of combined results. restoreexceptlang 7/6 Restore the system parameters to default values except the custom language file the user has uploaded. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results. 7.1.
VIVOTEK 7.2 status Group: status NAME VALUE SECURITY DESCRIPTION (get/set) videoactualmodulation ntsc, pal di_i<0~(ndi-1)> 4/7 The actual modulation type (videoin.type=0). 1/7 0 => Inactive, normal 1 => Active, triggered (capability.ndi > 0) do_i<0~(ndo-1)> 1/7 0 => Inactive, normal 1 => Active, triggered (capability.ndo > 0) daynight day, night 7/7 Current status of day, night.
VIVOTEK 7.5 security Group: security NAME VALUE SECURITY DESCRIPTION (get/set) privilege_do view, operator, admin 6/6 Indicate which privileges and above can control digital output (capability.ndo > 0) privilege_camctrl view, operator, admin 6/6 Indicate which privileges and above can control PTZ (capability.ptzenabled > 0 or capability.
VIVOTEK Change HTTP port from 80 to 5556, and change RTP port for video from 5556 to 20480. Then, set preprocess=9 to stop both service first. ”/cgi-bin/admin/setparam.cgi? network_preprocess=9&network_http_port=5556& network_rtp_videoport=20480” type lan, 6/6 Network connection type. 6/6 1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP server at pppoe resetip next reboot. 0 => Use preset ipaddress, subnet, rounter, dns1, and dns2.
VIVOTEK privatekeypassword String[254] 6/6 Password for PEAP ca_exist 6/6 CA installed flag ca_time 6/7 CA installed time. Represented in EPOCH ca_size 6/7 CA file size (in bytes) certificate_exist 6/6 Certificate installed flag (for TLS) certificate_time 6/7 Certificate installed time.
VIVOTEK 7.6.3 IPV6 Subgroup of network: ipv6 (capability.protocol.ipv6 > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable 6/6 Enable IPv6. addonipaddress 6/6 IPv6 IP address. addonprefixlen 0~128 6/6 IPv6 prefix length. addonrouter 6/6 IPv6 router address. addondns 6/6 IPv6 DNS address. allowoptional 6/6 Allow manually setup of IP address setting. SECURITY DESCRIPTION 7.6.
VIVOTEK dependent> s3_accessname capability.nmediastream > 2) string[32] 1/6 Http server push access name for stream 4 capability.nmediastream > 3) s4_accessname string[32] 1/6 Http server push access name for stream 5 capability.nmediastream > 4) For some models, it is used for anystream. (capability.protocol.spush.mjpeg = 1 and capability.
VIVOTEK s3_accessname 1/6 RTSP access name for stream4 (capability.protocol.rtsp=1 and capability.nmediastream > 3) S4_accessname 1/6 RTSP access name for stream5 (capability.protocol.rtsp=1 and capability.nmediastream > 4) For some models, it is used for anystream. (capability.protocol.rtsp=1 and capability.nanystream = 1) s0_audiotrack 1/6 Enable audio for stream1. s1_audiotrack 1/6 Enable audio for stream2.
VIVOTEK 7.6.9 RTP port Subgroup of network: rtp NAME VALUE SECURITY DESCRIPTION (get/set) videoport 1025 ~ 65535 6/6 Video channel port for RTP. (capability.protocol.rtp_unicast=1) audioport 1025 ~ 65535 6/6 Audio channel port for RTP. (capability.protocol.rtp_unicast=1) 7.6.10 PPPoE Subgroup of network: pppoe (capability.protocol.pppoe > 0) NAME VALUE SECURITY DESCRIPTION (get/set) user string[128] 6/6 PPPoE account user name. pass password[64] 6/6 PPPoE account password.
VIVOTEK address> ipv6list_i<0~9> String[44] 6/6 IPv6 address list. SECURITY DESCRIPTION 7.8 Video input Group: videoin NAME VALUE (get/set) cmosfreq 50, 60 4/4 CMOS frequency. (capability.videoin.type=2) whitebalance auto, manual 4/4 “auto” indicates auto white balance. “manual” indicates keep current value. exposurelevel 0~12 4/4 Exposure level autoiris 4/4 Enable auto Iris. (not used in FD8162) irismode fixed, indoor, 4/4 Video Iris for DC Iris.
VIVOTEK Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support) text string[16] 1/4 Enclose caption. imprinttimestamp 4/4 Overlay time stamp on video. maxexposure 1, 15, 30, 4/4 Maximum exposure time.
VIVOTEK 0->2x, 1->4x, 2->8x (not used in FD8162) agcmode auto,fixed 4/4 Set auto gain control mode. maxgain 0~100 4/4 Manual set maximum gain value. mingain 0~100 4/4 Manual set minimum gain value. color 0, 1 4/4 0 =>monochrome 1 => color flip 4/4 Flip the image. mirror 4/4 Mirror the image.
VIVOTEK crop_position 1/4 (x,y) crop_size Crop left-top corner coordinate. (not used in FD8162) 1/4 (WxH) Crop width and height. (width must be 16x or 32x and height must be 8x) (not used in FD8162) crop_preview < boolean > 1/4 Usage for UI of crop setting (not used in FD8162) s<0~(m-1)>_code mpeg4, mjpeg, ctype h264 1/4 Video codec type. 1/4 Video resolution in pixels. 4/4 Intra frame period in milliseconds.
VIVOTEK _quant 99, 100 “ratecontrolmode”. 99 is the customized manual input setting. 1 = worst quality, 5 = best quality. 100 is percentage mode. s<0~(m-1)>_h264 0~51 4/4 _qvalue s<0~(m-1)>_h264 (s<0~(m-1)>_h264_quant = 99) 1~100 4/4 _qpercent s<0~(m-1)>_h264 Manual video quality level input. Manual video quality level input. (s<0~(m-1)>_h264_quant = 100) 1000~16000000 4/4 _bitrate Set bit rate in bps when choosing cbr in “ratecontrolmode”.
VIVOTEK wdrc_strength 0~2 4/4 WDR enhanced. 0: low 1: medium 2: high 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime). Group: videoin_c0_profile_i<0~(m-1)> (capability.
VIVOTEK bgain 0~100 4/4 Manual set bgain value of gain control setting. irismode fixed, indoor, 4/4 Video Iris for DC Iris. 1/4 P-Iris mode. outdoor piris_mode manual, indoor, outdoor piris_sensitivity 1~10 4/4 P-Iris sensitivity for indoor and outdoor mode. piris_response 1~10 4/4 P-Iris response time for indoor and outdoor mode. piris_position 1~100 1/4 P-Iris position for manual mode. wdrc_mode 0~3 4/4 WDR enhanced.
VIVOTEK 0: off 1: auto 2: always on 3: keep current value wdrc_strength 0~2 4/4 WDR enhanced. 0: low 1: medium 2: high agc 0,1,2 4/4 Set auto gain control to normal level or MAX level. 0->2x, 1->4x, 2->8x (not used in FD8162) agcmode auto,fixed 4/4 Set auto gain control mode. maxgain 0~100 4/4 Manual set maximum gain value. mingain 0~100 4/4 Manual set minimum gain value. autoiris 4/4 Enable auto Iris. (not used in FD8162) 7.
VIVOTEK 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel products NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5~5 4/4 Adjust brightness of image according to mode settings. saturation -5~5,100 4/4 Adjust saturation of image according to mode settings. 100 for saturation percentage mode. saturationpercent 0~100 4/4 Adjust saturation value of percentage when saturation=100 contrast -5 ~ 5 4/4 Adjust contrast of image according to mode settings.
VIVOTEK de 0: off 1: auto 2: always on 3:keep current value 7.12 Image setting for preview Group: imagepreview_c<0~(n-1)> for n channel products NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5~5 4/4 Adjust brightness of image according to mode settings. saturation -5~5,100 4/4 Adjust saturation of image according to mode settings. 100 for saturation percentage mode.
VIVOTEK 7.13 Exposure window setting per channel Group: exposure_c<0~(n-1)> for n channel products NAME VALUE SECURITY DESCRIPTION (get/set) mode auto, custom, 4/4 blc The mode indicates how to decide the exposure. auto: Use full view as the only one exposure window. custom: Use inclusive and exclusive window. blc: Use BLC. win_i<0~9>_enable 4/4 Enable or disable the window. win_i<0~9>_policy 0~1 4/4 0: Indicate exclusive. 1: Indicate inclusive.
VIVOTEK 7.14 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE SECURITY DESCRIPTION (get/set) source micin, 4/4 linein micin => use built-in microphone input. linein => use external microphone input. mute 0, 1 4/4 Enable audio mute. gain 9~108 4/4 Gain of input. (audioin_c<0~(n-1)>_source = linein) boostmic 9~108 4/4 Enable microphone boost. 0 => +0dB 1 => +20dB 2 => +40dB Or Gain of input.
VIVOTEK 7.15 Time Shift settings Group: timeshift, c for n channel products, m is stream number (capability.timeshift > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable 4/4 Enable time shift streaming. c<0~(n-1)>_s<0~( 4/4 Enable time shift streaming for specific stream. m-1)>_allow 7.16 Motion detection settings Group: motion_c<0~(n-1)> for n channel product NAME VALUE SECURITY DESCRIPTION (get/set) enable 4/4 Enable motion detection.
VIVOTEK i<0~(m-1)>_win_i<0~2>_width 0 ~ 320 4/4 Width of motion detection window. i<0~(m-1)>_win_i<0~2>_height 0 ~ 240 4/4 Height of motion detection window. i<0~(m-1)>_win_i<0~2>_objsize 0 ~ 100 4/4 Percent of motion detection window. i<0~(m-1)>_win_i<0~2>_sensitivity 0 ~ 100 4/4 Sensitivity of motion detection window. 7.17 Tampering detection settings Group: tampering_c<0~(n-1)> for n channel product (capability.
VIVOTEK Luna_VC, ADAMA_LAND => non-functional service provider Mars_VC, Address.net => non-functional service provider Planex_VC, Luna_VC => cybergate ddns Sun_VC, Mars_VC => cybergate ddns Nexus_Control, Planex_VC => cybergate ddns DO_JP_FREE, Sun_VC => cybergate ddns EPolice, Nexus_Control => nexus control PCCW, DO_JP_FREE => dp-21.net (free) MegaChips, Epolice => epolice.com.tw DLink, PCCW => pccw.com DLinkCN MegaChips => megachips.co.
VIVOTEK 7.19 Express link Group: expresslink PARAMETER VALUE SECURITY DESCRIPTION (get/set) enable 6/6 Enable or disable express link. state onlycheck, 6/6 Camera will check the status of network environment and onlyoffline, express link URL checkonline, badnetwork url string[64] 6/6 The url user define to link to camera 7.
VIVOTEK level 0~7 6/6 Levels used to distinguish the importance of the information: 0: LOG_EMERG 1: LOG_ALERT 2: LOG_CRIT 3: LOG_ERR 4: LOG_WARNING 5: LOG_NOTICE 6: LOG_INFO 7: LOG_DEBUG setparamlevel 0~2 6/6 Show log of parameter setting. 0: disable 1: Show log of parameter setting set from external. 2. Show log of parameter setting set from external and internal. 7.25 SNMP Group: snmp (capability.snmp > 0) NAME VALUE SECURITY DESCRIPTION (get/set) v2 0~1 6/6 SNMP v2 enabled.
VIVOTEK syslocation 0~128 6/6 System location syscontact 0~128 6/6 System contact 7.
VIVOTEK win_i<0~4>_left 0 ~ 320/352 4/4 Left coordinate of window position. win_i<0~4>_top 0 ~ 240/288 4/4 Top coordinate of window position. win_i<0~4>_width 0 ~ 320/352 4/4 Width of privacy mask window. win_i<0~4>_height 0 ~ 240/288 4/4 Height of privacy mask window. SECURITY DESCRIPTION 7.28 Capability Group: capability NAME VALUE (get/set) api_httpversion 0/7 The HTTP API version. bootuptime
VIVOTEK nvideosetting
VIVOTEK storage_dbenabled 0/7 Media files are indexed in database. ptzenabledclient 0/7 Indicate whether to support ptz client protocol_https < boolean > 0/7 Indicate whether to support HTTP over SSL. protocol_rtsp < boolean > 0/7 Indicate whether to support RTSP. protocol_sip 0/7 Indicate whether to support SIP. protocol_maxconnec
VIVOTEK by commas> videoin_codec mpeg4. mjpeg, 0/7 Available codec list. 0/7 Available codec list. 0/7 Indicate whether to support acoustic echo h264 videoout_codec audio_aec cancellation. audio_extmic 0/7 Indicate whether to support external microphone input. audio_linein 0/7 Indicate whether to support external line input.
VIVOTEK uart_httptunnel 0/7 Indicate whether to support HTTP tunnel for UART transfer. (not used in FD8162) transmission_mode Tx, 0/7 Rx, Indicate transmission mode of the machine: TX = server, Rx = receiver box, Both = DVR. Both network_wire 0/7 Indicate whether to support Ethernet. network_wireless 0/7 Indicate whether to support wireless. wireless_s802dot11b 0/7 Indicate whether to support wireless 802.11b+.
VIVOTEK n image_wdrc 0/7 Indicate whether to support WDR enhanced. image_ iristype 0/7 Indicate iris type. image_ focusassist 0/7 Indicate whether to support focus assist. 7.29 Customized event script Group: event_customtaskfile_i<0~2> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[41] 6/7 Custom script identification of this entry. date string[17] 6/7 Date of custom script. time string[17] 6/7 Time of custom script.
VIVOTEK di 6/6 Indicate the source id of di trigger. This field is required when trigger condition is “di”. One bit represents one digital input. The LSB indicates DI 0. mdwin 6/6 Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1st window. For example, to detect the 1st and 3rd windows, set mdwin as 5. mdwin0 6/6 Similar to mdwin.
VIVOTEK action_goto_enable 6/6 action_goto_name Enable/disable ptz goto preset position on event triggered. string[40] 6/6 Specify the preset name that ptz goto on event triggered. action_cf_enable 6/6 Enable or disable sending media to SD card. action_cf_folder string[128] 6/6 Path to store media. action_cf_media NULL, 0~4 6/6 Index of the attached media.
VIVOTEK 7.31 Server setting for event action Group: server_i<0~4> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] 6/6 Identification of this entry type email, 6/6 Indicate the server type: ftp, “email” = email server http, “ftp” = FTP server ns “http” = HTTP server “ns” = network storage http_url string[128] 6/6 URL of the HTTP server to upload. http_username string[64] 6/6 Username to log in to the server. http_passwd string[64] 6/6 Password of the user.
VIVOTEK 7.32 Media setting for event action Group: media_i<0~4> (media_freespace is used internally.) PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] 6/6 Identification of this entry type snapshot, 6/6 Media type to send to the server or store on the systemlog, server. videoclip, recordmsg snapshot_source 6/6 Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. 2 means the third stream and etc.
VIVOTEK 7.33 Recording Group: recording_i<0~1> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] 6/6 Identification of this entry. trigger schedule, 6/6 The event trigger type networkfail schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection. enable 0, 1 6/6 Enable or disable this recording. priority 0, 1, 2 6/6 Indicate the priority of this recording: “0” indicates low priority. “1” indicates normal priority.
VIVOTEK weekday 0~127 6/6 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on Friday and Sunday, set weekday as 66. begintime hh:mm 6/6 Start time of the weekly schedule. endtime hh:mm 6/6 End time of the weekly schedule. (00:00~24:00 indicates schedule always on) prefix string[16] 6/6 Indicate the prefix of the filename.
VIVOTEK 7.34 HTTPS Group: https (capability.protocol.https > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable 6/6 To enable or disable secure HTTP. policy 6/6 If the value is 1, it will force HTTP connection redirect to HTTPS connection method auto, 6/6 auto => Create self-signed certificate manual, automatically. install manual => Create self-signed certificate manually. install => Create certificate request and install.
VIVOTEK autocleanup_enabled 6/6 Enable automatic clean up method. Expired and not locked media files will be deleted. autocleanup_maxage 7.36 Region of interest Group: roi_c<0~(n-1)> for n channel product, and m is the number of streams which support ROI. (capability.eptz > 0) PARAMETER VALUE SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home 6/6 ROI left-top corner coordinate.
VIVOTEK PARAMETER VALUE SECURITY DESCRIPTION (get/set) patrolseq string[120] 1/4 The patrol sequence of ePTZ. All the patrol position indexes will be separated by "," patroldwelling string[160] 1/4 The dwelling time (unit: second) of each patrol point, separated by “,”. preset_i<0~19>_nam string[40] 1/7 e Name of ePTZ preset. (It should be set by ePreset.cgi rather than by setparam.cgi.) preset_i<0~19>_pos 1/7 Left-top corner coordinate of the preset.
VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http:///cgi-bin/dido/setdo.cgi?do1=[&do2=] [&do3=][&do4=] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http:///cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the digital output statuses will be returned. Return: HTTP/1.
VIVOTEK \r\n do1=1\r\n 8.4 3D Privacy Mask Note: This request requires admin user privilege You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command: "/cgi-bin/camctrl/camposition.cgi?setzoom=0" Method: GET/POST Syntax: http:///cgi-bin/admin/setpm3d.
VIVOTEK quality 1~5 The quality of the image. streamid 0~(m-1) The stream number. The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server. Return: HTTP/1.0 200 OK\r\n Content-Type: image/jpeg\r\n [Content-Length: \r\n] 8.6 Account Management Note: This request requires Administrator privileges.
VIVOTEK Return admin Administrator privilege. Redirect to the page after the parameter is assigned. The can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page. 8.7 System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http:///cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.
VIVOTEK 8.10 ePTZ Camera Control (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http:///cgi-bin/camctrl/eCamCtrl.
VIVOTEK zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control. zs 0~6 Set the speed of zooming, “0” means stop. vx The direction of movement, used for joystick control. vy vs 0~7 Set the speed of movement, “0” means stop. x x-coordinate clicked by user. It will be the x-coordinate of center after movement. y y-coordinate clicked by user.
VIVOTEK 8.12 ePTZ Recall (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http:///cgi-bin/camctrl/eRecall.cgi?channel=&stream=& recall=[&return=] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than 40 One of the present positions to recall.
VIVOTEK 8.15 IP Filtering Note: This request requires Administrator access privileges. Method: GET/POST Syntax: http:///cgi-bin/admin/ipfilter.cgi?type[=] http:///cgi-bin/admin/ipfilter.cgi?method=add&ip=[&index=] [&return=] http:///cgi-bin/admin/ipfilter.
VIVOTEK 8.17 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http:///cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------GET /cgi-bin/admin/ctrlevent.
VIVOTEK “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP. You can get the SDP by HTTP GET. When using scalable multicast, Get SDP file which contains the multicast information via HTTP. 8.19 Open the Network Stream Note: This request requires Viewer access privileges.
VIVOTEK unique integer. triggerType Optional. Indicate the event trigger type. Please embrace your input value with single quotes. Ex. mediaType=’motion’ Support trigger types are product dependent. mediaType Optional. Indicate the file media type. Please embrace your input value with single quotes. Ex. mediaType=’videoclip’ Support trigger types are product dependent. destPath Optional. Indicate the file location in camera. Please embrace your input value with single quotes.
VIVOTEK To increase the flexibility of search command, you may use “OR” connectors for logical “OR” search operations. Moreover, to search for a specific time period, you can use “TO” connector. Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and 2008-01-01 23:59:59. http:///cgi-bin/admin/lsctrl.
VIVOTEK http:///cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript 8.22 Virtual input (capability.nvi > 0) Note: Change virtual input (manual trigger) status. Method: GET Syntax: http:///cgi-bin/admin/setvi.cgi?vi0=[&vi1=][&vi2=] [&return=] PARAMETER VALUE DESCRIPTION vi state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1.
VIVOTEK Request 2 will not be accepted during the execution time(15 seconds). 8.23 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c_s_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http:///_accessname>?maxsft=[&tsmode=&reftime=&forcechk&minsft=] For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
VIVOTEK Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled. 8. 24 Open Anystream (capability.nanystream > 0) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http:///videoany.
VIVOTEK mpeg4_intraperiod 250, 500, 1000, 2000, 3000, Intra frame period in milliseconds. 4000 mpeg4_ratecontrolmode cbr, vbr cbr: constant bitrate vbr: fix quality mpeg4_quant 0, 1~5 Quality of video when choosing vbr in 99, 1~5 “mpeg4_ratecontrolmode”. 0,99 is the customized manual input setting. 1 = worst quality, 5 = best quality. mpeg4_qvalue 1~31 Manual video quality level input.
VIVOTEK Technical Specifications Technical Specifications System Networking ．CPU: TI DM368 SoC ．Flash: 16MB ．RAM: 256MB ．Embedded OS: Linux 2.6 ．10/100 Mbps Ethernet, RJ-45 ．Onvif support ．Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, TP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X Lens ．Board lens, vari-focal, f = 3 ~ 9 mm, F1.2 (wide), F2.1 (tele), auto-iris ．Removable IR-cut filter for day & night function Angle of View ．31.7° ~ 93.0° (horizontal) ．23.
VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW�VIALICENSING�COM� MPEG-4 Visual Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i
VIVOTEK Electromagnetic Compatibility (EMC) FCC Statement This device compiles with FCC Rules Part 15� Operation is subject to the following two conditions� ■ This device may not cause harmful interference, and ■ This device must accept any interference received, including interference that may cause undesired operation� This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide reasonable prote
