USER’S GUIDE 5
12 VAC 1 A
120 VAC
120 mA AC
Voltage output: 9.6 V
Max. current output: 1 A
Max. charge currents
Fast charge: 160 mA
Trickle charge: 90 mA
Battery capacity: 1.8 Ah
Battery
Pack

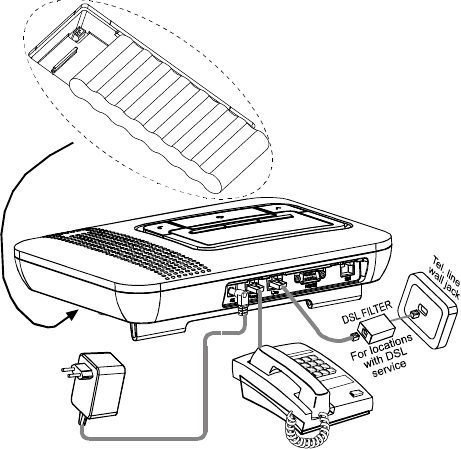

Figure 3b – Installation: Power, Telephone and Tel. line
battery Connection
Note: It is recommended that the AC power input, the
RS-232, and the telephone be interconnected within the
same room.
Step 3
Program the panel:
This step must be performed only by the system
installer or authorized service professional.
Local setup
1. Install the HHCPC software on your PC.
2. Enter all the desired programming information into
the HHCPC. Connect one end of the special cable
(supplied by Visonic) to one of the computer's COM
ports and the other end to the AMBER SELECT /
AMBER SELECT
X
unit.
Remote setup
1. Enter all the desired programming information into
the HHCPC.
2. Connect to the remote panel via a dial-up modem
attached to the PC.
Step 4
Connect Power to AMBER SELECT /
AMBER SELECT
X
(Fig. 3)
During normal operation, your AMBER SELECT /
AMBER SELECT
X
runs on electrical power.
1. Insert the plug on the power cord into the "AC"
connector on the AMBER SELECT / AMBER
SELECT
X
.
2. Insert the safety catch tab horizontally into the hole to
the right of the power cord plug, as shown in Figure
3a.
3. Turn the safety catch screw, observing the polarity of
the arrow in Figure 3a, until facing the other hole. Then
secure the screw.
4. Connect the AC/AC adapter into a nearby electrical
outlet. DO NOT USE AN OUTLET CONTROLLED BY
A WALL SWITCH.
When the panel is not installed all three LEDs light
(AMBER SELECT
X
) to indicate this status. Audio
prompts announce AC, Telco, or battery problem, in the
event of such a problem.
Caution: When the plug is removed the unit is
disconnected from the mains supply and will run on the
battery pack for a period of up to 24 hours or until the
plug is reconnected.
When electrical power is supplied to the AMBER
SELECT
X
, the green light on the front panel illuminates.
Step 5
The Unit is now connecting you to
the Monitoring Center
After you complete the steps above your AMBER
SELECT / AMBER SELECT
X
will automatically call your
Central Station provided that your unit was programmed
to report to Central Station (and not to private
telephones). The central station operator will begin a two-
way voice session. Once this feature has been tested, the
operator must disconnect by pressing DTMF '99'.
Note: Certain remote areas of your residence may lie
outside the reception range of the AMBER SELECT /
AMBER SELECT
X
, resulting in the unit not being able to
receive transmissions directly. In this case, a Repeater
(MCX-600PERS) can be used to increase the AMBER
SELECT / AMBER SELECT
X
reception range.
For further details, please contact the company from
where the products were purchased.
