Users Manual

LoRa® Modem

 168 dB maximum link budget

 +20 dBm - 100 mW constant RF output vs. V supply

 +14 dBm high efficiency PA

 Programmable bit rate up to 300 kbps

 High sensitivity: down to -148 dBm

 Bullet-proof front end: IIP3 = -11 dBm

 Excellent blocking immunity

 Low RX current of 9.9 mA, 200 nA register retention

 Fully integrated synthesizer with a resolution of 61 Hz

 FSK, GFSK, MSK, GMSK, LoRa® and OOK modulation

 Built-in bit synchronizer for clock recovery

 Preamble detection

 127 dB Dynamic Range RSSI

 Automatic RF Sense and CAD with ultra-fast AFC

 Packet engine up to 256 bytes with CRC

 Built-in temperature sensor and low battery indicator

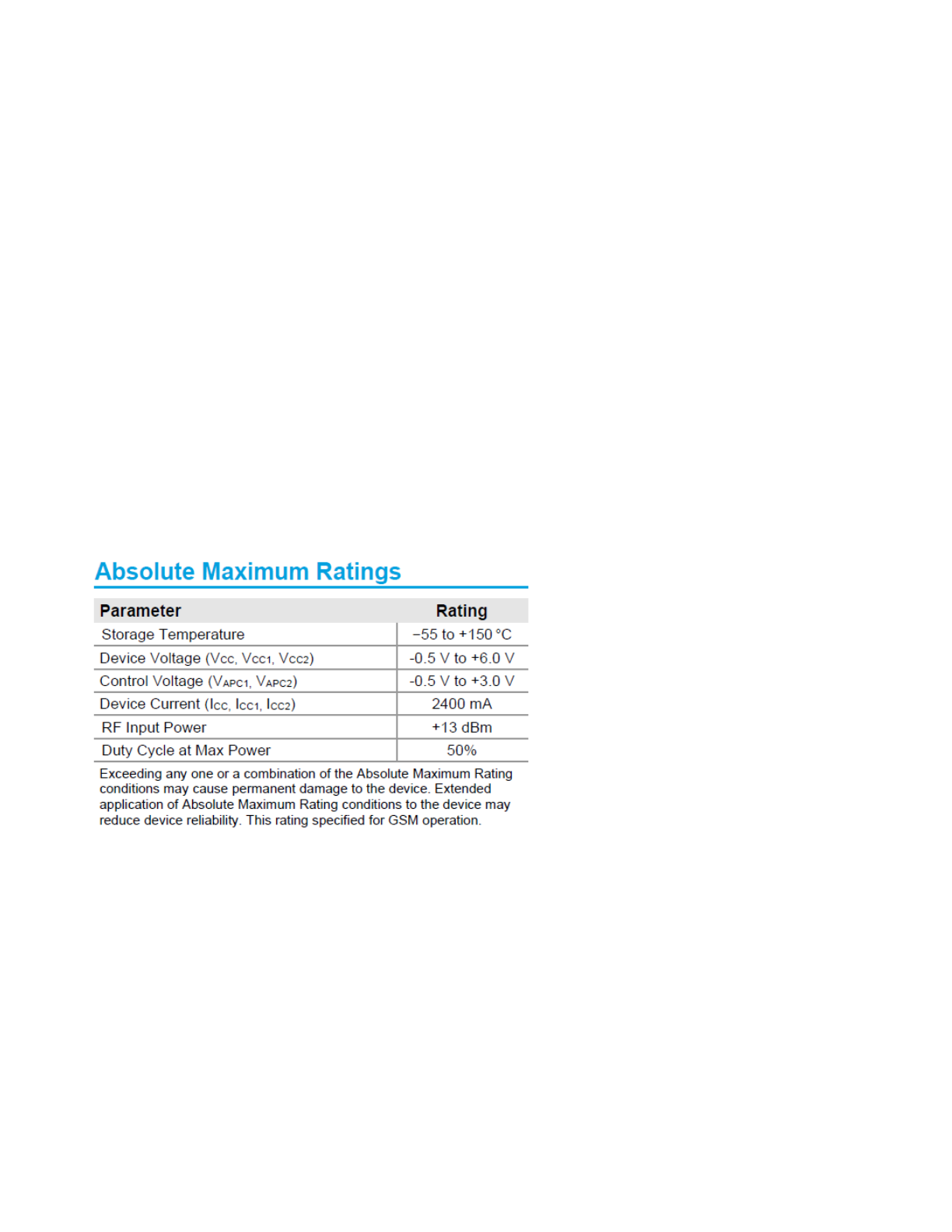

Power amplifier RF5110G

2.8V TO 3.6V, ISM BAND, 32 dBm.

150MHz to 960MHz (used for TX only).

Antenna

The Taoglas FXP290 915 MHz ISM Antenna covers from 902-928 MHz used in the 915 MHz ISM (Industrial

Scientific Medical) Band. The antenna has been designed in a flexible material with a square form-factor and

cable connection for an easy installation. The antenna works on different plastic materials and thickness. We

have selected a piece of ABS with 2 mm of thickness as a baseline for testing.

Spec No. : FXP290

Part No. : FXP290.07.0100A

Model : 915MHz ISM Band Flex Circuit Antenna

Features : 75*45*0.1mm

100mm Ø1.13 cable
