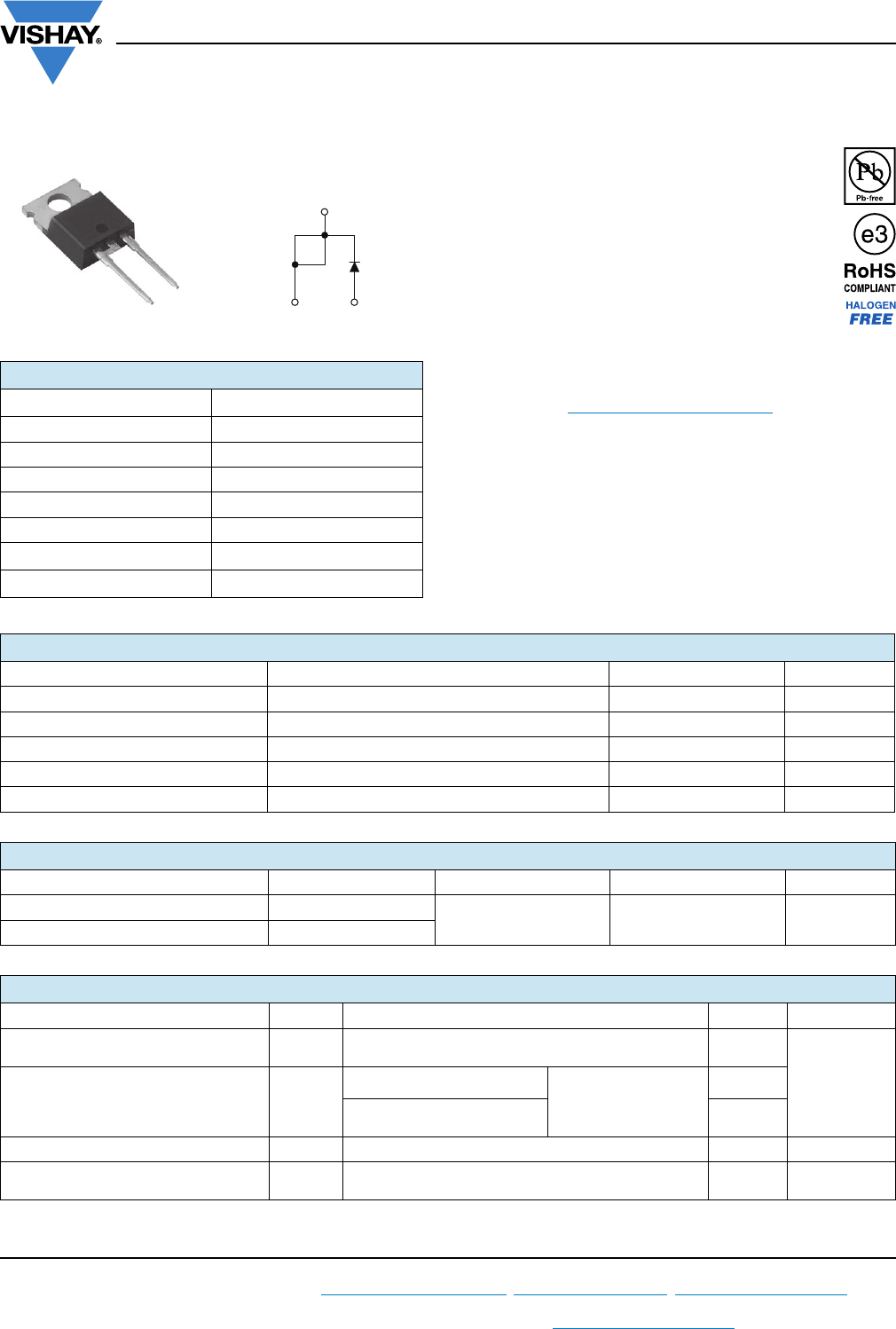

VS-15TQ060PbF, VS-15TQ060-N3
www.vishay.com
Vishay Semiconductors
Revision: 22-Apr-14
1
Document Number: 94142
For technical questions within your region: DiodesAmericas@vishay.com
, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
High Performance Schottky Rectifier, 15 A
FEATURES
150 °C T
J
operation
Very low forward voltage drop
High frequency operation
High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
Guard ring for enhanced ruggedness and long
term reliability
Designed and qualified according to JEDEC
®
-JESD47
Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
DESCRIPTION
The VS-15TQ060... Schottky rectifier has been optimized for
very low forward voltage drop, with moderate leakage. The
proprietary barrier technology allows for reliable operation
up to 150 °C junction temperature. Typical applications are
in switching power supplies, converters, freewheeling
diodes, and reverse battery protection.
PRODUCT SUMMARY
Package TO-220AC
I
F(AV)
15 A
V
R
60 V
V
F
at I
F
0.56 V
I
RM
max. 45 mA at 125 °C
T
J
max. 150 °C
Diode variation Single die
E
AS
6 mJ
Anode
1
3
Cathode
Base
cathode
2
TO-220AC
Available
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Rectangular waveform 15 A
V
RRM
60 V
I
FSM
t
p
= 5 μs sine 1000 A
V
F
15 A
pk
, T
J
= 125 °C 0.56 V
T
J
Range -55 to 150 °C
VOLTAGE RATINGS
PARAMETER SYMBOL VS-15TQ060PbF VS-15TQ060-N3 UNITS
Maximum DC reverse voltage V
R
60 60 V
Maximum working peak reverse voltage V
RWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current
See fig. 5
I
F(AV)
50 % duty cycle at T
C
= 104 °C, rectangular waveform 15
A
Maximum peak one cycle
non-repetitive surge current
See fig. 7
I
FSM
5 μs sine or 3 μs rect. pulse
Following any rated
load condition and
with rated V
RRM
applied
1000
10 ms sine or 6 ms rect. pulse 260
Non-repetitive avalanche energy E
AS
T
J
= 25 °C, I
AS
= 1.50 A, L = 11.5 mH 6 mJ
Repetitive avalanche current I
AR
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
1.50 A
