Datasheet

TLHB4200, TLHB4201
www.vishay.com
Vishay Semiconductors
Rev. 1.7, 23-Apr-13
4
Document Number: 83014
For technical questions, contact: [e-mail]
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

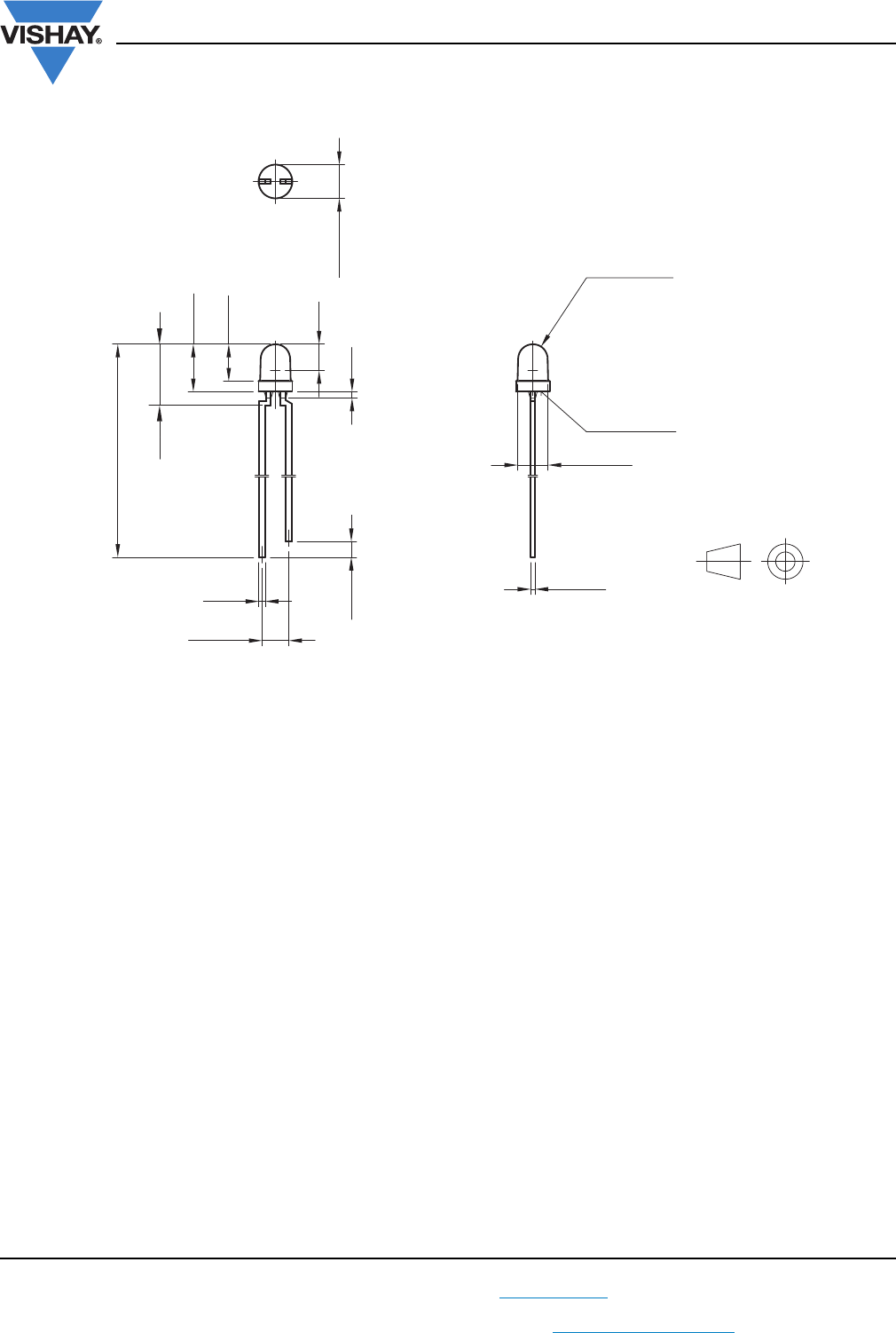

PACKAGE DIMENSIONS in millimeters
Ø 3.2
± 0.15
Ø 2.9
± 0.15
0.4
+ 0.15
- 0.05
< 0.6
3.5
± 0.1
4.5
± 0.3
5.8
± 0.3
30.3
± 0.5
1.5
± 0.25
0.6
± 0.15
2.54 nom.
Drawing-No.: 6.544-5255.01-4
Issue: 7; 25.09.08
95 10913
specifications
according to DIN
technical drawings
A
C
Area not plane
(2.5)
R 1.4 (sphere)
