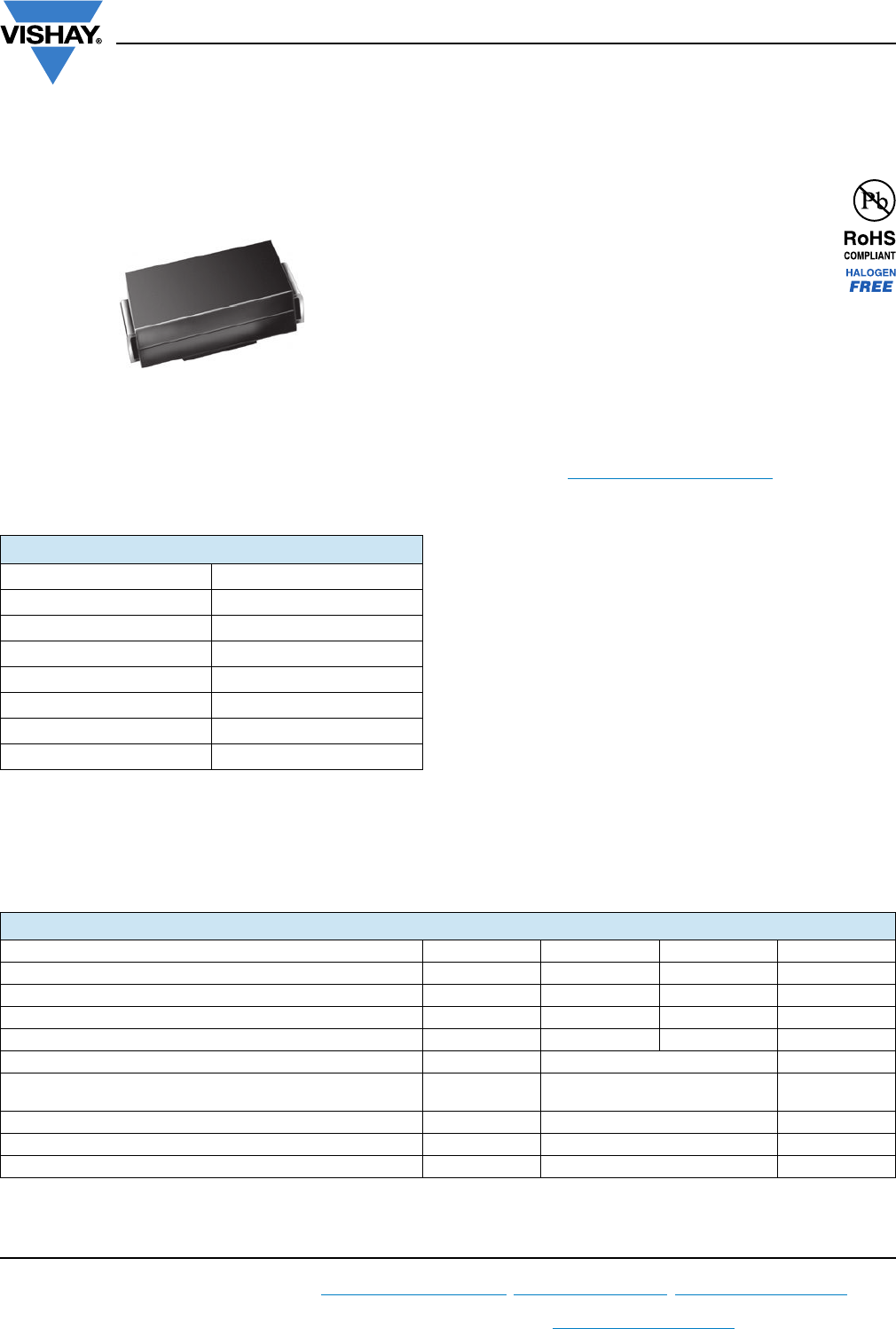

High-Voltage Surface Mount Schottky Rectifier
High Barrier Technology for Improved High Temperature Performance
FEATURES
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• Low leakage current
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
MECHANICAL DATA
Case: SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, ...)
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Polarity: color band denotes the cathode end
PRIMARY CHARACTERISTICS
I
F(AV)
1.0 A
V
RRM
90 V, 100 V
I
FSM
50 A
V
F
0.62 V
I
R
1.0 μA
T
J
max. 175 °C
Package SMA (DO-214AC)
Diode variations Single
SMA (DO-214AC)
Available
MAXIMUM RATINGS (T
A
= 25 °C unless otherwise noted)
PARAMETER SYMBOL SS1H9 SS1H10 UNIT
Device marking code S9 S10
Maximum repetitive peak reverse voltage V
RRM
90 100 V
Working peak reverse voltage V
RWM
90 100 V
Maximum DC blocking voltage V
DC
90 100 V
Maximum average forward rectified current (fig. 1) I
F(AV)
1.0 A
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
I
FSM
50 A
Peak repetitive reverse surge current at t
p
= 2.0 μs, 1 kHz I
RRM
1.0 A
Storage temperature range T
STG
-65 to +175 °C
Maximum operating temperature T
J
175 °C
