Si5855CDC
TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted
* The power dissipation P
D
is based on T
J(max)
= 150 °C, using junction-to-case thermal resistance, and is more useful in settling the upper
dissipation limit for cases where additional heatsinking is used. It is used to determine the current rating, when this rating falls below the package
limit.

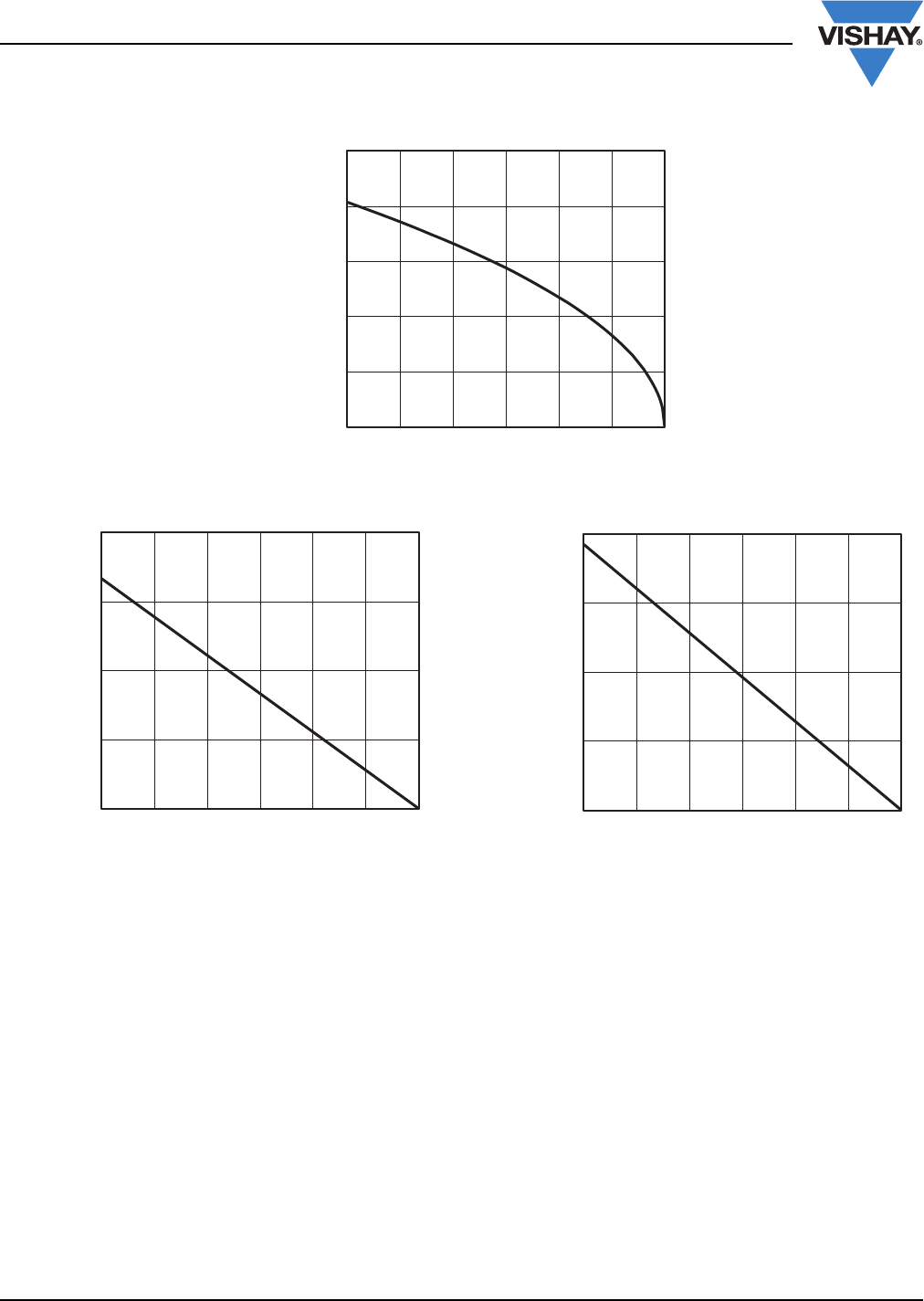

Current Derating*
0
1
2
3
4
5
0 255075100125150
T
C
- Case Temperature (°C)
I
D
- Drain Current (A)
Power, Junction-to-Foot
T
C
- Case Temperature (°C)
Power (W)
0
1
2
3
4
0 25 50 75 100 125 150
Power, Junction-to-Ambient
0.0
0.3
0.6
0.9
1.2
0 25 50 75 100 125 150
T
A
-Ambient Temperature (°C)
Power (W)
