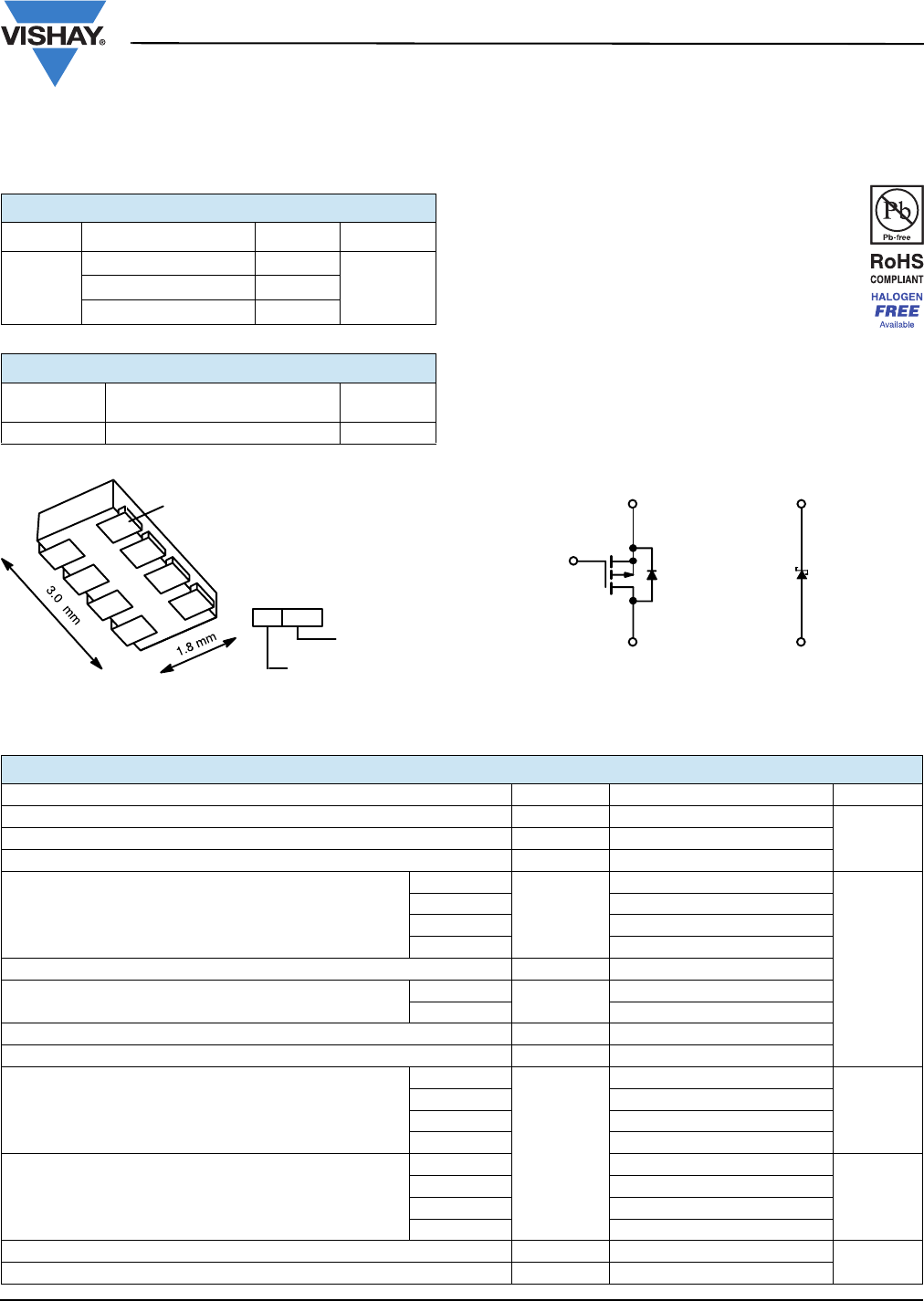

P-Channel 20 V (D-S) MOSFET with Schottky Diode
FEATURES
• Halogen-free According to IEC 61249-2-21
Definition
• LITTLE FOOT
®
Plus Power MOSFET
• Ultra Low V
F
Schottky
• Compliant to RoHS Directive 2002/95/EC
APPLICATIONS
• Charging Switch for Portable Devices
- With Integrated Low V
F
Trench Schottky Diode
MOSFET PRODUCT SUMMARY
V
DS
(V) R
DS(on)
(Ω)
I
D
(A)
a
Q
g
(Typ.)
- 20
0.144 at V
GS
= - 4.5 V
- 3.7
4.1 nC
0.180 at V
GS
= - 2.5 V
- 3.3
0.222 at V
GS
= - 1.8 V
- 3.0
SCHOTTKY PRODUCT SUMMARY
V
KA
(V)
V
f
(V)
Diode Forward Voltage
I
F
(A)
a
20 0.375 at 1 A 1
Marking Code
XXX
Lot Traceability
and Date Code
Part #
Code
JG
1206-8 ChipFET
®
Bottom View
A
A
S
G
K
K
D
D
1
Ordering Information: Si5855CDC-T1-E3 (Lead (Pb)-free)
Si5855CDC
-T1-GE3 (Lead (Pb)-free and Halogen-free)
K
A
S
G
D
P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS T
A
= 25 °C, unless otherwise noted
Parameter Symbol Limit Unit
Drain-Source Voltage (MOSFET) V
DS
- 20
V
Reverse Voltage (Schottky) V
KA
20
Gate-Source Voltage (MOSFET) V
GS
± 8
Continuous Drain Current (T
J
= 150 °C) (MOSFET)
T
C
= 25 °C
I
D
- 3.7
a
A
T
C
= 70 °C - 3.0
T
A
= 25 °C
- 2.5
b, c
T
A
= 70 °C
- 2.0
b, c
Pulsed Drain Current (MOSFET) I
DM
- 10
Continuous Source Current (MOSFET Diode Conduction)
T
C
= 25 °C
I
S
- 2.3
a
T
A
= 25 °C
- 1.1
b, c
Average Forward Current (Schottky) I
F
1
Pulsed Forward Current (Schottky) I
FM
7
Maximum Power Dissipation (MOSFET)
T
C
= 25 °C
P
D
2.8
W
T
C
= 70 °C 1.8
T
A
= 25 °C
1.3
b, c
T
A
= 70 °C
0.8
b, c
Maximum Power Dissipation (Schottky)
T
C
= 25 °C 3.1
W
T
C
= 70 °C 2.0
T
A
= 25 °C 1.9
T
A
= 70 °C 1.2
Operating Junction and Storage Temperature Range T
J
, T
stg
- 55 to 150
°C
Soldering Recommendation (Peak Temperature)
d, e
260
