MSP5.0A
Vishay General Semiconductor
www.vishay.com For technical questions within your region, please contact one of the following:
[e-mail]
, [e-mail], [e-mail]
Document Number: 88487
Revision: 16-Jun-09
4

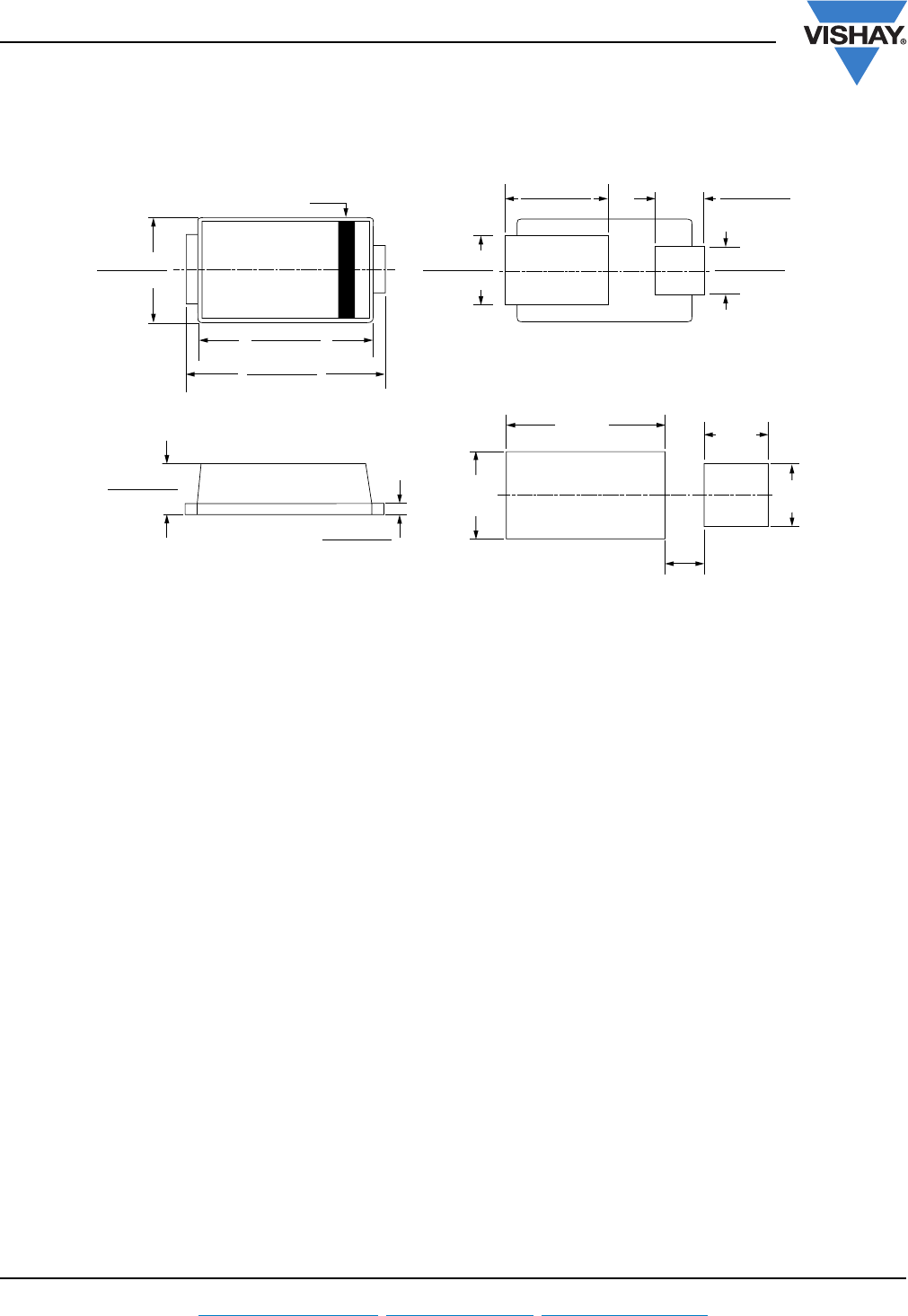

PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
0.020
(0.50)
0.043
(1.10)
0.106 (2.70)
0.091 (2.30)
0.055 (1.40)
0.047 (1.20)
0.011 (0.27)
0.005 (0.12)
0.079
(2.00)
0.032
(0.80)
0.032
(0.80)
Mounting Pad Layout
Cathode Band
MicroSMP
0.030 (0.75)
0.022 (0.55)
0.030 (0.75)
0.022 (0.55)
0.059 (1.50)
0.043 (1.10)
0.039 (0.98)
0.031 (0.78)
0.091 (2.30)
0.083 (2.10)
0.029 (0.73)
0.025 (0.63)
