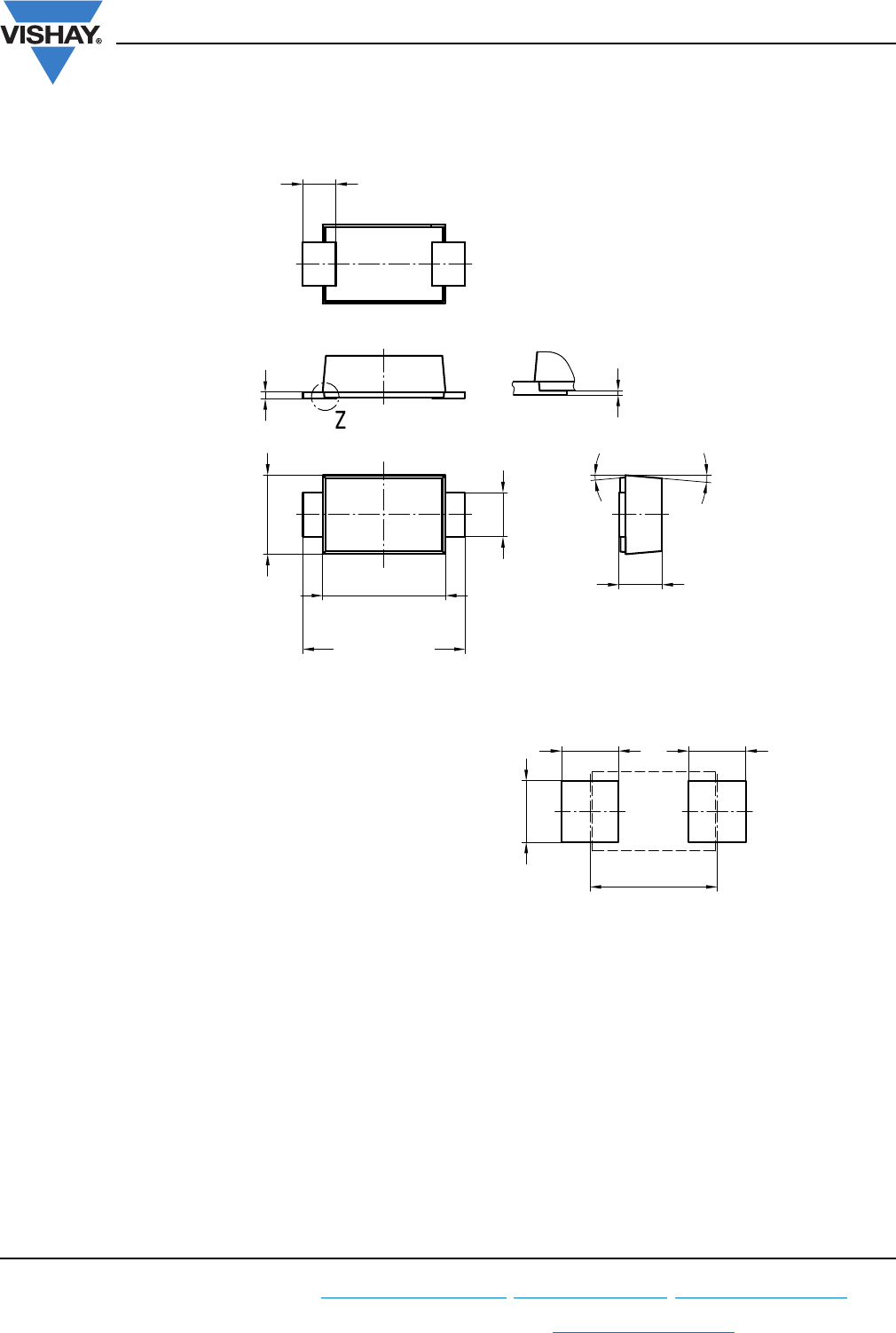

PACKAGE DIMENSIONS in millimeters (inches): DO219-AB (SMF)
Foot print recommendation:
Rev. 3 - Date: 13. March 2007
Document no.:S8-V-3915.01-001 (4)
1.3 (0.051) 1.3 (0.051)
2.9 (0.114)
1.4 (0.055)
2.9 (0.114)
2.7 (0.106)
3.9 (0.154)
3.5 (0.138)
0.85 (0.033)
0.35 (0.014)
1.2 (0.047)
0.8 (0.031)
1.9 (0.075)
1.7 (0.067)
1.08 (0.043)
0.88 (0.035)
0.25 (0.010)
0.05 (0.002)
0.1 (0.004)
0 (0.000)
5
5
Created - Date: 15. February 2005
17247
Detail Z
enlarged
