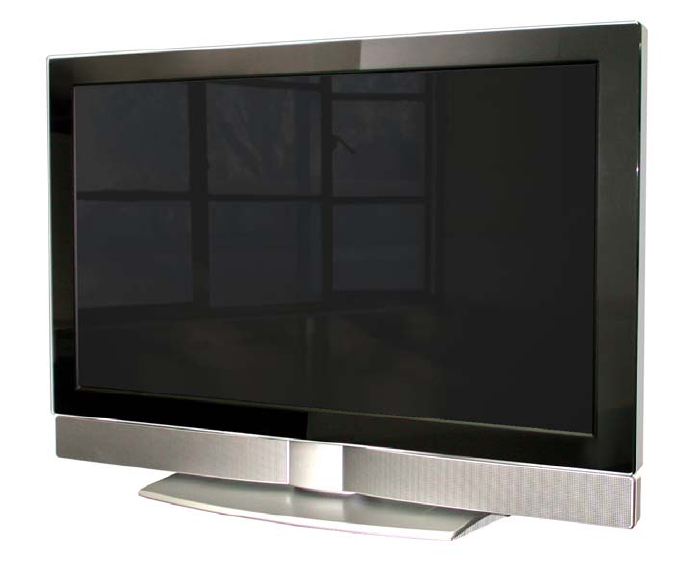

Service Manual Model #: VIZIO GV47L FHDTV10A V, Inc 320A Kalmus Drive Costa Mesa, CA 92626 TEL : +714-668-0588 FAX :+714-668-9099 Top Confidential
Table of Contents CONTENTS PAGE Sections 1. Features 1-1 2. Specifications 2-1 3. On Screen Display 3-1 4. Factory Preset Timings 4-1 5. Pin Assignment 5-1 6. Main Board I/O Connections 6-1 7. Theory of Circuit Operation 7-1 8. Waveforms 8-1 9. Trouble Shooting 9-1 10. Block Diagram 10-1 11. Spare parts list 11-1 12. Complete Parts List (GV47L FHDTV10A) 12-1 Appendix 1. Main Board Circuit Diagram 2. Main Board PCB Layout 3.
VINC Service Manual VIZIO GV47L FHDTV10A COPYRIGHT © 2000 V, INC. ALL RIGHTS RESERVED. IBM and IBM products are registered trademarks of International Business Machines Corporation. Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc. VINC and VINC products are registered trademarks of V, Inc. VESA, EDID, DPMS and DDC are registered trademarks of Video Electronics Standards Association (VESA). Energy Star is a registered trademark of the US Environmental Protection Agency (EPA).
Chapter 1 Features 1. High resolution 1920 x 1080 with wide screen. 2. Built-in digital HDTV and standard TV combination TV tuner. 3. All TV formats supported (1080i, 720p, 480 p and 480i). 4. Computer Monitor (RGB): up to1360 x 768 (H x V). 5. Wall mounting capable with and without speakers. 6. 2.1 virtual surround sound with 20W subwoofer. 7. Dual HDMI (High Definition Multimedia Interface). 8.
Chapter 2 Specification 1. TFT-LCD CHARACTERISTICS Type: 47.0” WUXGA TFT LCD Size: 47 inch Display Size: 46.96” diagonal Outline Dimension: 1096 mm (H) x 640 mm (V) x 51 mm (D) (Typ.) Pixel Pitch: 0.5415mm (H) x 0.5415mm (V) Pixel Format: 1920 horiz. By 1080 vert. Pixels RGB strip arrangement Contrast ratio: 800:1(Typ.), 1,600:1 with DCR Luminance, White: 500 cd/m2 (Typ.) Display Operating Mode: normally Black Surface Treatment: Hard Coating (3H), Anti-glare treatment of the front polarizer. 2.
.Speaker Output 10W (max) X2, Sub woofer 20W X1 7. ENVIRONMENT 7-1. Operating Temperature: 0c~35c (Ambient) 7-2. Operating Humidity: Ta= 35 °C, 90%RH (Non-condensing) 7-3. Operating Altitude: 0 - 14,000 feet (4267.2m)(Non-Operating) 8. DIMENSIONS (Physical dimension) Width: 1131 mm. Depth: 270 mm Height: 798 mm 9. WEIGHT (Physical weight) a. Net: 40.3 +/-0.5kgs b. Gross: 47.3+/-0.5kgs 9-1. MOUNTING PRECAUTIONS (1) You must mount a module using holes arranged in four corners or four sides.
(6) Do not touch, push or rub the exposed polarizes with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene.
9-3. HANDLING PRECAUTIONS FOR PROTECTION (1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.
Chapter 3 On Screen Display Main unit button POWER SOURCE CH + CH VOL + VOL MENU TV Source A. Picture Adjust： a. Picture Mode (Standard/Movie /Game /Custom) b. Backlight (0~100) c. Contrast (0~100) d. Brightness (0~100) e. Color (saturation)(0~100) f. Tint (hue) (0~100) g. Sharpness (0~7) h. Color Temperature (Cool/Normal/Warm/Custom) i. Advanced Picture Adjust B. Audio Adjust： a. Volume (0~100) b. Bass (0~100) c. Treble (0~100) d. Balance (-50~+50) e. Surround (ON/OFF) f.
C. Special Features： a. Language (English/Français/Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. Analog CC (OFF/CC1~4/TT1~4) d. Digital CC (OFF/CC1~4/Service1~6) e. Digital CC Style f. PIP Position (TL/TC/TR/ML/MR/BL/BC/BR) g. Rest All Settings D. TV Tuner Setup： a. Tuner Mode (Cable/Air) b. Auto Search c. Skip Channel d. Digital Audio Out (PCM/Dolby Digital) e. Time Zone (Eastern/Indiana/Central/Mountain/Arizona/Pacific/Alaska/Hawaii) f. Daylight Saving (ON/OFF) E. Parental Control： a.
B. Audio Adjust： a. Volume (0~100) b. Bass (0~100) c. Treble (0~100) d. Balance (-50~+50) e. Surround (ON/OFF) f. Speakers (ON/OFF) C. Special Features： a. Language (English/Français/Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. PIP Position (TL/TC/TR/ML/MR/BL/BC/BR) d. Rest All Settings AV / SV / COMPONENT MODE A. Picture Adjust： a. Picture Mode (Standard/Movie /Game /Custom) b. Backlight (0~100) c. Contrast (0~100) d. Brightness (0~100) e. Color (saturation) (0~100) f. Tint (hue) (-50~+50) g.
C. Special Features： a. Language (English/Français/Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. Analog CC (OFF/CC1~4/TT1~4) d. PIP Position (TL/TC/TR/ML/MR/BL/BC/BR) e. Rest All Settings D. Parental Control： a. Parental Lock Enable (ON/OFF) b. TV Rating c. Move Rating d. Block Unrated TV (NO/YES) e. Access Code Edit HDMI MODE： A. Picture Adjust： a. Picture Mode (Standard/Movie /Game /Custom) b. Backlight (0~100) c. Contrast (0~100) d. Brightness (0~100) e. Color (saturation) (0~100) f.
C. Special Features： a. Language (English/Français/Espaňol) b. Sleep Timer (OFF/30Min/60Min/90Min/120Min) c. PIP Position (TL/TC/TR/ML/MR/BL/BC/BR) d. Rest All Settings CONFIDENTIAL – DO NOT COPY Page 3-5 File No.
Chapter 9 Trouble shooting MONITOR DISPLAY NOTHING (PC MODE) Start N0 LED is lighted 1. 2. 3. 4. 5. Is Power board output +5V? Is J7 connector good? Is DC-DC OK? Is U6&U4 (3.3V) working Is J6 connector good? ok? Yes N0 LED is lighting? It is in power saving 1. Check video cable 2. Is the timing supported? 3. Check sync input 4. Check VGASOG rout if analog (SOG) Yes N0 U11 no data out? It means data to LVDS 1.Is J5 connecting OK? 2.Check J7 +5V&+12V 3.Is panel ok? 4.
(TV, COMPOSITE VIDEO1, 2, S-VIDEO) IS NOT DISPLAY CORRECTLY Start N0 1.Check video 2.Check DVD player Input signal good? Yes N0 U11 input correct? 1.Check P2&P12 signal 2.Check signal between P2 and U11 (IF AV1/AV2 mode) 3.Check Tuner &U11 (IF TV mode) 4.Check P12 (IF S-Video) 5.Check U11 POWER +3.3V 6.Check Y1 is OK? Yes N0 1.Check signal between U20 and U9 U11 output correct? Yes N0 LVDS output correct? 1.Check LVDS LINE 2.Check U11 clock (27MHz) 3.Check U11 power Yes 1.
(COMPONENT1, 2) IS NOT DISPLAY CORRECTLY Start N0 1.Check video 2.Check host’s setting Input signal good? Yes N0 1.Check signal between P4 2.Check power 12V& 5v P4 input correct? Yes N0 1.Check signal between U11&P4 2.Check U11 Clock (27MHZ) U11 input correct? Yes N0 LVDS output correct ? 1.Check U11 2.Check U11 power 3.3V&1.25v&1.8v Yes 1.Is J5 connected good? 2.Is panel working ok? END CONFIDENTIAL – DO NOT COPY Page 9-3 File No.
(HDMI) IS NOT DISPLAY CORRECTLY Start N0 1.Check video 2.Check host’s setting Input signal good? Yes N0 1.Check p10&p11 connect 2.Check signal between U31 and U19 U31 input correct? Yes 1.Check U33 2.Check U32 & U34 U11 no data out ? N0 U11 no data out ? 1.Check U11 power 2.Check between signal U19 and U11 3.Check U19 clock 27MHZ 1.Is J6 connected good? 2.Is panel working ok? END CONFIDENTIAL – DO NOT COPY Page 9-4 File No.
TROUBLE OF DC-DC CONVERTER Start N0 J7 PIN10,11,12 The voltage is about + 5V 1.Check power board 2.Check power cable connection J7 Yes N0 J7 PIN 2,3,4 The voltage is about + 12V while power switch on 1.J7 connection good 2.Check J7 Pin1 is up to 3V? 3.Check power board Yes N0 The voltage is about +5V while power switch on 1. Check U11 GPIO_7 Pin U1 pin 5 6 7 8 Yes N0 The voltage is about +3.3V 1.Check U4 U4 pin2 Yes N0 U6 pin 2 Yes The voltage is about +3.3V 1.
TROUBLE OF DDC READING Start N0 Support DDC1/2B 1.Analog cable ok? 2.Check signal (U20 to P3) 3.Check U20 Voltage 4.Is compliant protocol? Analog DDC OK? Yes N0 HDMIDDC OK? Support DDC1/2B 1.Analog cable ok? 2.Check signal (U32 to P10) 3. Check signal (U34 to P11) 4.Is compliant protocol? Yes END CONFIDENTIAL – DO NOT COPY Page 9-6 File No.
