Instruction Manual

Page 6 Installation Instructions
The dual knock out plates for the electrical box
must be removed prior to installation.
PM-FCP
Step 1. Attach the braided cable, using the directions on page 5, in the appropriate manner for your mounting conguration.
Step 2. Let the four (4) strands of braided cable hang down off to one side of the opening in the ceiling.

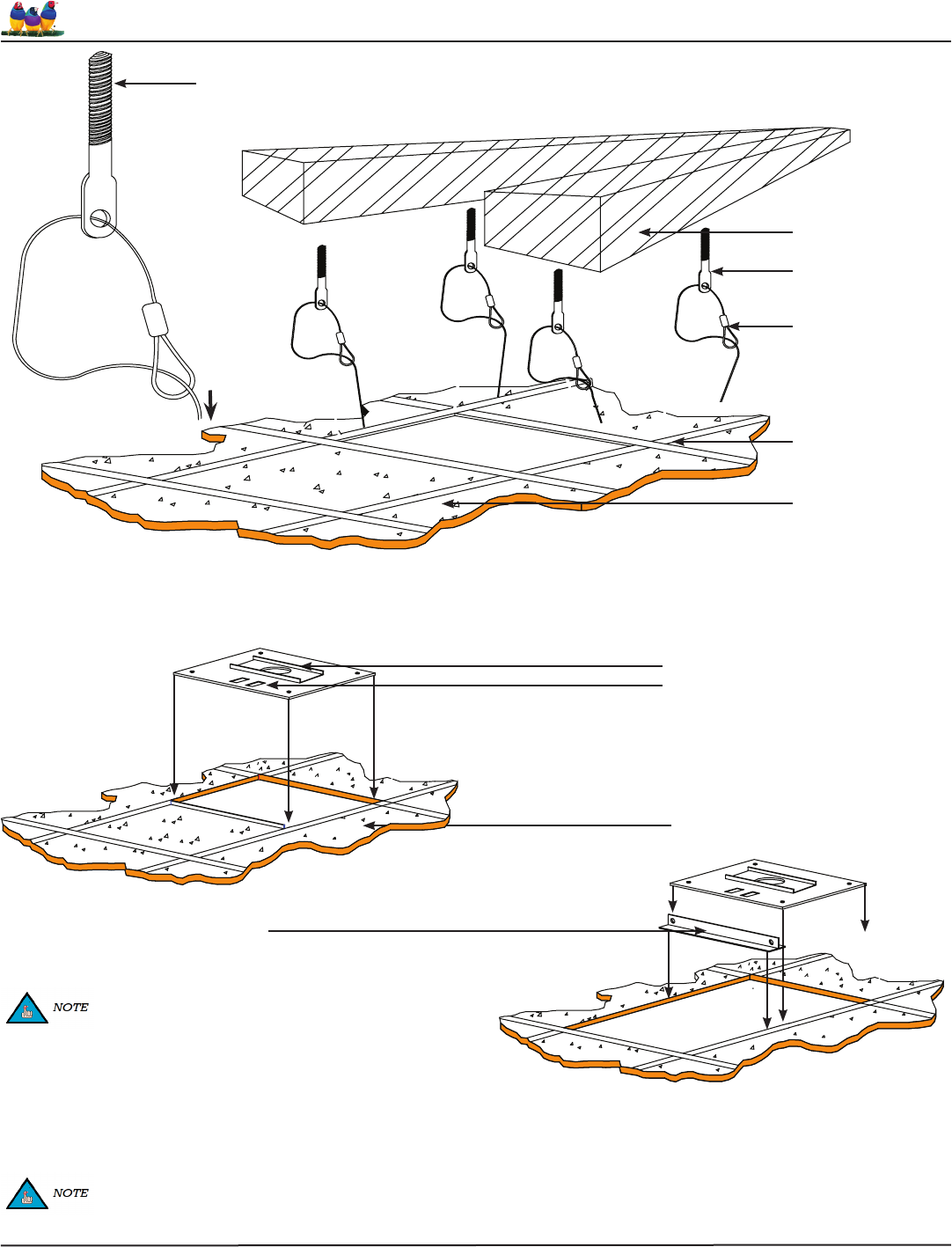

Permanent Mounting
Structure
Eye Lag Screw
Braided Cable
T-bar Frame
Ceiling Tile
Step 1. Install the PM-FCP plate securely onto the T-bar framework with the mounting studs face down (according to your
installation conguration).
Ceiling
Mounting Studs on
the Bottom
24” ‘T’ Bar
(Commercially
Available)
Dual Knock Outs
In the event that you are using the PM-FCP in an opening that is 24” x 48”, a 24” piece of T-bar (commercially available)
must be used to support the mount and ceiling tile. The T-bar (commercially available) will run from side to side
and help support the PM-FCP and 24” x 24” replacement ceiling tile (commercially available).
PM-FCP Installation
Eye Lag Screw
24”x24” Ceiling Tile
24”x48” Ceiling Tile
