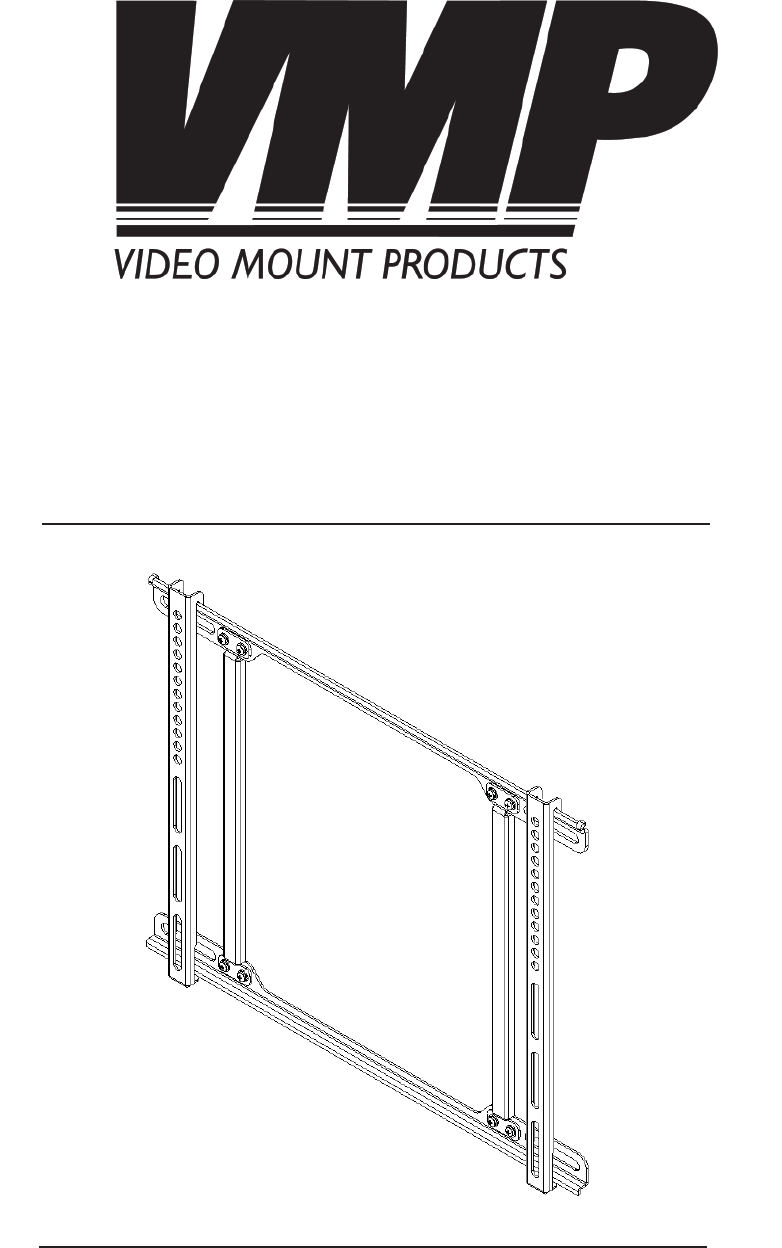

Instruction Sheet For: FP-MF & FP-MFB For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.
DESCRIPTION Top Rail Bottom Rail Mounting Rails Vertical Supports Washer 4.7* 10*T1.0 Screw M4*P0.7*L6 Security Screw M5*P0.8*L20 Long Allen Key M4 Screw M4*P0.7*L12 Screw M5*P0.8*L12 Screw M6*P1.0*L12 Screw M8*P1.25*L16.5 Screw M4*P0.7*L30 Screw M5*P0.8*L30 Screw M6*P1.0*L35 Screw M8*P1.25*L40 Lock Washer M4 Lock Washer M5 Lock Washer M6 Lock Washer M8 Washer 5.5* 18*T2.0 Spacer M6 Spacer M8 Magnetic Level Hex Lag Screw 5/16"*2.5" Washer 8.3* 19*T1.6 ITEM NO.
Step 1 Before starting, lay out all parts to your mount and match them to the parts list provided.
