1
EN NL FR DE ES SE Appendix
1. DESCRIPTION
• Programmable load output with lighting control mode.
• Three stage battery charging (bulk – absorption – float).
• Protected against over current.
• Protected against short circuit.
• Protected against reverse polarity connection of the battery or solar
array.
• Low voltage load disconnect.
• Easy to set up thanks to one digit seven segment display.

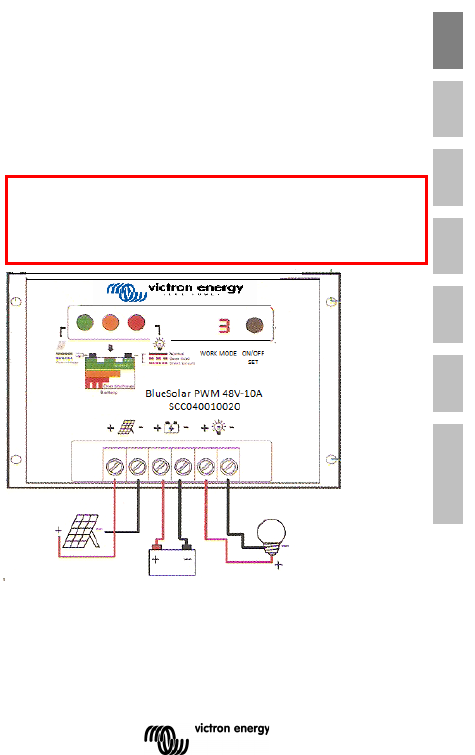

2. INSTALLATION
The display will show a ‘’H’’ if the Controller detects a 48V battery.
Do not exceed Solar and Load ratings
IMPORTANT
• Always connect the batteries first, in order to allow the
Controller to recognize system voltage
• Use a 4x36 cells or 2x72 cells for a 48V battery system.
