Installation Guide

2019-08-15 19:11 3/8 VE.Bus Smart Dongle - manual
Victron Energy - https://www.victronenergy.com/live/
What's in the box
VE.Bus Smart Dongle1.
Red battery (+) connection wire with 10mm eyelet and inline fuse.2.
Black battery (-) connection wire with 10mm eyelet3.
Connector block with screw terminals.4.
Optional accessories :

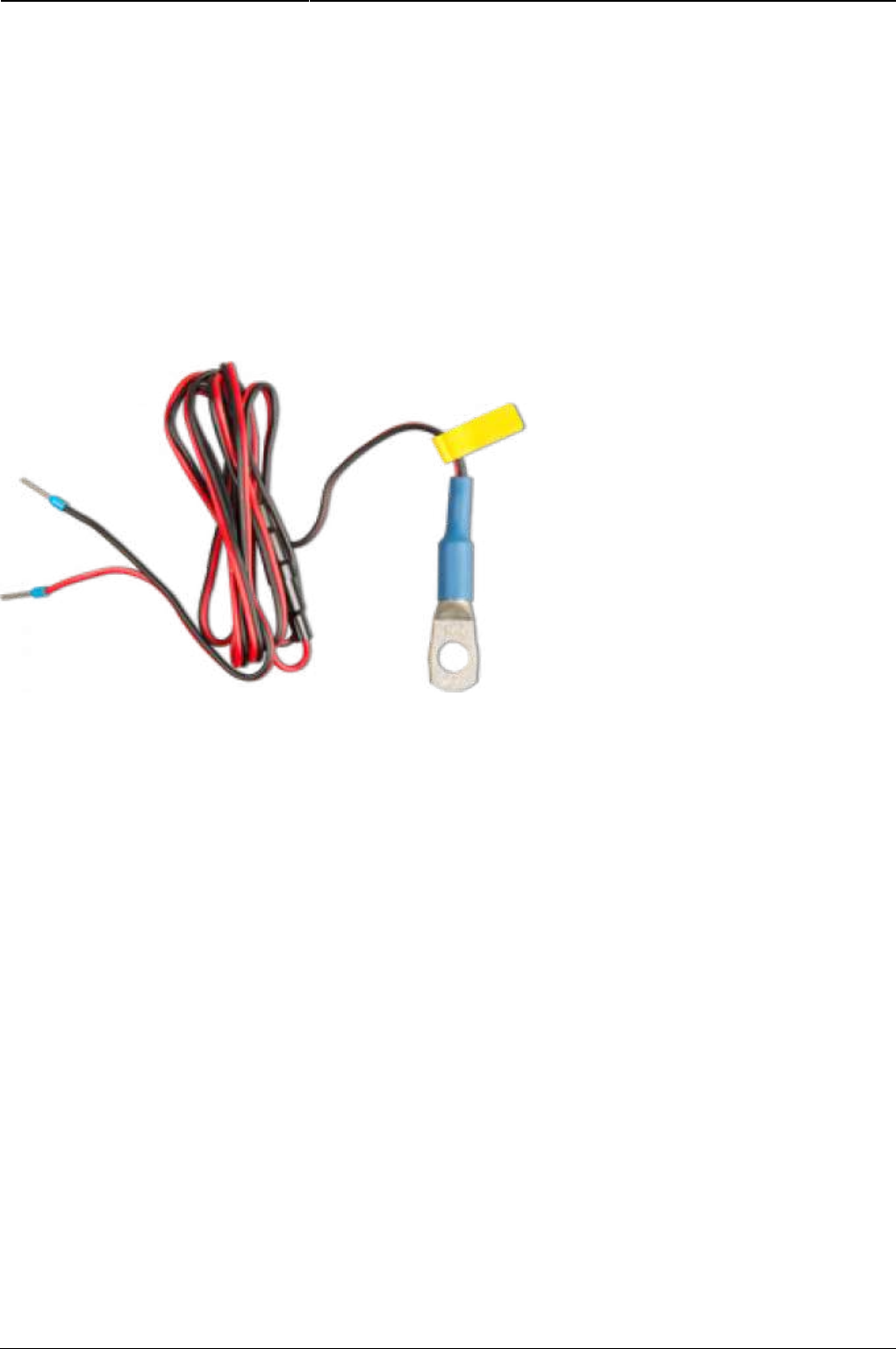

External battery-terminal mounted temperature sensor (ASS000100000). (NOTE: Currently the1.
temperature sensor is shipped with a label “CAUTION: BMV702 only!”. This caution can be
ignored for the VE.Bus Smart dongle)
Installation
Installation without battery sensor:
Connect the red connection wire to the B+ input on the connection block1.
Connect the black connection wire to the B- input on the connection block2.
Connect the two eyelets to your battery terminals. Red wire eyelet on bat+ , black wire eyelet3.
on bat-
For battery temperature sensing, mount the dongle on or near the battery using the dongle's4.
adhesive mounting. If mounted near the battery, screws can be used.
Plug the connector block into the dongle.5.
Connect the dongle to the Multi's Ve.Bus interface, using a standard RJ45 UTP cable6.
