User's Manual

SER8300 Series
3
Installation Guide
Schneider Electric- Small Building Systems Tel. Americas: North Andover, MA 1-800-225-0962 Tel. Europe: Malmö, Sweden [phone] Tel. Asia Pacific: Hong Kong [phone]
028-0418-01 www.schneider-electric.com/buildings October 2013 ct
© 2013 Schneider Electric. All rights reserved.
• If replacing an existing Line Voltage FCU Controller, label wires
before removal of Controller.
• Electronic controls are static sensitive devices. Discharge
yourself correctly before manipulating and installing
Controller.
• A short circuit or wrong wiring may permanently damage
Controller or equipment.
• All SER8300 series controls are designed for use as operating
controls only and are not safety devices. Tampering with the
devices or unintended application of the devices will result in
a void of warranty.
• This transmitter must be installed to provide a separation
distance of at least 8in (20cm) from all persons and must
not be collocated or operating in conjunction with any other
antenna or transmitter.

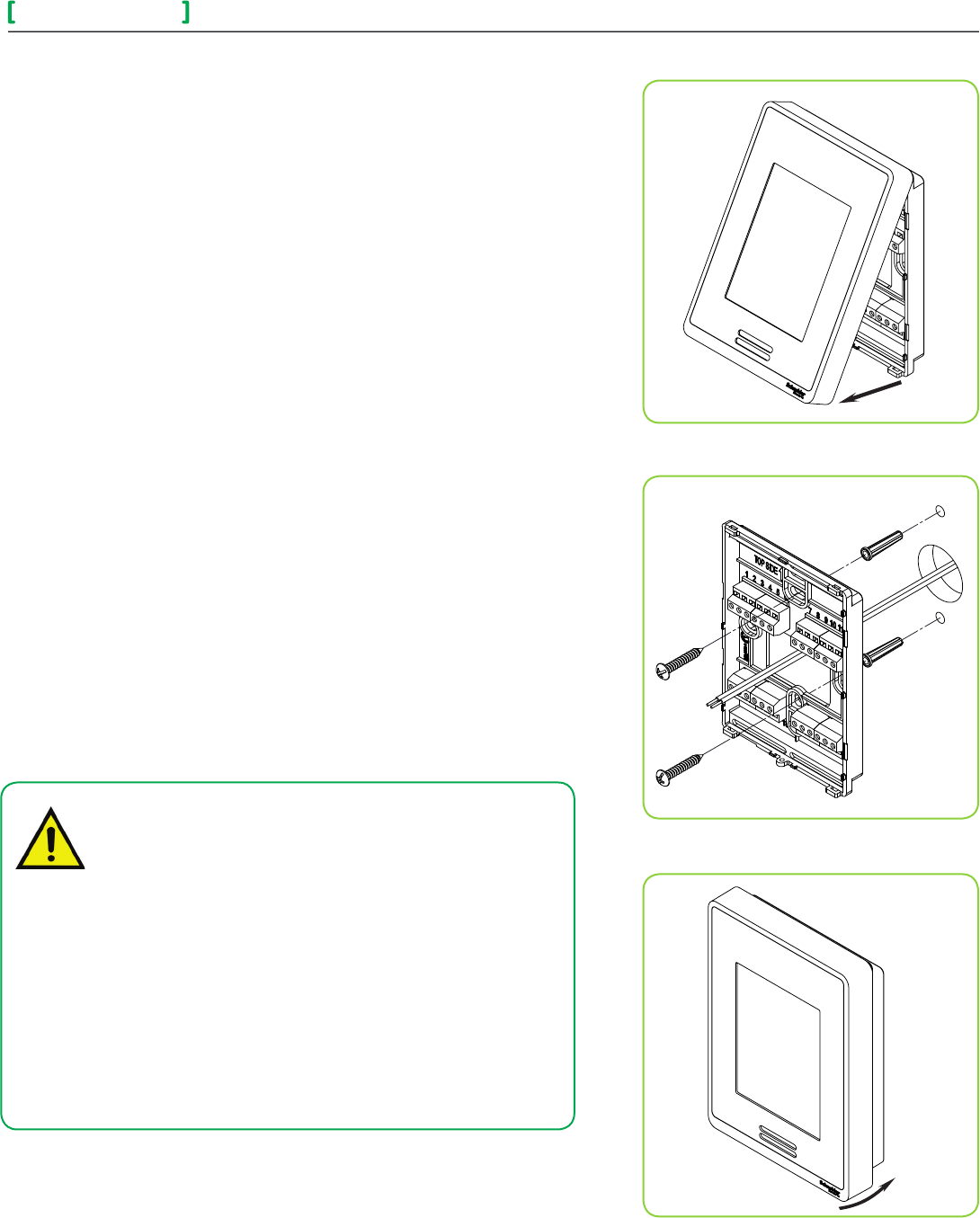

Figure-1 Open the cover
Figure-2 Install the base
Figure-3 Reinstall cover
INSTALLATION
Preparation
• Open unit by pulling on bottom side of Terminal Equipment Controller (Fig. 1).
• Read FCC ID and IC label installed in cover before installing any wireless
product.
• Ensure correct side of base faces up.
Location
1. Do not install on outside wall.
2. Do not install in areas with direct heat source.
3. Do no install near any air discharge grill.
4. Do not install in areas exposed to direct sunlight.
5. Ensure Controller has sufcient air circulation.
6. Ensure wall surface is at and clean.
Installation
1. Pull cables 15 cm ( 6” ) out from wall.
2. Align base and mark location of two mounting holes on wall.
3. Install anchors in wall.
4. Insert cable in central hole of base.
5. Insert screws in mounting holes on each side of base.
6. Strip each wire 1/4” ( 0.6 cm) from end.
7. Insert each wire according to wiring chart (next page).
8. Gently push excess wiring back into hole.
9. Gently align cover to top of base and snap in place from bottom.
10. Install security screw.
