SER8300 Series

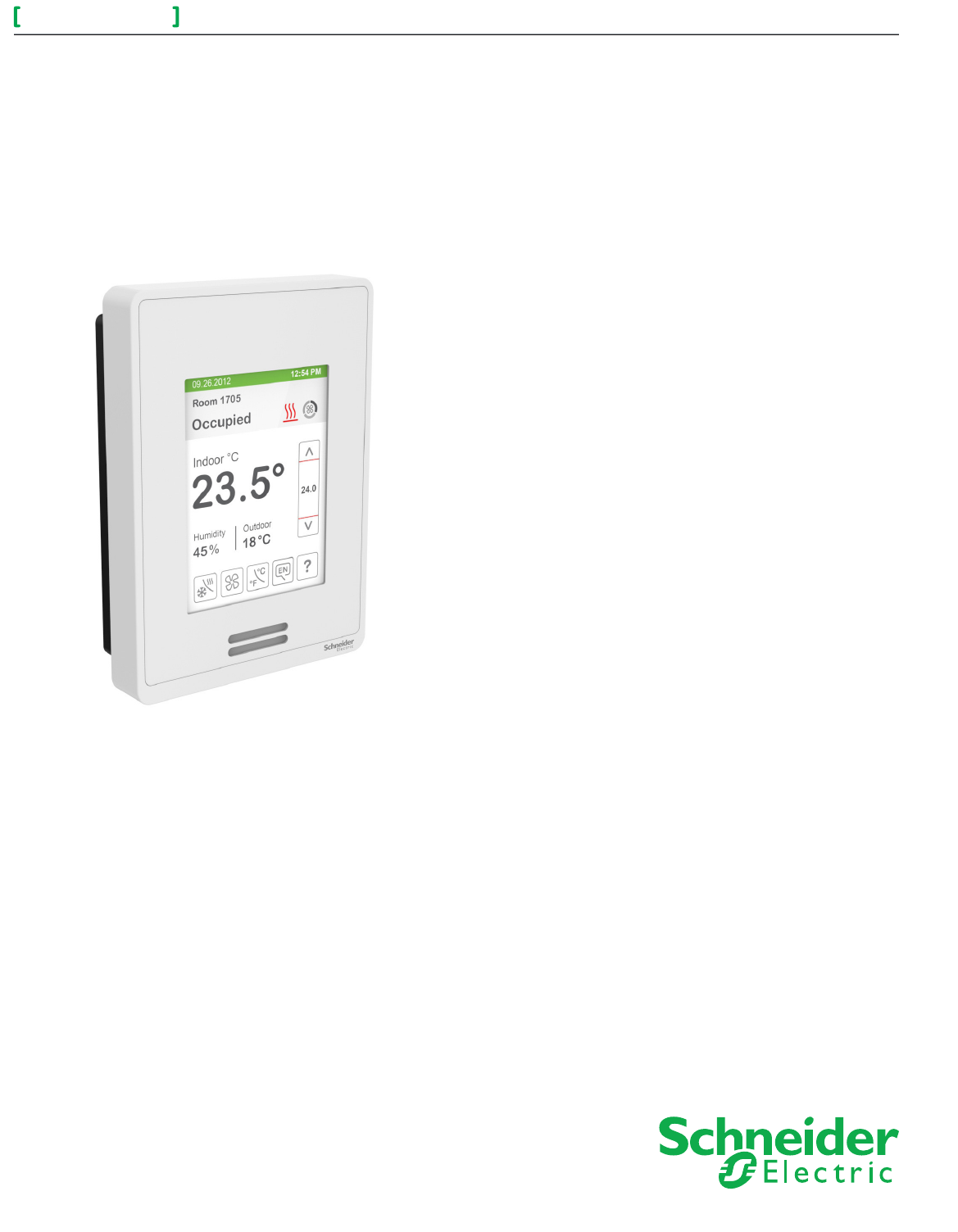

Terminal Equipment Controller with Optional PIR sensor

Installation Guide

Commercial and Hotel/Lodging HVAC Fan Coil Applications

CONTENTS

Installation 2

Location 2

Installation 2

Terminal, Identiﬁcation and Function 3

Communication wiring to SC3xxxX Relay Pack 3

BACnet

Communication Wiring (if applicable) 3

Network wiring topology 3

How to Enter Setup Screen 4

Setup Screen Display 4

Speciﬁcations 5

Drawing and Dimensions 6

Summary of content (7 pages)

PAGE 1
Room Controllers SER8300 Series Terminal Equipment Controller with Optional PIR sensor Installation Guide Commercial and Hotel/Lodging HVAC Fan Coil Applications CONTENTS Installation Location Installation Terminal, Identification and Function Communication wiring to SC3xxxX Relay Pack BACnet® Communication Wiring (if applicable) Network wiring topology How to Enter Setup Screen Setup Screen Display Specifications Drawing and Dimensions 2 2 2 3 3 3 3 4 4 5 6
PAGE 2
Installation Guide 2 SER8300 Series DISCLAIMER • The SER8000 series controller is only to be used in conjunction with the SC3000 line voltage switching relay pack. Together they are used as operating controls for high voltage fan coil units. • If replacing an existing Line Voltage FCU Controller, label the wires before removal of the Controller. • Electronic controls are static sensitive devices. Discharge yourself correctly before manipulating and installing the Terminal Equipment Controller.
PAGE 3
Installation Guide 3 SER8300 Series INSTALLATION Preparation • Open unit by pulling on bottom side of Terminal Equipment Controller (Fig. 1). • Read FCC ID and IC label installed in cover before installing any wireless product. • Ensure correct side of base faces up. Location 1. 2. 3. 4. 5. Do not install on outside wall. Do not install in areas with direct heat source. Do no install near any air discharge grill. Do not install in areas exposed to direct sunlight.
PAGE 4
Installation Guide 4 SER8300 Series TERMINAL, IDENTIFICATION AND FUNCTION Terminal Identification All SER83xxA Terminal Equipment Controller Terminal 4 Tx – Rx Communication Terminal 5 Power Hot 7.0 VDC Terminal 6 Power Common Terminal 13 BACnet + Terminal 14 BACnet - Terminal 16 BI 1 ( Configurable ) Terminal 17 BI 2 ( Configurable ) Terminal 18 Scom Only ONE SC3xxxX Relay Pack with remote monitoring inputs can be used under a single SER83xxA Controller.
PAGE 5
Installation Guide 5 SER8300 Series ENTER SET-UP SCREEN Touch and hold this point for 3 seconds to enter set-up mode Note: If a configuration/installer password is activated to prevent unauthorised access to the configuration menu parameters, a password entry prompt shows to prevent access to device configuration components.
PAGE 6
Installation Guide 6 SER8300 Series Controller power requirements 7.0 VDC +/- 10% 2.4 watts minimum Operating conditions 0 °C to 50 °C ( 32 °F to 122 °F ) 0% to 95% R.H. non-condensing Storage conditions -30 °C to 50 °C ( -22 °F to 122 °F ) 0% to 95% R.H. non-condensing Temperature sensor Local 10 K NTC type 2 thermistor Temperature sensor resolution ± 0.1 °C ( ± 0.2 °F ) Temperature control accuracy ± 0.5 ° C ( ± 0.
PAGE 7
Installation Guide SER8300 Series 7 120 mm (4.722”) DIMENSIONAL DRAWING © 2013 Schneider Electric. All rights reserved. 25 mm (0.990”) 86 mm (3.378”) Schneider Electric- Small Building Systems Tel. Americas: North Andover, MA 1-800-225-0962 Tel. Europe: Malmö, Sweden +46 40 38 68 50 Tel. Asia Pacific: Hong Kong +852 2565 0621 028-0418-01 www.schneider-electric.
