User's Manual Part 1

Chapter 1 WiFi Advisor Overview
About the WiFi Advisor app
WiFi Advisor Wireless LAN Analyzer User’s Guide
Page 8 22073751, Rev. 002 December 2014
About the WiFi Advisor app
The WiFi Advisor iPad host app communicates with the WiFi Advisor instrument to
run tests and manage devices. The application allows the user to set up WiFi tests,
communicates test setups to the WFED-300AC WiFi Advisor test device(s) over
Bluetooth, manages test execution, displays test results, and enables administra-
tion of job or work ticket related information.

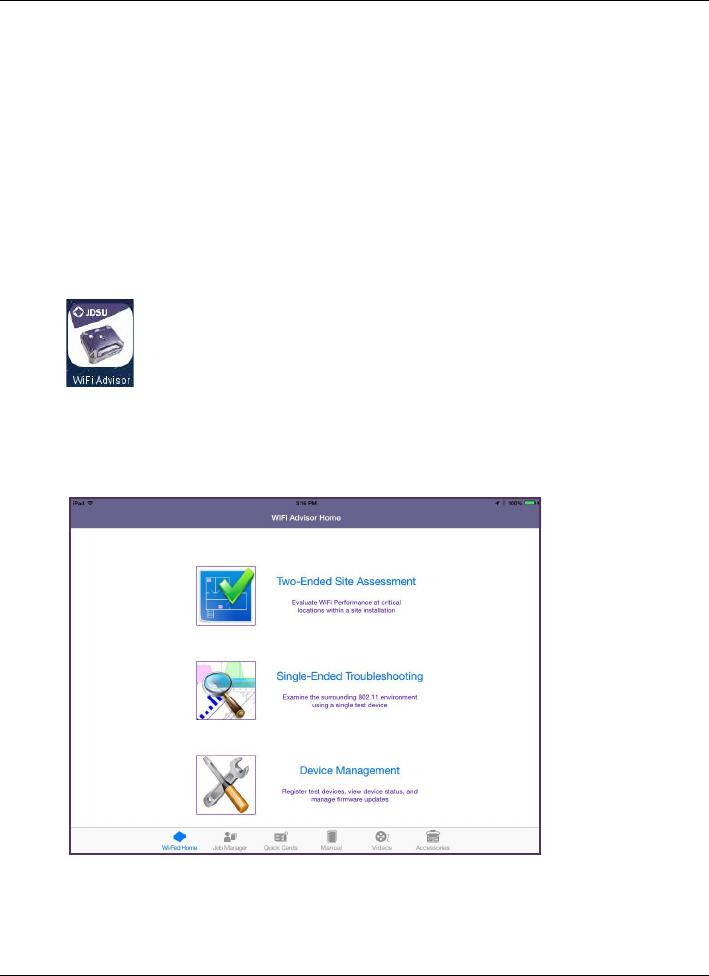

The icon for the WiFi Advisor is shown in Figure 5. To launch the app, tap the icon.
The Home screen appears, as shown in Figure 6.
Figure 5 WiFi Advisor iPad app icon
Figure 6 WiFi Advisor app Home screen
