Service manual

C-2

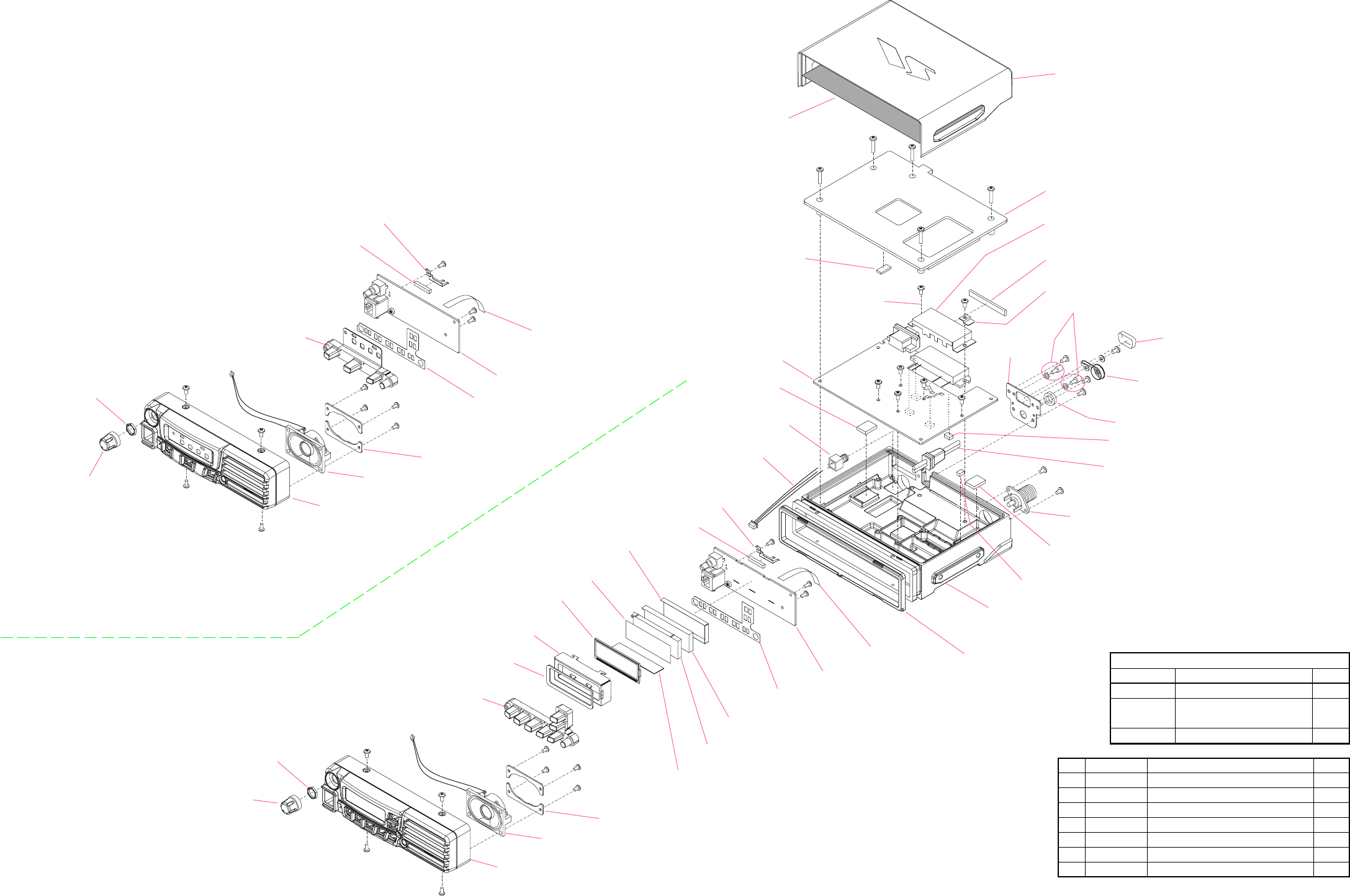

Exploded View & Miscellaneous Parts (Lot. 6~)
R0124501
SHIELD PLATE
M4090158
SPEAKER 2W/32-OHM
RA0559300
GROUND PLATE
RA048660B
PANEL ASSY
RA0530400
HOLDER PLATE (X 2pcs)
RA0487100
VOLUME KNOB
RA0560400
RUBBER KNOB
No. VXSTD P/N DESCRIPTION QTY.

U23206001 TAPTITE SCREW M2.6X6 3

U24209001 TAPTITE SCREW M2.6X9 4

U20205007 BINDING HEAD SCREW M2.6X5B 4

U24306002 TAPTITE SCREW M3X6NI 11

U02308002 SEMS SCREW SM3X8NI 2

U24316001 TAPTITE SCREW M3X16 5

U70003020 PLAIN WASHER FW3SUS 1
T9207042
WIRE ASSY
RA047580B
CHASSIS
RA0488100
SPONGE RUBBER (TOP)
RA0475900
CHASSIS TOP
RA0488000
TOP COVER
RF-UNIT
FRONT-D-UNIT
RA0487700
DIFFUSER SHEET
G6090153
LCD
RA0487400
LCD HOLDER
RA0487900
SPONGE RUBBER (WND)
RA0487600
REFLECTOR SHEET
S6000402
CONNECTOR COVER
RA0530500
SPONGE RUBBER (OU)
RA0488500
PAD (B)
RA0544700
PAD (A2)
RA0490800
CAP (PJ)
RA0498100
HOLDER
SUPPLIED ACCESSORIES
VXSTD P/N DESCRIPTION QTY.
Q0000075 BLADE FUSE ATC 15A 2
A06260004
MICROPHONE MH-25A8J
1
(VTX) W/ NEW CLIP
T9021015 DC CABLE 1
T9206634A
WIRE ASSY
T9206540
WIRE ASSY
P1091172
CONNECTOR
P1090654
CONNECTOR
























M4090158
SPEAKER
RA050040B
PANEL ASSY
RA0530400
HOLDER PLATE (X 2pcs)
RA0487100
VOLUME KNOB
RA0560500
RUBBER KNOB


RA0559300
GROUND PLATE
T9207042
WIRE ASSY


FRONT-C-UNIT
VX-4100 FRONT PANEL
VX-4200 FRONT PANEL
DSUB CONNECTOR ACCESSORY
EXTSP CONNECTOR ACCESSORY
VR5001 ACCESSORY
VR4001 ACCESSORY
RA0532600
PAD (C)
(~Lot. 2)
RA0487500
LIGHT GUIDE
RA0514300
LIGHT GUIDE (UNDER)
RA0487800
INTER CONNECTOR
RA0541000
PAD (D)
RA0544600
SPONGE RUBBER (SLD)
RA0579600
SPONGE RUBBER 2(SLD) (X 4pcs)
RA0576500
MYLAR SHEET
RA0563800
PACKING
RA0581700
PLATE (PCB)
RA0574500
SPONGE









RA0574500
SPONGE


RA0576500
MYLAR SHEET
Non-designated parts are available only as
part of a designated assembly.
