Service manual

C-1

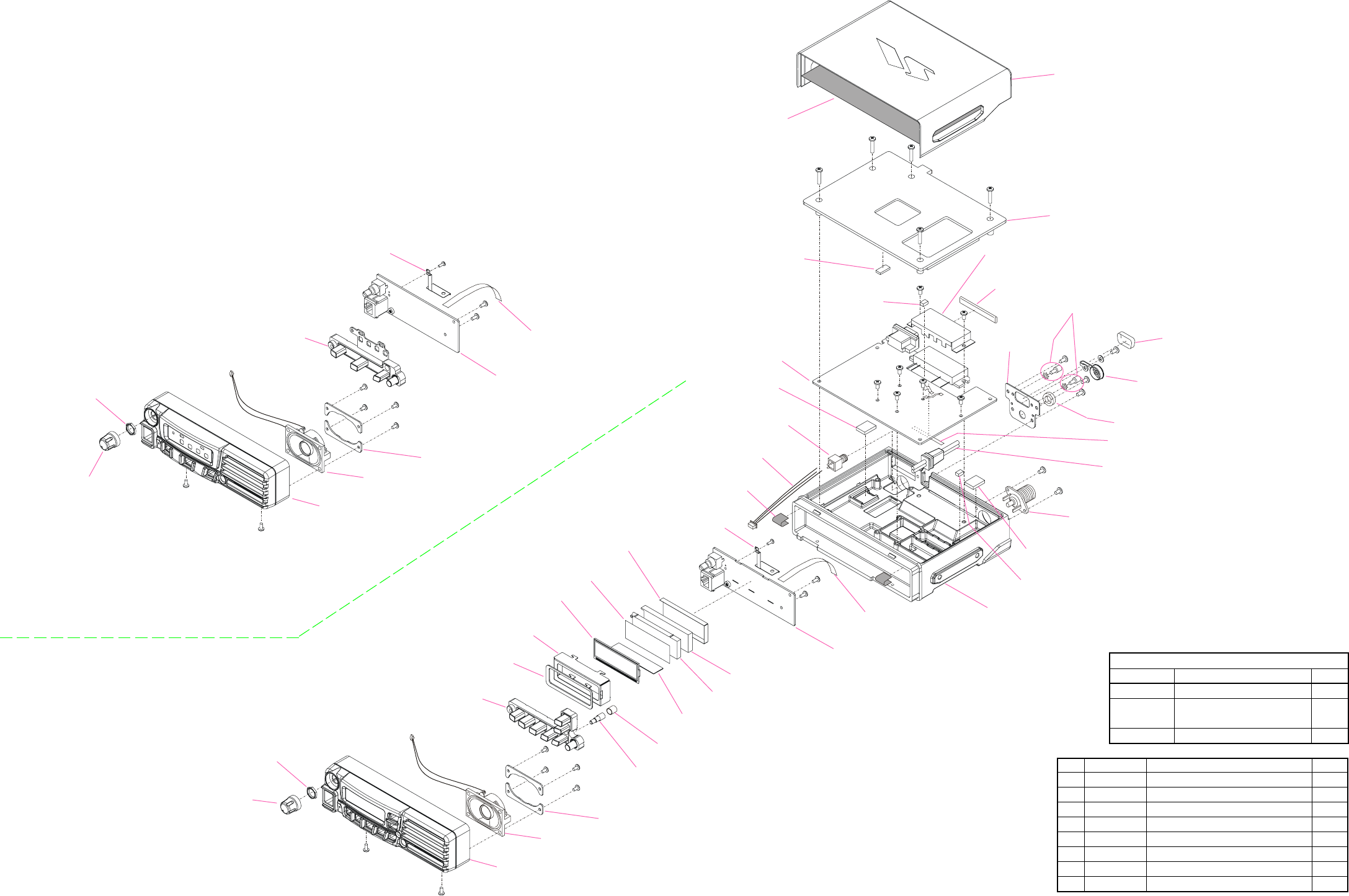

Exploded View & Miscellaneous Parts (Lot. 1~5)
R0124501
SHIELD PLATE
M4090158
SPEAKER 2W/32-OHM
RA0490100
GROUND PLATE
RA0486600
PANEL ASSY
RA0530400
HOLDER PLATE (X 2pcs)
RA0487100
VOLUME KNOB
RA0487200
RUBBER KNOB
No. VXSTD P/N DESCRIPTION QTY.

U23206001 TAPTITE SCREW M2.6X6 2

U23106001 TAPTITE SCREW M2X6 1

U20205007 BINDING HEAD SCREW M2.6X5B 2

U24306002 TAPTITE SCREW M3X6NI 11

U02308002 SEMS SCREW SM3X8NI 2

U24316001 TAPTITE SCREW M3X16 5

U70003020 PLAIN WASHER FW3SUS 1

U24208001 TAPTITE SCREW M2.6X8 4
T9207042
WIRE ASSY
RA0475800
CHASSIS
RA0488100
SPONGE RUBBER (TOP)
RA0475900
CHASSIS TOP
RA0488000
TOP COVER
RF-UNIT
FRONT-D-UNIT
RA0487700
DIFFUSER SHEET
G6090153
LCD
RA0487400
LCD HOLDER
RA0487900
SPONGE RUBBER (WND)
RA0487600
REFLECTOR SHEET
S6000402
CONNECTOR COVER
RA0530500
SPONGE RUBBER (OU)
RA0488500
PAD (B)
RA0488400
PAD (A)
RA0490800
CAP (PJ)
RA0498100
HOLDER
SUPPLIED ACCESSORIES
VXSTD P/N DESCRIPTION QTY.
Q0000075 BLADE FUSE ATC 15A 2
A06260004
MICROPHONE MH-25A8J
1
(VTX) W/ NEW CLIP
T9021015 DC CABLE 1
T9206634A
WIRE ASSY
T9206540
WIRE ASSY
P1091172
CONNECTOR
P1090654
CONNECTOR




























M4090158
SPEAKER 2W/32-OHM
RA0500400
PANEL ASSY
RA0530400
HOLDER PLATE (X 2pcs)
RA0487100
VOLUME KNOB
RA0500800
RUBBER KNOB






RA0490100
GROUND PLATE
T9207042
WIRE ASSY



FRONT-C-UNIT
VX-4100 FRONT PANEL
VX-4200 FRONT PANEL
DSUB CONNECTOR ACCESSORY
EXTSP CONNECTOR ACCESSORY
VR5001 ACCESSORY
VR4001 ACCESSORY
RA0535000
BLIND SHEET (x2 pcs)
RA0532600
PAD (C)
(~Lot. 2)
RA0487500
LIGHT GUIDE
RA0514300
LIGHT GUIDE (UNDER)
RA0487800
INTER CONNECTOR
RA0541100
TUBE(TXRX)
RA0535800
LIGHT GUIDE(TXRX)
RA0541000
PAD (D)
RA0544600
SPONGE RUBBER (SLD)
RA0539300
SHIELD SHEET
