Operating instructions

T H
T P / T H
120V AC Adapter
mV Valve
Black
Black
SIT HI / LO
Valve
Female
Male
ST1090
SIT valve wiring
120V AC Plug
120V AC
Blower
Receiver

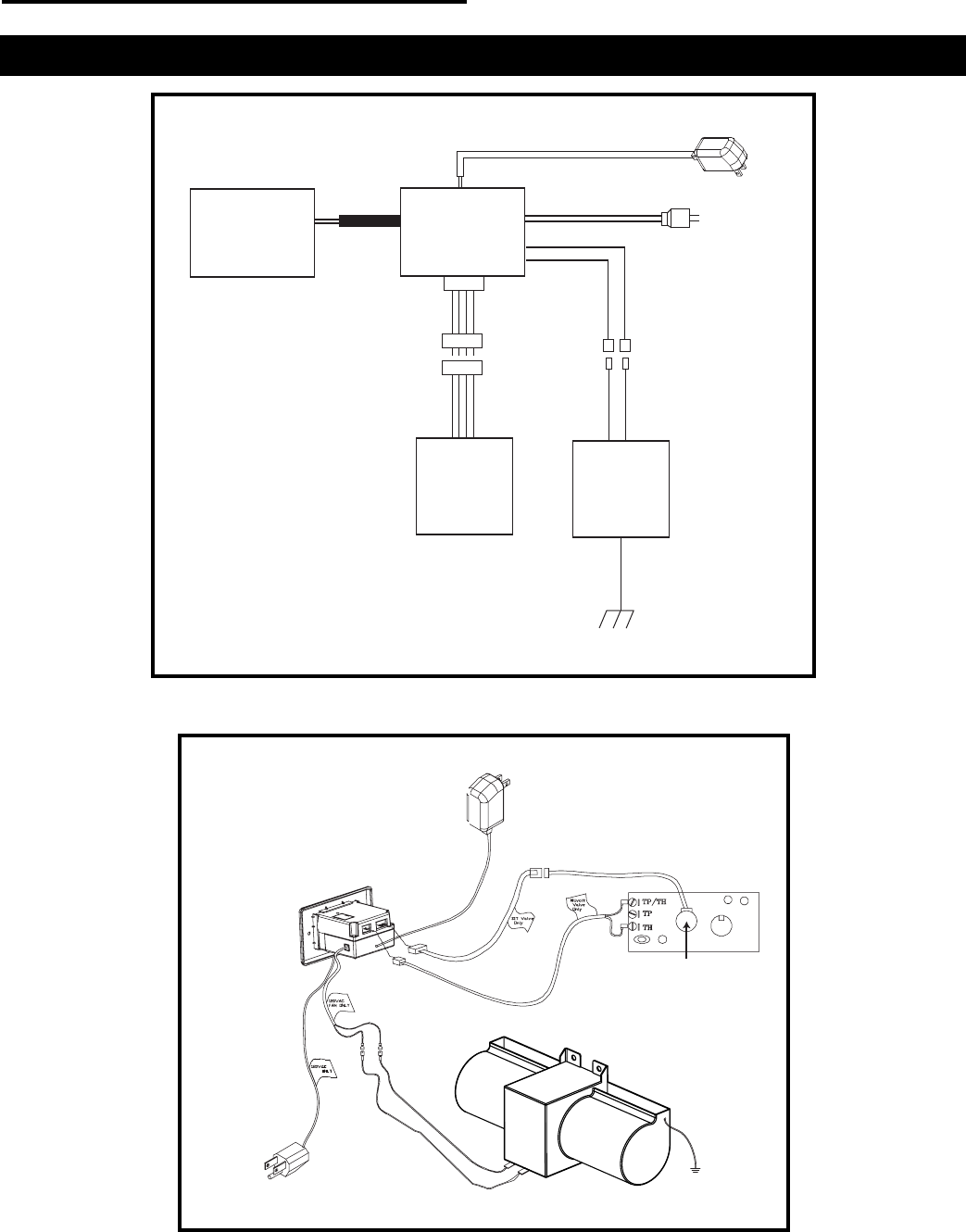

Figure 90 SIT Hi/Lo blower schematic.
ST1091a
120V AC Plug for Receiver
Receiver
120V AC Plug for Blower
Blower
SIT mV Valve
Hi/Lo Regulator
Tag: to blower
Tag
Tag
ST1092b
SIT valve schematic
Tag:
to 120V AC
ST1092b
Figure 91 SIT Hi/Lo blower wiring.
Wiring Diagrams - SDDVTCS
43
Stardance® Direct Vent/Natural Vent Gas Heater
20306760
