Operating instructions

ST919
tilt ember bed
6/07
Pem Studs
ST919

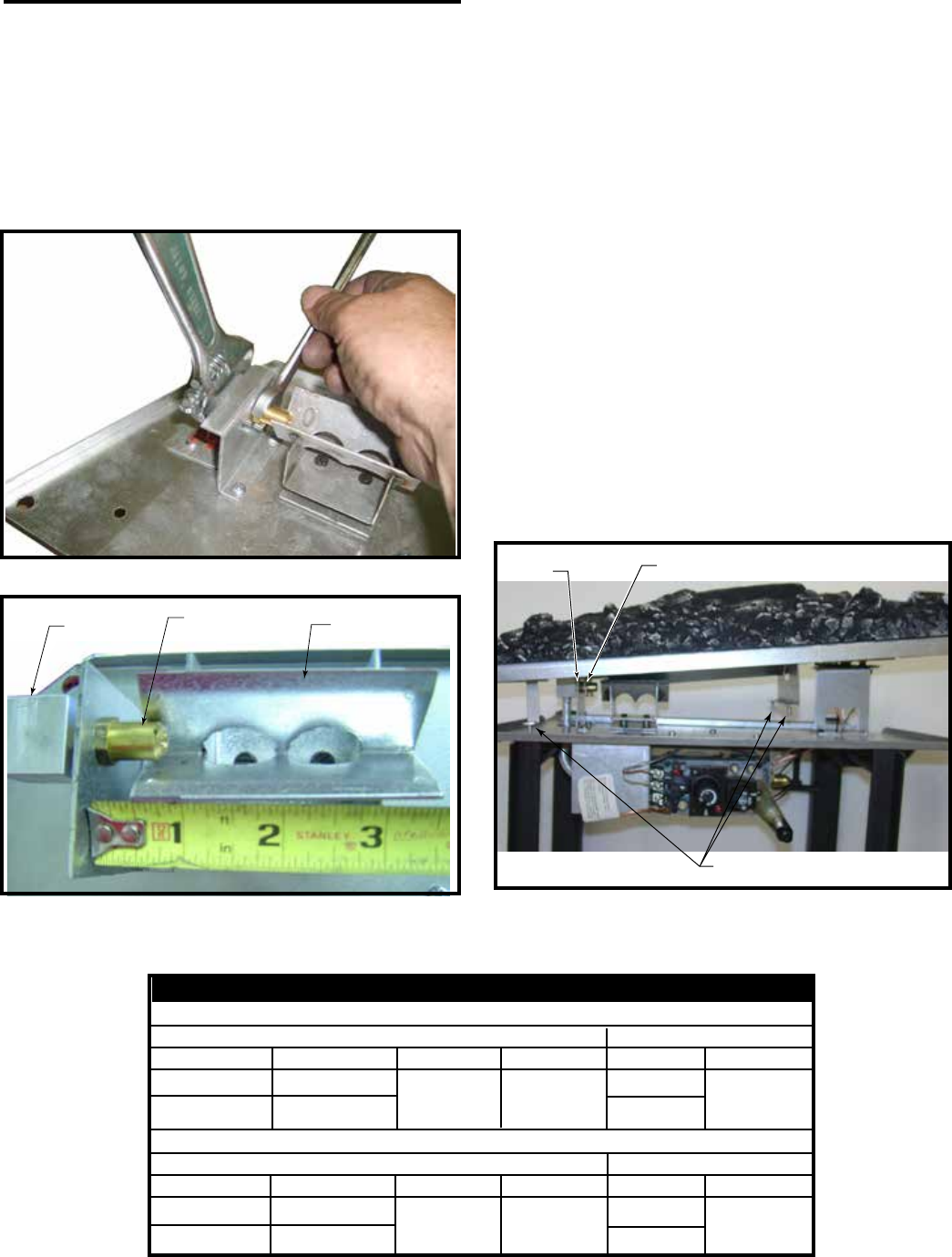

Figure 83 Tilt ember bed slightly to correctly place on venturi
and air shutter.
Orice
Bracket
Venturi Bracket
CO142
air shutter meas
6/07
Orice
Bracket
Orice
Air Shutter
CO142
Figure 82 The air shutter setting is 1/2” (13 mm) from the
orice bracket to the edge of the air shutter.
3. Remove injector orice from left burner bracket with a
1/2” wrench. Use a back up wrench to prevent damage
to the manifold. (Figure 81)
4. Install conversion orice. (Refer to Table 2)
5. The air shutter is factory set according to table on Page 7
and should not need adjustment. The air shutter opening
may be veried by measuring as shown in Figure 82.
All Models
Co145
back up wrench
7/07
CO145
Figure 81 Use two wrenches to avoid damage to manifold.
1. Replace burner making sure venturi on bottom of em-
ber bed aligns with orice and is seated properly on air
shutter assembly. (Figure 83) Make sure burner is slid
into place at a slight angle and opposite to how it was
removed. When burner is slid into place, the three (3)
pem studs should slide down through clearance holes
into the bottom of the control panel.
2. Thread and tighten 3/8” nuts back onto pem studs on
underneath side of control panel, reversing Step 1
shown in Figure 80.
3. Reinstall logs as per instructions in this manual.
4. Place conversion label supplied in the kit on the rating
plate.
5. Replace glass and stove front.
6. Restore gas to system and relight appliance according
to Lighting Instructions.
7. Leak check the system using a gas leak detector solu-
tion.
8. Relight the main burner in both the “HI” and “LO” posi-
tions to verify proper burner ignition and operation.
Conversion is complete.
Conversion to Natural Gas
Input (BTU/h)
Model Kit # Orice Part # Minimum Maximum
SDDVT 20012903 20,000
SDDVTCS 20300127
#38 / .101” 20009310
20,000
28,000
Table 2. Injector Orice Size Matrix
Conversion to LP
Input (BTU/h)
Model Kit # Orice Part # Minimum Maximum
SDDVT 20012735 20,000
SDDVTCS 20300126
#53 / .0595” 20007347
20,000
28,000
39
Stardance® Direct Vent/Natural Vent Gas Heater
20306760
