Operating instructions

Fuel Conversion Instructions
WARNING! This conversion kit shall be installed
by a qualied service agency in accordance with
the manufacturer’s instructions and all applicable
codes and requirements of the authority having ju-
risdiction. If the information in these instructions is
not followed exactly, a re, explosion or production
of carbon monoxide may result causing property
damage, personal injury or loss of life. The quali-
ed service agency is responsible for the proper
installation of this kit. The installation is not proper
and complete until the operation of the converted
appliance is checked as specied in the manufac-
turer’s instructions supplied with the kit.
CAUTION: The gas supply shall be shut off prior to
disconnecting the electrical power, before proceed-
ing with the conversion.
ST226b
attach gas line
6/07 djt
Gas Supply Inlet
Main Gas
Line
ST226a

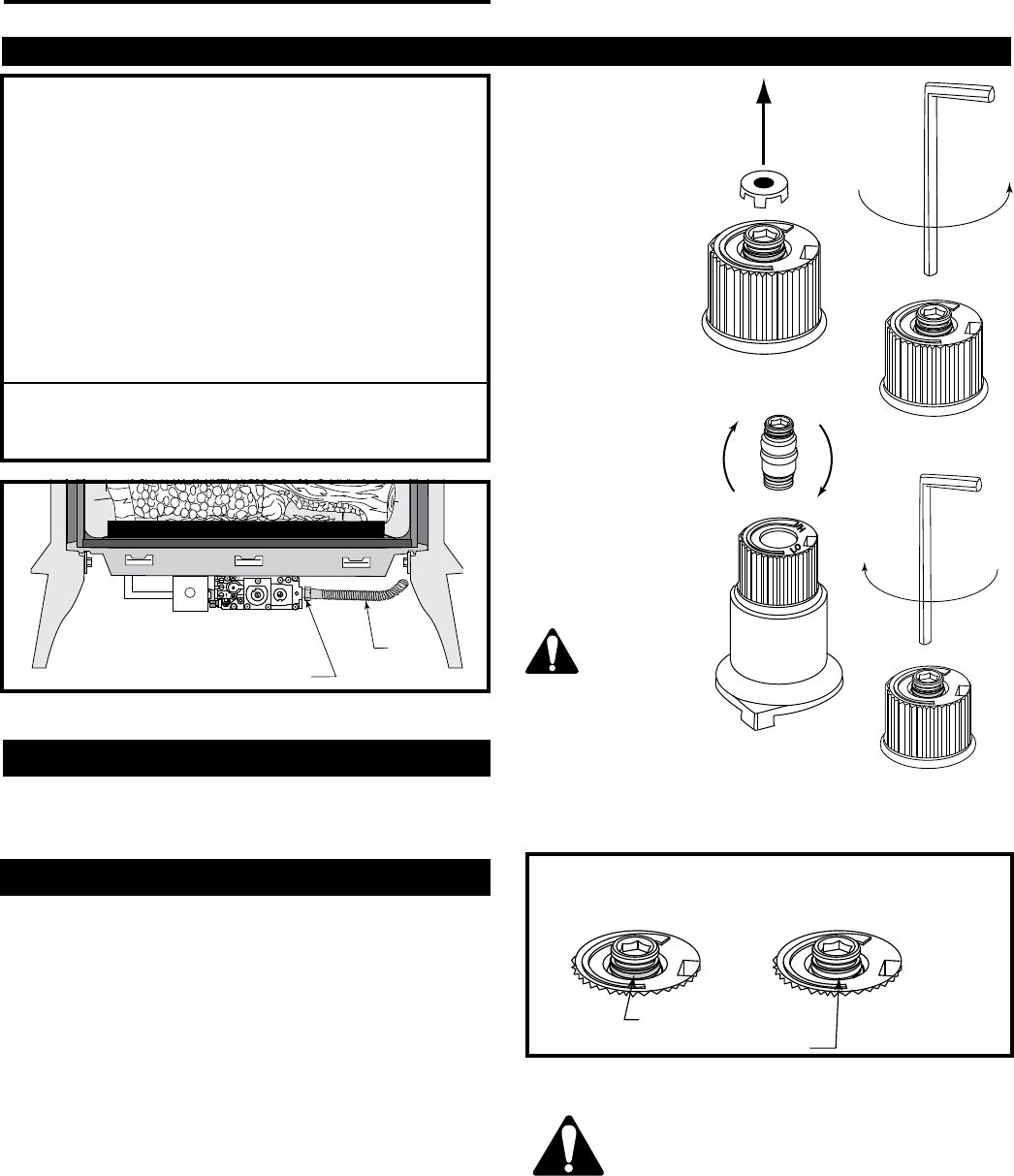

Figure 70 Attach the gas line to the left side of the valve.
Conversion Precautions
Before proceeding, turn control knob on valve to OFF
and turn gas supply OFF. Turn OFF any electricity that
may be going to the appliance.
Conversion Procedure
1. Remove the barrier screen and the stove front. Lift
stove front up and then swing bottom out and away to
disengage from the stove body.
2. Swing open the swiveling latches at the top left and
right corners of the glass frame.
3. Pull the top edge of the glass and frame assembly
away from the rebox face. Place the assembly out of
the way on a at, padded surface such as a counter
protected by a towel.
4. Remove the logset from the rebox.
Valve Conversion
SDDVT Series Models
1. Turn control knob to the OFF position, and shut off the
gas supply to the valve.
2. Allow the valve to cool to room temperature.
3. Remove the black protection cap by hand. (Figure 71)
4. Insert a 5/32”
or 4 mm Allen
wrench into the
hexagonal key-
way of the screw
(Figure 72), ro-
tate it counter-
clockwise until
it is free and ex-
tract it.
5. Check that the
screw is clean
and if necessary
remove dirt.
6. Flip the screw.
(Figure 73)
7. Using the Allen
wrench as shown
in Figure 74, ro-
tate the screw
clockwise and
tighten until snug.
WARNING: Do not
overtighten
the screw.
Recom-
mended to grip
the wrench by
the short side.
8. Verify that if the conversion is from
NG to LP, the screw must be reassembled with the red
o-ring visible. (Figure 74)
H
I
L
O
H
I
L
O
LP Configuration
Natural Gas
Configuration
CO141
O-ring configuration
6/07
Red O-ring Visible
Red O-ring NOT Visible
CO141
Figure 74
H
I
L
O
CO138
remove screw
6/07
Figure 71
H
I
L
O
CO139
Allen wrench
6/07
Figure
72
H
I
L
O
CO140
turn screw
6/07
Figure 73
H
I
L
O
CO139
Allen wrench
6/07
Figure 74
9. Replace the black protection cap.
WARNING: Check that also the pilot and
main burner injectors are appropriate for
the gas type.
