Operating instructions

LG495
SDDVT logs complete
6/07
Rear Log
Top Log
Left
Log
Right
Log
Ember Bed
Figure 49

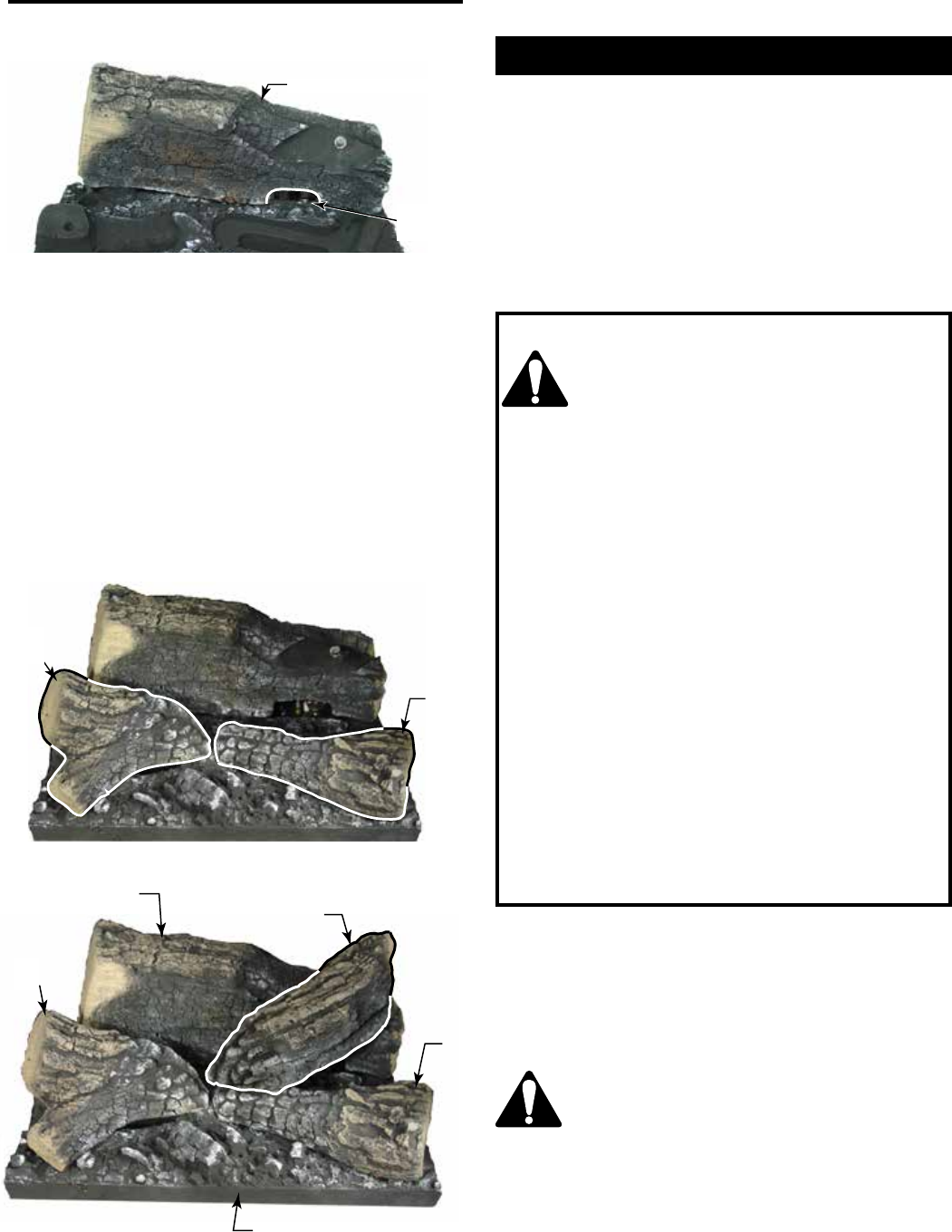

3. Install the left log by mating the hole on the bottom of
the log with the pin in the ember bed. (Figure 48) Posi-
tion the log over air hole in ember bed.
4. Install the right log by mating the notch on the bottom
of the log with the raised notch on the ember bed. (Fig-
ure 48) Position the log over air hole in ember bed.
5. Install top log by mating hole on bottom of log with lo-
cating pin on top right side of rear log. (Figure 49) Po-
sition log so it is angled down toward the area where
the front two logs meet.
LG494
left/right logs
6/07
Figure 48
Right
Log
Left
Log
Lg493
Rear log
6/07
Rear Log
Figure 48
Pilot
Assembly
CAUTION
This appliance should only be connected
by a qualied gas technician. Test to con-
rm manifold pressures as specied below.
The Stardance Heater and its individual shutoff
valve must be disconnected from the gas supply
piping during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5 kPa).
The Stardance Heater must be isolated from the
gas supply piping system by closing its individual
manual shutoff valve during any pressure testing
of the gas supply piping system at test pressure
equal to or less than 1/2 psig.
There must be a gas shutoff between the stove
and the supply.
In order to connect Natural Gas, use a tting with
3/8” NPT nipple on the valve side and 1/2” natural
gas supply line with an input of 28,000 BTUs at a
manifold pressure of 3.5” and minimum inlet sup-
ply for adjustment of 5.5” w.c.
In order to connect Propane, use a tting with 3/8”
NPT nipple on the valve side and 1/2” propane gas
supply line with an input of 28,000 BTUs at a mani-
fold pressure of 10.0” and minimum inlet supply
for adjustment of 11.0” w.c.
In the U.S.; Gas connection should be made in accor-
dance with current National Fuel Gas Code, ANSI Z223.1/
NFPA 54. Since some municipalities have additional local
codes, be sure to consult your local authority.
In Canada; consult the local authority and CSA-B149.1
installation code.
Always check for gas leaks with a mild soap
and water solution. Do not use an open ame
for leak testing.
Light the pilot according to the directions on Page 31, be-
fore going to the next step.
Connect the Gas Supply Line
Check the Rating Plate attached by a steel cable to the
rebox, to conrm that you have the appropriate rebox
for the type of fuel to be used. The appliance must only
use the gas specied on the rating plate, unless converted
using a Vermont Castings Fuel Conversion Kit. To convert
from Natural Gas to LP use Kit #20012735 or 20012904.
To convert from LP to Natural Gas use Kit #20012903 or
20012905.
Conversion instructions are provided with each kit and
beginning on Page 37 in this manual.
27
Stardance® Direct Vent/Natural Vent Gas Heater
20306760
