Install the Optional Fan - SDDVT Series
If you are installing the optional convection Fan Kit #2767
(FK26), continue here. If you are not installing a Fan Kit,
go to Page 16, Venting System Assembly.
1. The fan kit includes a Blower Assembly and a Rheo-
stat Assembly, connected by a cable. (Figure 14) The
Blower Assembly mounts to the bottom rear of the
stove, and the Rheostat mounts to the valve brack-
et to the left of the valve. The assembly includes a
‘snapstat’ which automatically turns the fan On (or Off)
above (or below) approximately 109°. The Rheostat
also provides a range of fan speed settings from Off
(which overrides the snapstat function) to High. Un-
pack and inspect the Blower assembly. Conrm the
WARNING
This appliance is equipped with a three-prong (ground-
ed) plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the
grounding prong from this plug.
installed)
• Insert the rheostat through the hole in the back of
the left side of the valve bracket, aligning the locator
pin with the smaller hole in that bracket.
• Thread the retaining nut onto the shaft of the rheo-
stat, tightening with a wrench. Do not overtighten.
• Attach the control knob to the rheostat shaft.
• Use the wire tie to secure the fan and rheostat wire
harnesses together.
ST473a
Fan parts
#2767 FK26
9/29/00
Not Used on
Stardance
Snapstat
Bracket
Snapstat/
Extension
Assembly
Rheostat
Assembly
Blower
Assembly
ST473a

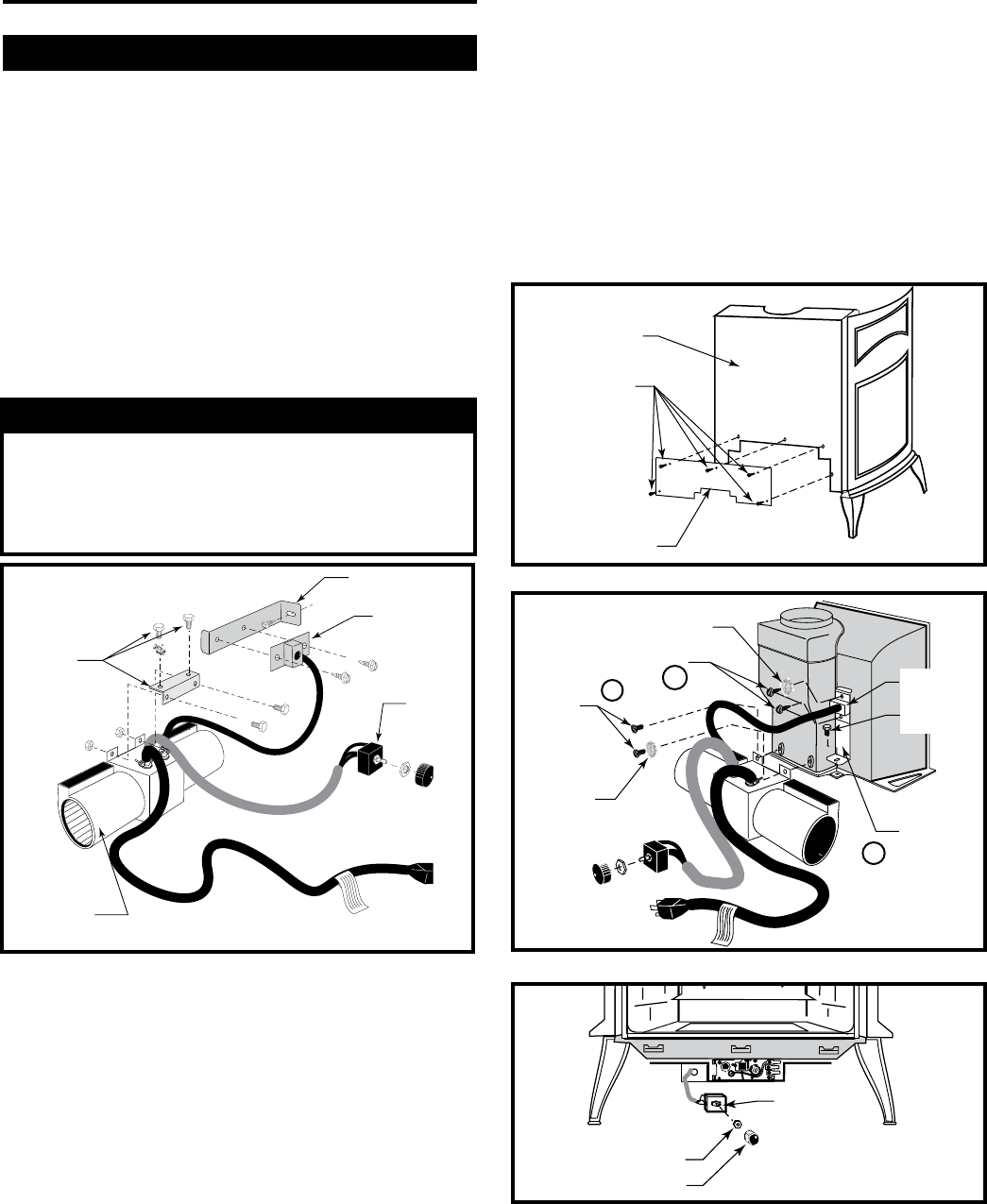

Figure 14 Fan kit components.
fan spins freely.
2. Remove the rear skirt insert panel at the bottom of the
Rear Skirt (Figure 15) and fasten the blower assembly
to the rebox back with the two Phillips pan-head bolts
originally installed in the rebox back. (‘1’, Figure 16)
3. Attach the snapstat assembly to the snapstat brack-
et with two sheet-metal screws. (‘2’, Figure 16) Attach
the snapstat bracket to the stove with a hex-head bolt
passing through the bracket and into the stove base.
(‘3’, Figure 16)
4. The rheostat control switch attaches to the left side of
the valve bracket at the front of the stove. (Figure 17)
• Remove retaining nut from shaft of rheostat. (if pre-
ST313
fk26
install fan kit
rear skirt insert
1/24/00
Rear Skirt
Sheet Metal
Screws
Rear Skirt
Insert
ST313
Figure 15 Remove rear skirt insert.
ST314
Fk26ce
attach fan
1/24/00
Star Washer
Sheet Metal Screws
Phillips
Pan Head
Bolts
Star
Washer
NOTE: Shown
without shell for
clarication
Snapstat
Bracket
Snapstat
1/4” - 20
Hex Bolt
3
2
1
ST314
Figure 16 Attach the fan assembly and the snapstat.
ST347a
JUV
FK28 
rheostat install
9/21/00
Rheostat Retaining
Collar
Rheostat Knob
ST347a
Figure 17 Attach the fan rheostat.
