Operating instructions

58
73D0024
KHLDV Series Gas Fireplace


1
2
3
5
6
12a,b
7a,b
8
730024

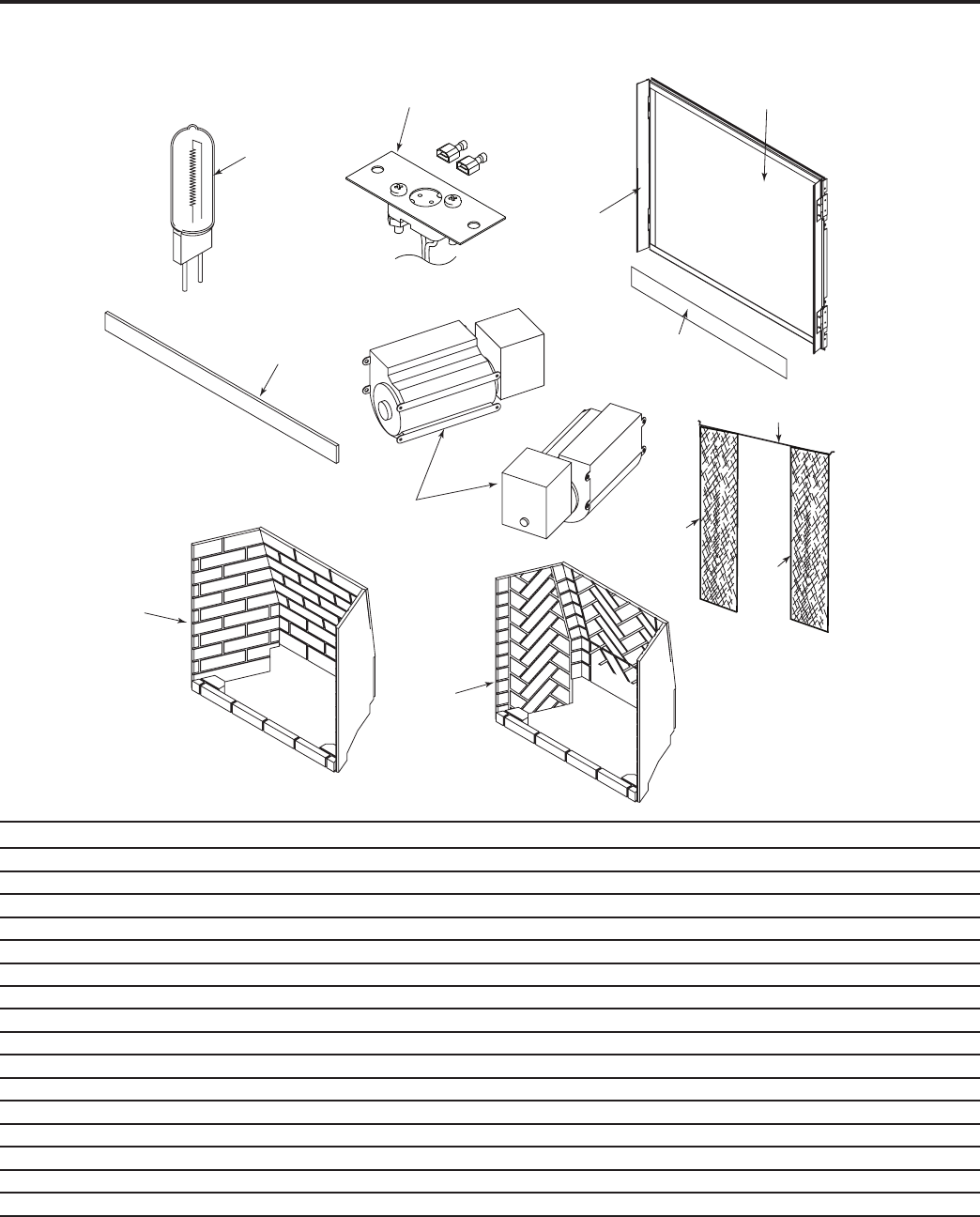

KHLDV firebox parts
11
10
10
9
     
1. Bulb (100 Watt) 2 73D0020 73D0020 73D0020
2. Bulb Socket 2 73D4521K 73D4521K 73D4521K
3. Glass Frame Assembly 1 73D1015K 73D0159K 20300592
4. Junction Box Assembly (not shown) 1 26D2128K 26D2128K 26D2128K
5. Light Lens (400/500 Series) 1 73D0022 73D0022 --
5. Light Lens (600 Series) 2 -- -- 73D4057
6. Panel, Access, Door 2 73D0029K 73D0029K 73D0092
7a. Firebrick Set - Tavern Brown 1 FBKHLDV400TB FBKHLDV500TB FBKHLDV600TB
7b. Firebrick Set - Cottage Red 1 FBKHLDV400CR FBKHLDV500CR FBKHLDV600CR
8. Firebrick Set - Old English Herringbone 1 FBKHLDV400OE FBKHLDV500OE FBKHLDV600OE
9. Screen Rod 1 73D0010 73D0010 20300611
10. Screen 2 73D0017 73D0017 20300612
11. Front Cover 1 73D0520 73D4524 20300600

12a. T-Stat Blower with Speed Control (Millivolt system) BLOTKHLTD BLOTKHLTD n/a
12b. SCS Blower w/ Time Delay BLOTKHLSC BLOTKHLSC BLOTKHLDVSC
