Operating instructions

73D0024
53
KHLDV Series Gas Fireplace

The ames from the burner should be visually checked
as soon as the heater is installed and periodically
during normal operation. In normal operation, at full
rate, and after operating for about 15 to 30 minutes,
the ame should be yellow and slightly taller than the
rear log. Figure 64
If the ame is blue and only in the center, turn off unit
and let cool. After unit is cool, remove logs and check to
make sure the back holes in the burner are not covered
with rock wool. If the back holes are clear, add more
rock wool to the center of the burner. Replace logs.
 The type of installation, vent system
conguration, and wind effects may cause the ame
patterns to vary.



Keep the control compartment, logs, and burner areas
surrounding the logs clean by vacuuming or brushing at
least twice a year. Make sure the burner porting, pilot air
opening and burner air opening are free of obstructions
at all times.


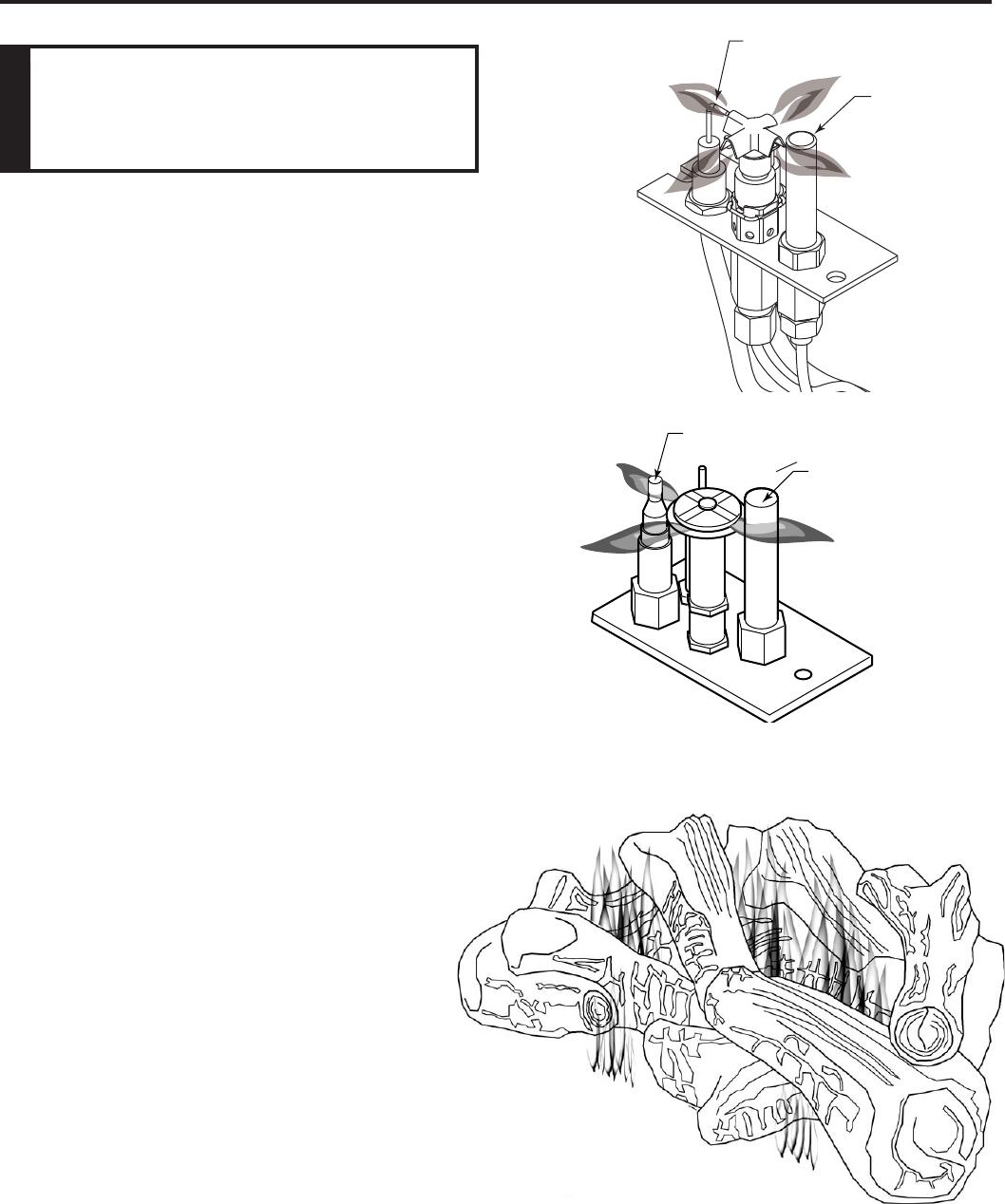

The ames from the pilot should be visually checked as
soon as the heater is installed and periodically during
normal operation. 
Figure 61. The
pilot ame has four distinct ames, one engulng the ther-
mopile, one engulng the thermocouple or sensor, and the
remaining reaching to the main burners.

Inspect area around the injector. Remove any lint or foreign
material with a brush or vacuum.
LG601
flame appearance
Figure 64 -
Burner Flame Appearance
LG601

      
     


Figure 63 -
Pilot Flame
Thermopile
Thermocouple
FP1943
pilot flame
FP1943
FP2568
pilot flame
Sensor
Thermopile
FP2568





