Operating instructions

73D0024
29
KHLDV Series Gas Fireplace




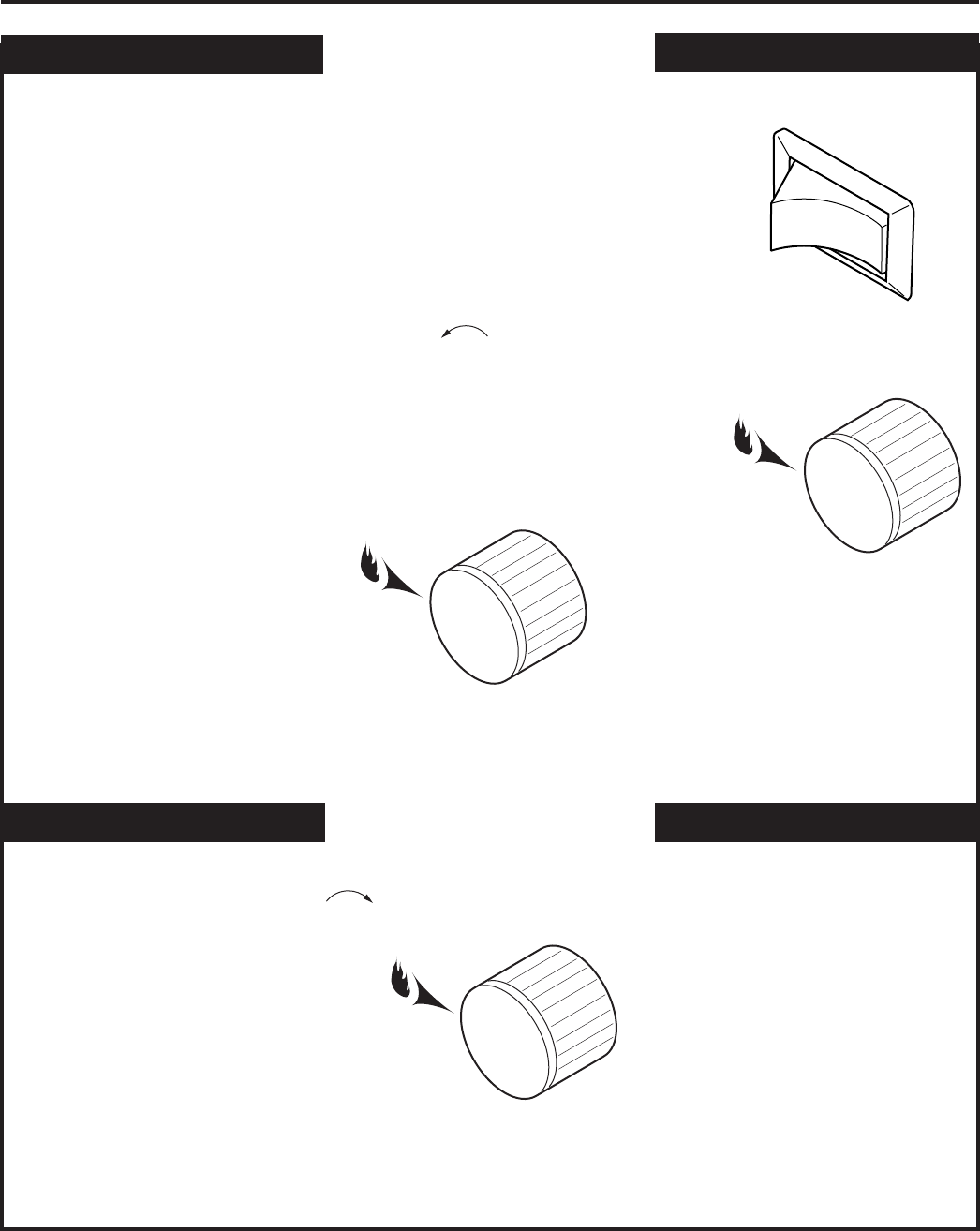

The “ON/OFF/RS” switch for the main burner can be found behind door of
the replace. This switch allows you to turn on and to turn off the main burner
without using the gas valve knob. Make sure the button is in the “ON” posi-
tion to light the main burner.

Depress and turn the knob counterclockwise to the “ON” position. It
will take less than four (4) seconds for the burner to ignite.

Depress and turn knob to pilot position to keep burner off while maintaining
the pilot light.
Depress and turn knob clockwise to “OFF” position.

Off Position
Pilot Position
PILOT
O
F
F
P
I
L
O
T
O
N
O
F
F
P
I
L
O
T
O
N
PILOT
FP1937
control knob on
PILOT
O
F
F
P
I
L
O
T
O
N
FP1935
control knob pilot
OFF
ON
RS
On Position
On/Off/RS Switch
