Operating instructions

73D0024
11
KHLDV Series Gas Fireplace

Consult local building codes before beginning the
installation. The installer must make sure to select the
proper vent system for installation. Before installing vent
kit, the installer must read this replace manual and vent
kit instructions.
Only a qualied installer/service person should install vent-
ing system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on
rooftops.
• Be aware of electrical wiring locations in walls and ceil-
ings.
The following actions will void the warranty on your vent-
ing system:
• Installation of any damaged venting component.
• Unauthorized modication of the venting system.
• Installation of any component part not manufactured or
approved by Vermont Castings Group.
• Installation other than permitted by these instructions.


    
   

  
    








 

       


     
      

 until the
ue penetrates the outside wall. 

      
   Z\x     
     



        
      

24" Vertical Rise
Required Before
Horizontal Run
**1”
FP2131
Vent pipe clearances
**1”
*3”
400/500 - 73”
(1854 mm)
600 - 79”
(2007 mm)
C
L
of pipe
* A minimum of 3" clearance to the top is required along horizontal length
until ue pipe penetrates outside wall.
** A minimum 1" clearance to combustibles permitted all around ue at
outside wall

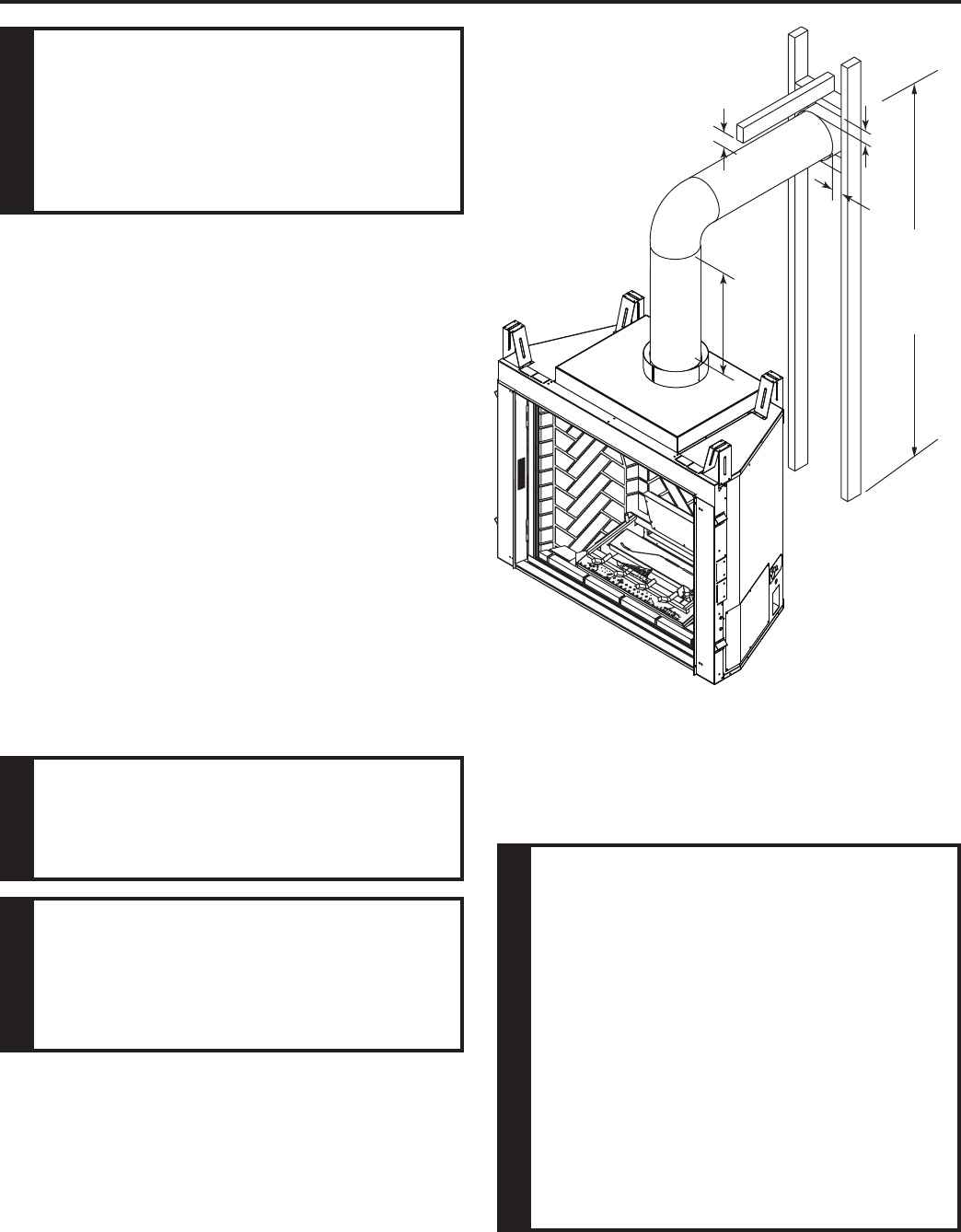

Figure 7 -
Combustible Clearances for Vent Pipe
FP2131
