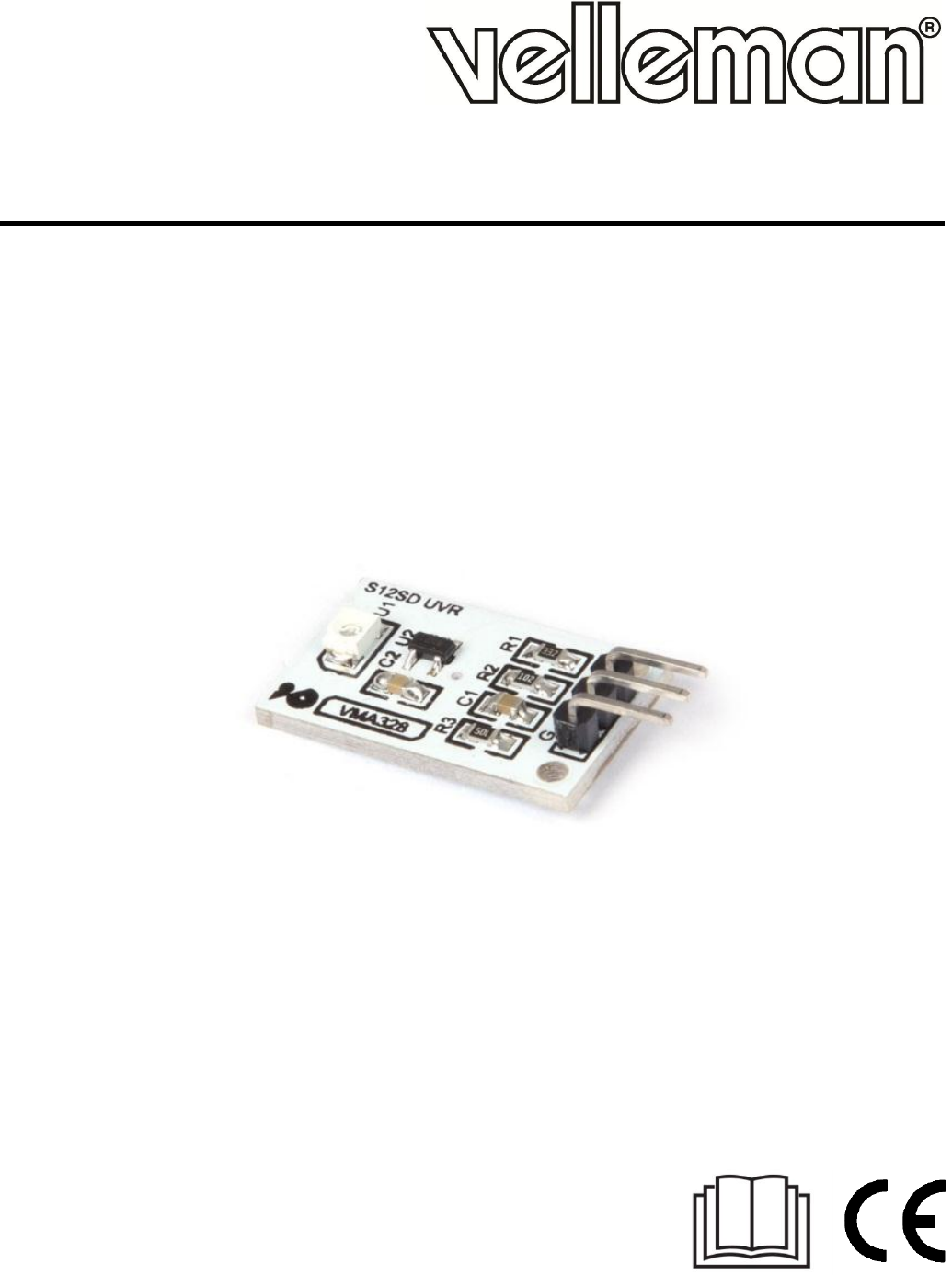

VMA328 UV LIGHT SENSOR GUVA-S12SD MODULE USER MANUAL
VMA328 USER MANUAL 1. Introduction To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
VMA328 5. Overview VMA328 Extend your light-sensing spectrum with this analogue UV sensor module. It uses a UV photodiode, which can detect the 240-370 nm range of light (which covers UVB and most of UVA spectrum). The signal level from the photodiode is very small, in the nano-ampere level, so we tossed on an opamp to amplify the signal to a more manageable volt-level. operating voltage: 3.3 V to 5 V output voltage: 0 V to 1 V (0-10 UV index) response time: 0.
VMA328 8. Example 2 // CODE BEGIN void setup() { Serial.begin(9600); } void loop() { float sensorVoltage; float sensorValue; sensorValue = analogRead(A0); sensorVoltage = sensorValue/1024*3.3; // Change 3.3 to 5 if the power supply of the VMA328 is 5V. Serial.print("sensor reading = "); Serial.print(sensorValue); Serial.println(""); Serial.print("sensor voltage = "); Serial.print(sensorVoltage); Serial.println(" V"); delay(1000); } // CODE END 9. Output Voltage/Readings vs.
Velleman® Service and Quality Warranty Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations.
