Bypass 72 is a complete level measuring system in a bypass tube,
complete with VEGAFLEX sensor.
Bypass 72 with VEGAFLEX sensor is immediately ready for operation
and requires no adjustment.
Depending on the process pressure or process temperature,
VEGAFLEX 61 and VEGAFLEX 66 sensors can be used in
combination with the bypass tube.
0 %
100 %
E
D
C
B
A
1
2
4
5
3
6

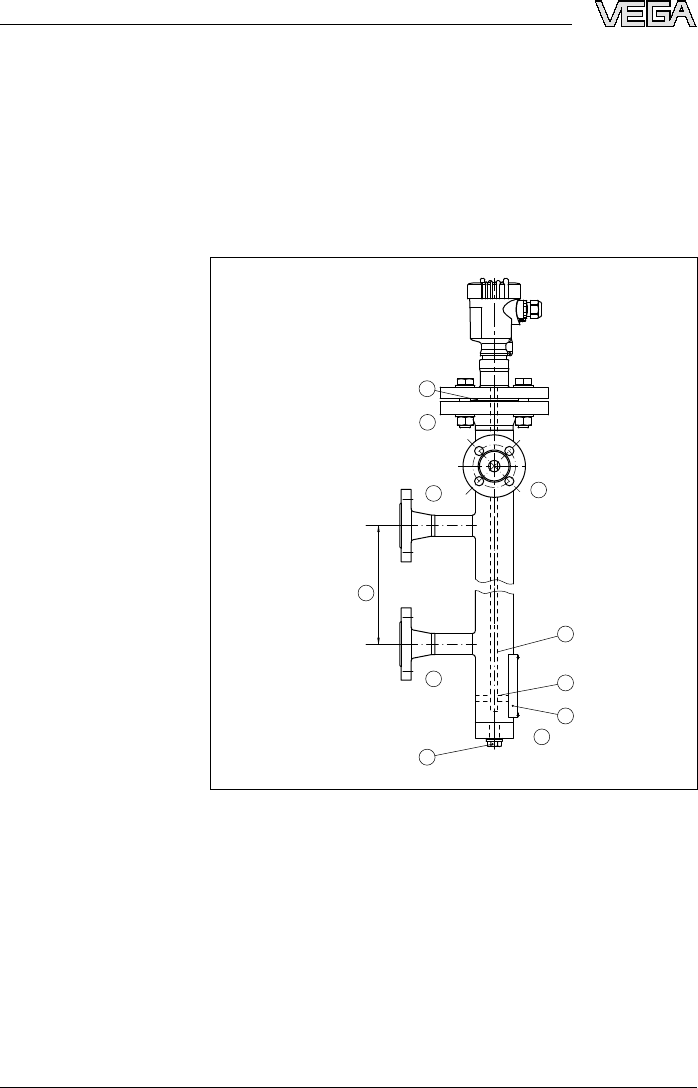

Fig. 1: Bypass
tube with VEGAFLEX
1 Dimensions tube center to tube center, 300 … 3000 mm (11.8 … 118 in)
2 Seal - measuring instrument flange
3 Electrode rod
4 Spacer
5 Type label
6 Closure rinsing connection, e.g. blind stopper
A Measuring instrument flange
B Connection flange, top
C Connection flange, bottom
D Rinsing air connection
E Ventilation connection - optional
