Technical data

7
ENGLISH
Engine VECTOR V12 ENT M11 / M18

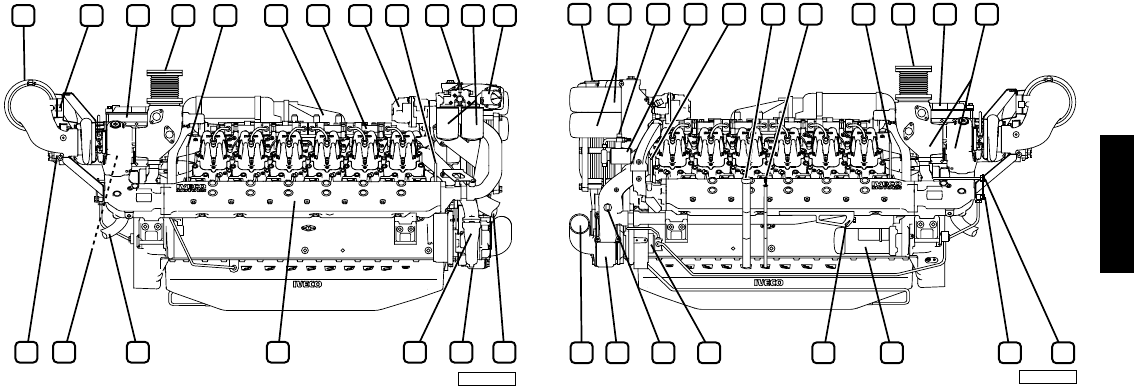

1. Air filter - 2. Air filter clogging sensor - 3. After-cooler heat exchang-
er - 4. Exhaust gas discharge - 5. Lifting U-bolt - 6. Air intake deparator/
manifold - 7. Common Rail fuel distributor -8. Thermostat valve loca-
tion - 9. Lifting U-bolt - 10. Fuel filters switchover - 11. Fuel filters -
12. Coolant level indicator - 13. Sea water drainage - 14. Engine cool-
ant discharge plug - 15. Engine coolant pump - 16. Cooled exhaust
manifold - 17. Sea water drainage from after-cooler - 18. Location of
disposable anode - 19. Oil vapour filter housing.
Engine VECTOR V12 ENT M11 / M18
1. Coolant tank pressurisation plug - 2. Oil filters - 3. Lubricant drain-
age tap - 4. Electric oil discharge pump - 5. Lifting U-bolt - 6. Lubricant
filler hole - 7. Oil dipstick - 8. Lifting U-bolt - 9. Exhaust gas discharge
- 10. Electronic Control Unit - 11. Cooled exhaust and turbocharger -
12. Fuel outlet manifold to tank - 13. Engine fuel inlet connector - 14.
Electric starter motor - 15. Accelerator position sensor - 16. Fuel
transfer pump - 17. Disposable anode - 18. Sea water pump - 19. Sea
water pump inlet/intake.
        
 
05_103_V


 
        
05_104_V
