Technical data

ENGLISH

Engine: VECTOR V08 ENT M75 / M12

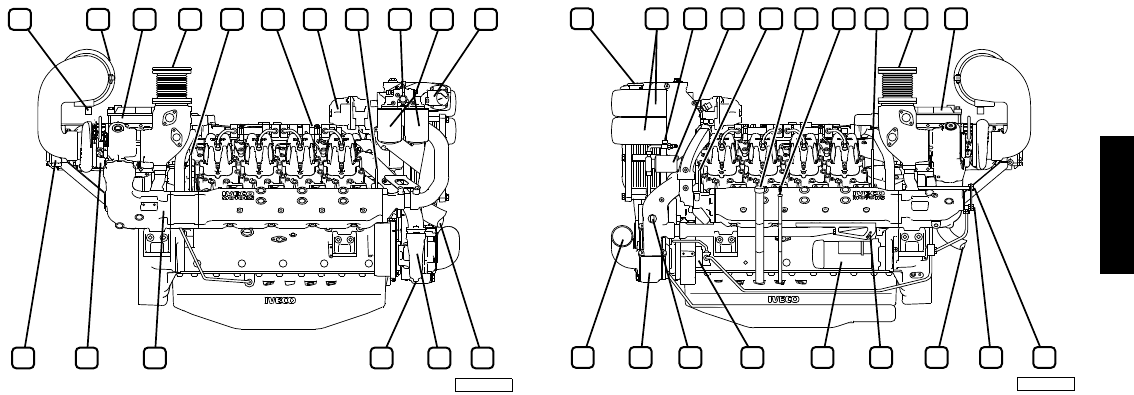

1. Air filter clogging sensor - 2. Air filter - 3. After-cooler heat exchang-

er - 4. Exhaust gas discharge - 5. Lifting U-bolt - 6. Common Rail fuel

distributor - 7. Thermostat valve location - 8. Lifting U-bolt - 9. Fuel fil-

ters switchover - 10. Fuel filters - 11. Coolant level indicator - 12. Sea

water drainage - 13. Engine coolant pump - 14. Engine coolant dis-

charge plug - 15. Cooled exhaust manifold - 16. Location of removable

anode - 17. Oil vapour filter.

Engine: VECTOR V08 ENT M75 / M12

1. Coolant tank pressurisation plug - 2. Oil filters - 3. Lubricant drain-

age tap - 4. Electric oil discharge pump - 5. Lifting U-bolt - 6. Lubricant

filler hole - 7. Oil dipstick - 8. Lifting U-bolt - 9. Exhaust gas discharge

- 10. Electronic control unit - 11. Fuel outlet connector to tank - 12.

Engine fuel inlet connector - 13. Sea water outlet - 14. Accelerator po-

sition sensor - 15. Electrical starter motor - 16. Fuel transfer pump -

17. Disposable anode - 18. Sea water pump - 19. Sea water pump in-

take.

        

  

05_102_V

        

 

05_101_V
