RECOGNISING ALARMS

IVECO MOTORS on-board control panels with analogue instruments

are fitted with an electronic module that includes the indicator lights

and the interface, timer and alarm storage circuits.

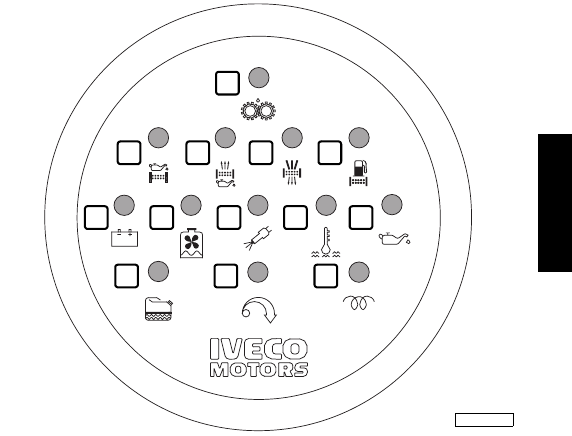

The figure illustrates the dial and the key indicates the meaning of the

alarm signals sent by all the indicator lights; some types of engine and

relevant equipment only make some of the above mentioned func-

tions available .

If the Boatyard uses different technical options there may be changes

to the above.

Operation

When the key switch is turned to position 8B the signals and alarms

module will perform an efficiency test on all the indicator lights, lasting

5 seconds, with the exception of the “Pre-lubrication”, “Pre-post heat-

ing”, “EDG system malfunction” indicators, and simultaneously the

beeper sounds.

It is possible to stop the beeper before the end of the test, by pressing

the relevant button.

During start-up and for the following 15 seconds, all alarm functions

are disabled; after this period, each alarm detected by the sensors pro-

vided on the engine will result in the relevant indicator flashing and a

simultaneous warning sound from the beeper. If the beeper is disabled

by pressing the relevant button, the indicator light will turn on without

flashing and the alarm will be stored until the engine is next stopped.

1. Maximum allowed rotation speed exceeded (on request) - 2. Wa-

ter in the fuel pre-filter - 3. Engine coolant level low - 4. Alternator mal-

function - *5. Oil filter blocked - * 6. Oil vapour filter blocked - *7. Pre-

lubrication in progress - 8. Air filter blocked - * 9. Fuel filter blocked -

10. Coolant temperature high - 11. Oil pressure low - *12. Pre-post

heating - 13. Malfunction in EDC electronic injection system.

*Alarm functions not available with standard setup.
