3 Detailed Description
20 APCD-LM043-4.0
EUM Antenna
For many EUM installations, you can use an indoor antenna. WaveRider recommends the
WaveRider directional antenna with switched-beam diversity. This antenna, shown in Figure
12, performs very well in cases where the radio path to the CCU is obstructed and/or where
there is significant multipath. The diversity antenna accepts a DC signal on the antenna cable
from the EUM, for beam pattern selection. The antenna comes with a mounting bracket and is
designed to mount vertically on walls or windows (using drywall screws for wall mounting or
suction cups for window mounting), or horizontally (on desks, for example, using the suction
cups).

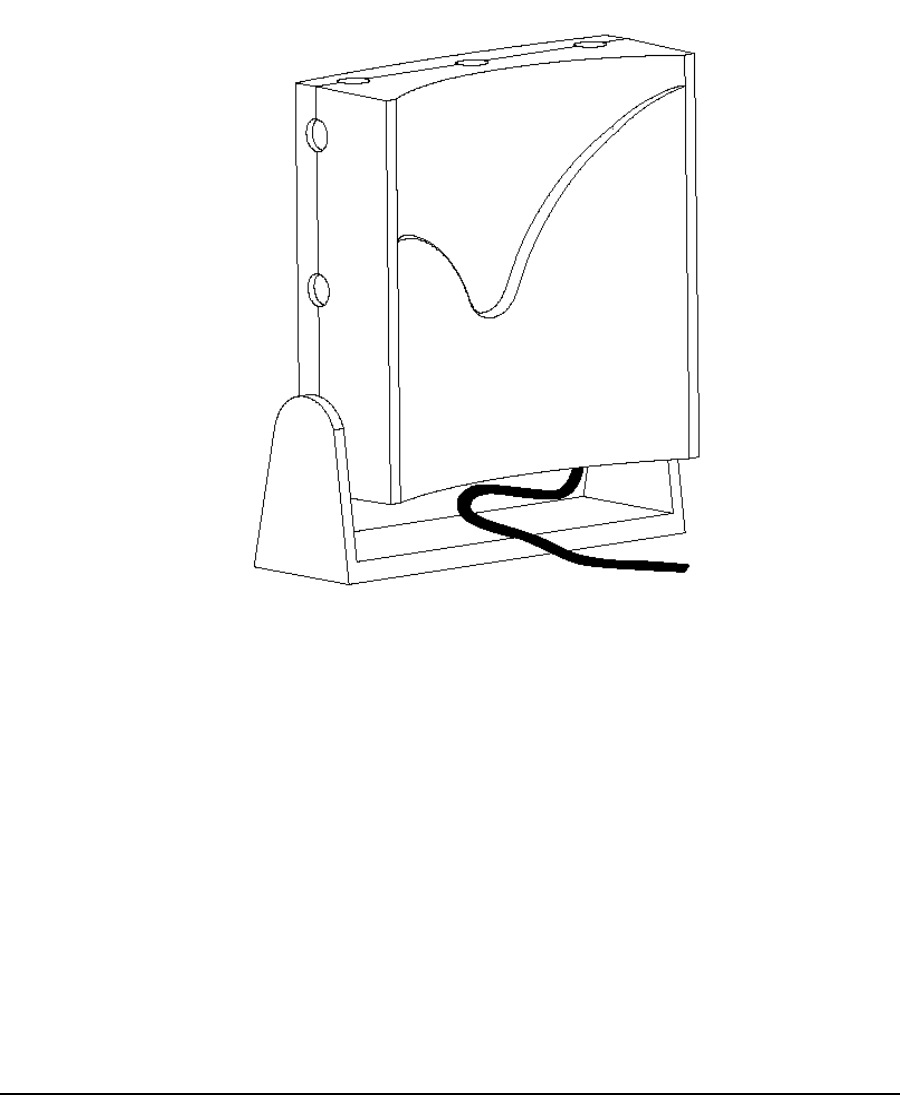

Figure 12 WaveRider Indoor Directional Antenna with Switched-beam Diversity
