User's Manual
Table Of Contents
- Contents
- Contents v
- Figures ix
- Tables xi
- Preface xv
- Appendix A Specifications 157
- Appendix B Factory Configuration 159
- Appendix C CommandLine Syntax 163
- Appendix D Antenna Guidelines 181
- Appendix E CCU/EUM Data Tables 183
- Appendix F Ping Commands 197
- Appendix G SNMP MIB Definitions 199
- Appendix H Operating Statistics 223
- Appendix I IP Plan — Example 241
- Appendix J Acronyms and Glossary 253
- Index 261
- Figures
- Tables
- Preface
- 1 Introduction
- 2 Quick Startup
- 3 Detailed Description
- 4 IP Network Planning
- 5 Radio Network Planning
- 6 Installation/Diagnostic Tools
- 7 Configuring the CCU
- 7.1 CCU and EUM Serial Number, MAC Address, and Station ID
- 7.2 Setting the CCU Password
- 7.3 Configuring the CCU RF Parameters
- 7.4 Configuring CCU IP Parameters
- 7.5 Configuring DHCP Relay
- 7.6 Configuring Port Filtering
- 7.7 Configuring the SNTP/UTC Time Clock
- 7.8 Configuring SNMP
- 7.9 Adding EUMs to the Authorization Table
- 8 Configuring the EUM
- 9 Installing the EUM
- 9.1 Before you Start the EUM Installation
- 9.2 Other EUM Programming Considerations
- 9.3 Installation Overview
- 9.4 Installation Procedures
- 9.4.1 Opening the Box
- 9.4.2 Turning off the End-user’s Cordless Phones
- 9.4.3 Choosing a Location for the EUM and Antenna
- 9.4.4 Connecting the EUM Components
- 9.4.5 Conducting a Preliminary Check of the EUM
- 9.4.6 Positioning the Antenna
- 9.4.7 Mounting the Antenna
- 9.4.8 Connecting the End-user’s PC
- 9.4.9 Obtaining Valid IP Addresses for the End-user’s PC
- 9.4.10 Testing the Data Link
- 9.4.11 Configuring the Browser Application
- 9.4.12 Completing the Installation
- 9.4.13 Baselining the Installation
- 9.4.14 Troubleshooting
- 10 Maintaining the Network
- 11 Monitoring the Network
- 12 Troubleshooting
- 13 Specialized Applications
- Appendix A Specifications
- Appendix B Factory Configuration
- Appendix C CommandLine Syntax
- Appendix D Antenna Guidelines
- Appendix E CCU/EUM Data Tables
- Appendix F Ping Commands
- Appendix G SNMP MIB Definitions
- MIB-II Elements Supported from RFC-1213
- WaveRider CCU Enterprise MIBs
- CCU Base MIB
- CCU General Information Group
- CCU Radio Configuration Group
- CCU Radio Statistics Group
- CCU Radio General Statistics Group
- CCU Radio Driver Statistics Group
- CCU Radio MAC Statistics Group
- CCU Ethernet Statistics Group
- CCU Modem Information MIB
- CCU Registration Information MIB
- CCU Registration Table
- CCU Authorization Information MIB
- CCU Authorization Table
- CCU RFC MIB-II Traps
- WaveRider EUM Enterprise MIBs
- EUM RFC MIB-II Traps
- Appendix H Operating Statistics
- Appendix I IP Plan — Example
- Appendix J Acronyms and Glossary
- Index

3 Detailed Description
14 APCD-LM043-4.0
Network Access Point (NAP)
The NAP provides the Internet connection point for one or more CAPs. An LMS4000 system
can have more than one NAP. The number of NAPs depends on the geographical layout of
the LMS4000 system and the location of available Internet access points. A single NAP can
provide Internet connection for one CAP, or several CAPs, each either colocated with the NAP
or connected to the NAP over backhaul facilities.

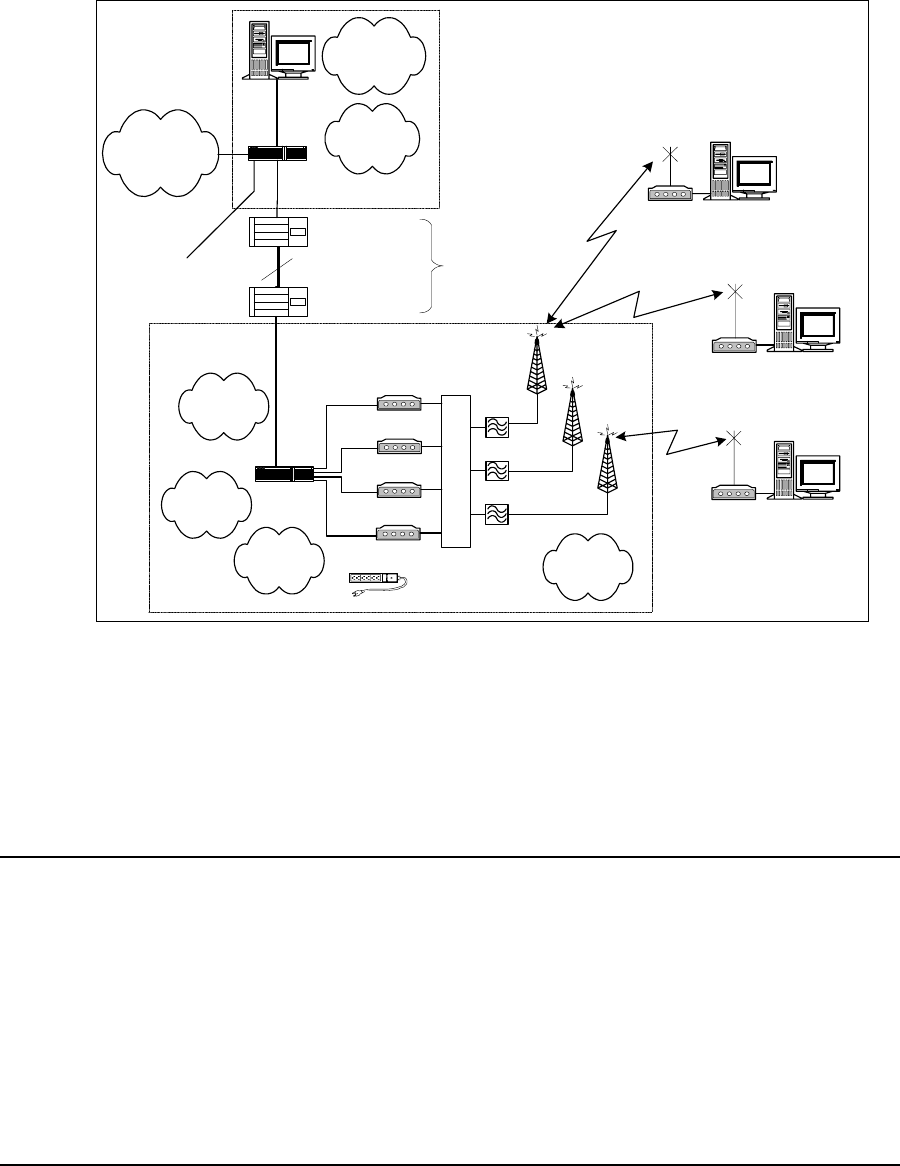

Figure 6 LMS4000 System
The following sections discuss the operation of the LMS4000 900 MHz Radio Network, of
which the CCU and EUM are the key components.
3.2 Communications Access Point
3.2.1 Key Components
The following are key components of the Communication Access Point:
• CCU
•Cavityfilters
• Lightning arrestors
NMS Station
Router
Internet
EUM
Backhaul (NCL1170,
for example)
To Other
CAPs
Network and
Equipment
Management
10/100BaseT
-Subscriber
Management
-Billing Data
- Authorization
- Registration
Layer 3
-Switching
- Routing
NAP
CAP
Routing to/from
Internet
EUM
- Authorization
- Registration
UPS
Radio Control
- Configuration
- Redundancy
CCU
CCU
Back-up CCU
CCU
Antenna
Antenna
Antenna
Cavity Filters
RFSM
Not part of
LMS4000
Switch
10BaseT
End-user PC
EUM
End-user PC
EUM
End-user PC
